Troubleshooting: EL 2.1

This page contains flowcharts which are describing the way of troubleshooting different kind of events for Enapter Electrolyser.

TIP

This page and flowcharts are constantly improved based on feedback and changes in hardware or software. Feel free to contact support@enapter.com for any questions or proposals.

• FP_01
• FP_03
• WP_04
• WR_10
• WR_20
• FR_10
• FR_20
• FR_50
• FR_51
• FR_52
• FR_40
• WR_21
• WR_22
• WR_51
• WR_52
• WR_53
• FS_01
• FS_10
• WS_22
• WS_30
• FT_10
• WT_20
• ET_10
• WU_10
• EU_10
• EX_01
• FX_02
• FX_04
• FX_05
• FX_07
• FX_08
• FX_09
• FX_10
• FX_11
• FX_30
• FX_31
• FX_32
• FX_33
• FX_34
• FX_35
• FX_36
• FX_37
• FX_39
• FX_40
• FF_10
• FL_01
• WL_10
• WO_10
• WO_20
• FO_30

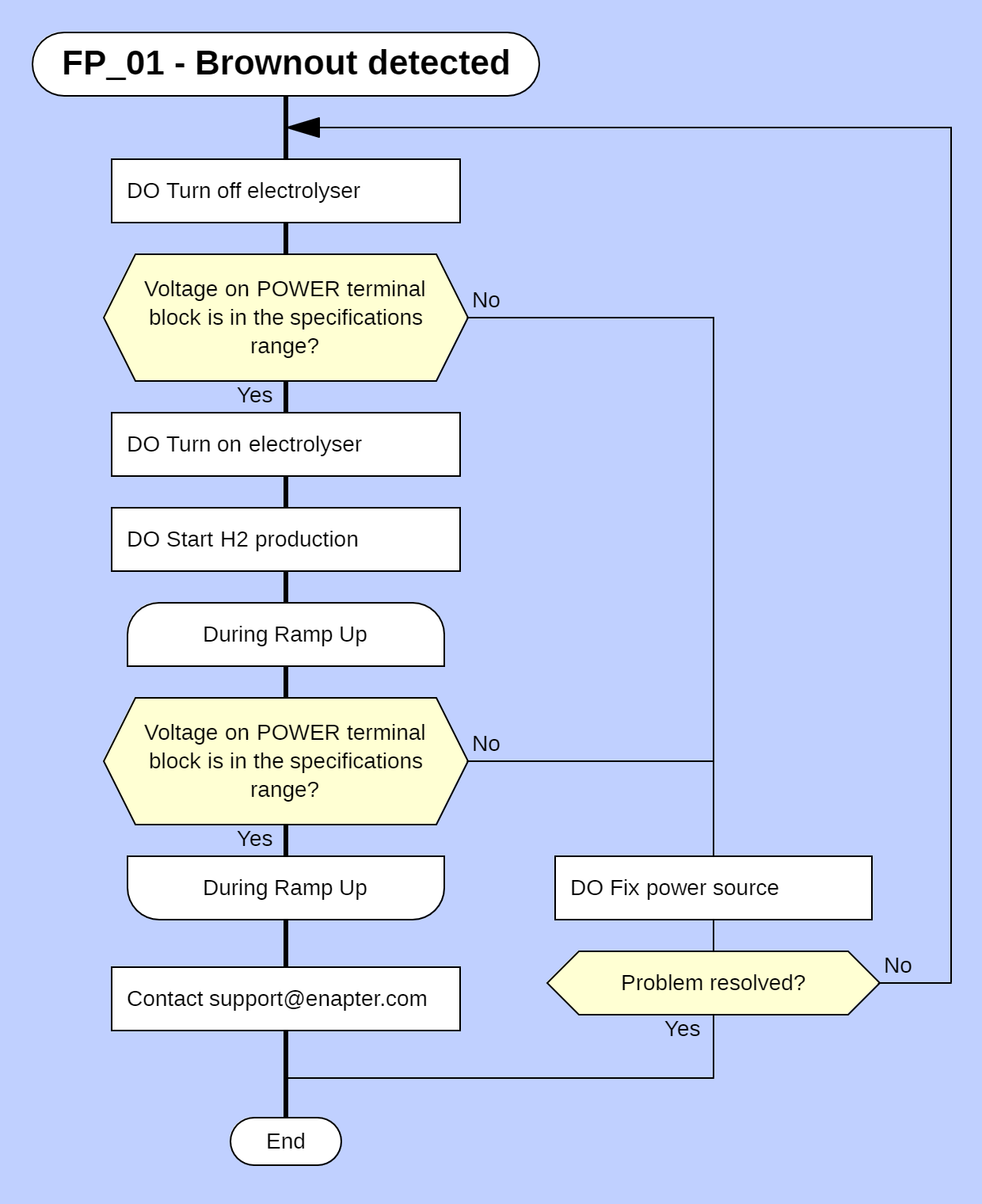

FP_01

FP_03

WP_04

WR_10

WR_20

FR_10

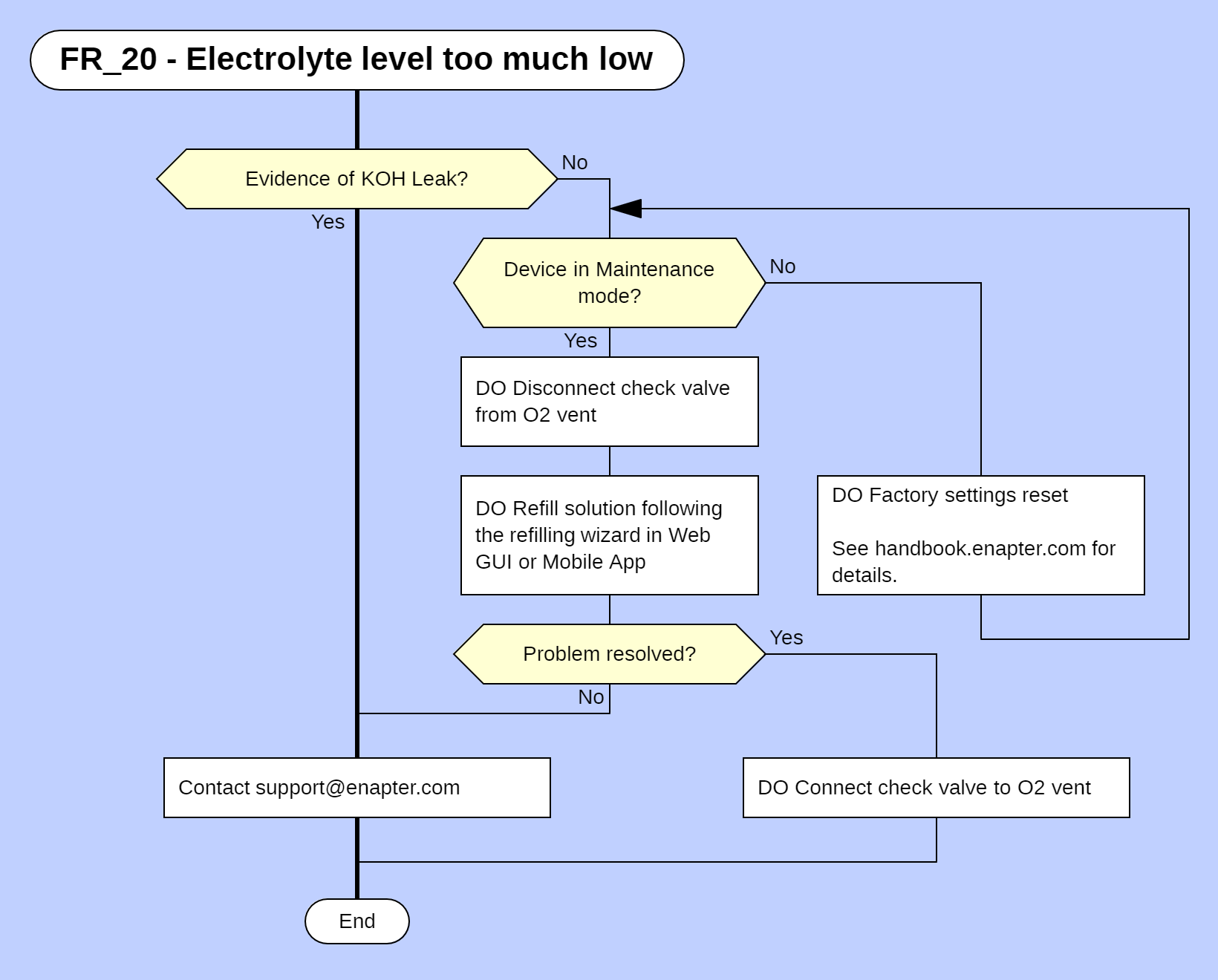

FR_20

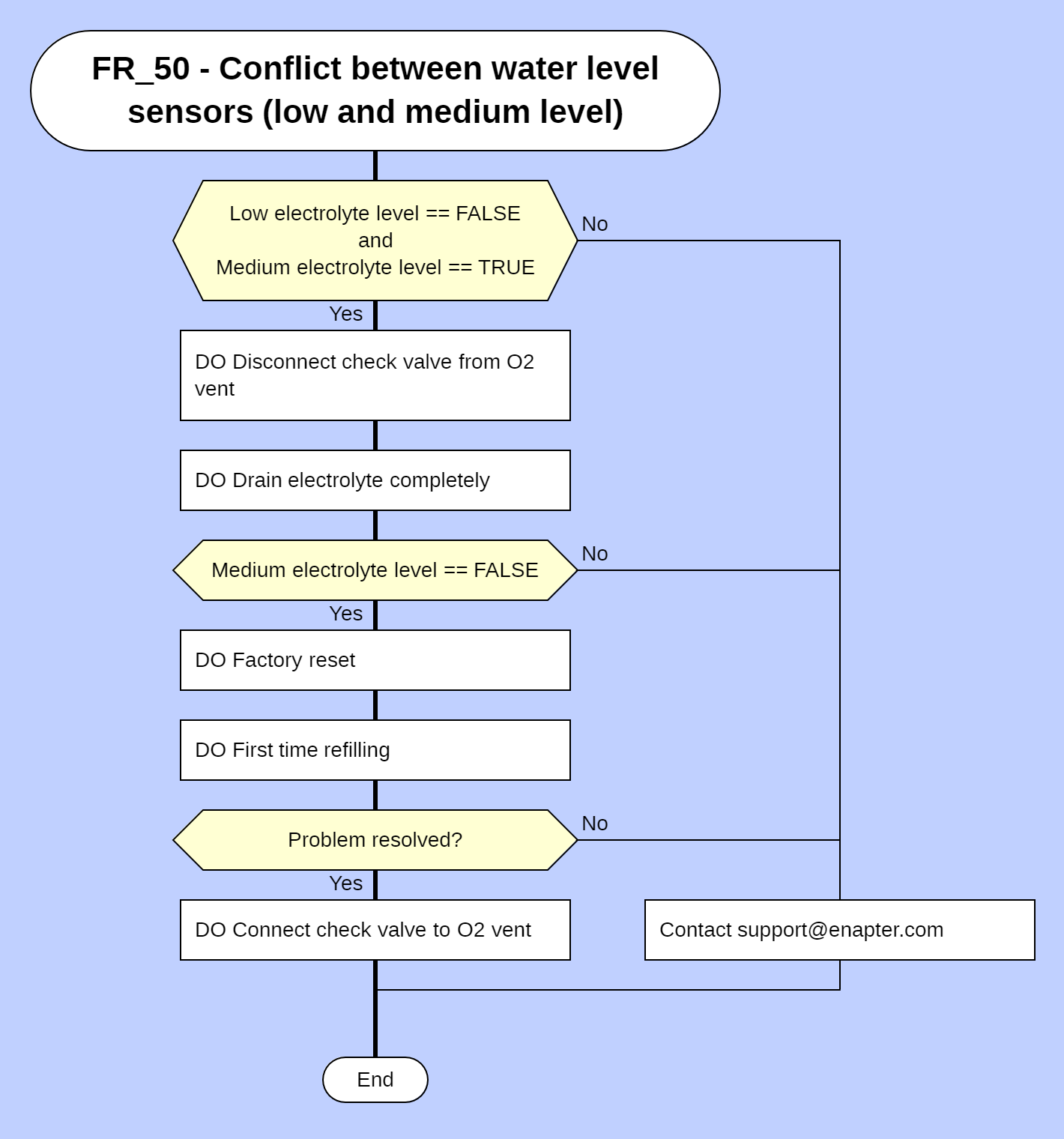

FR_50

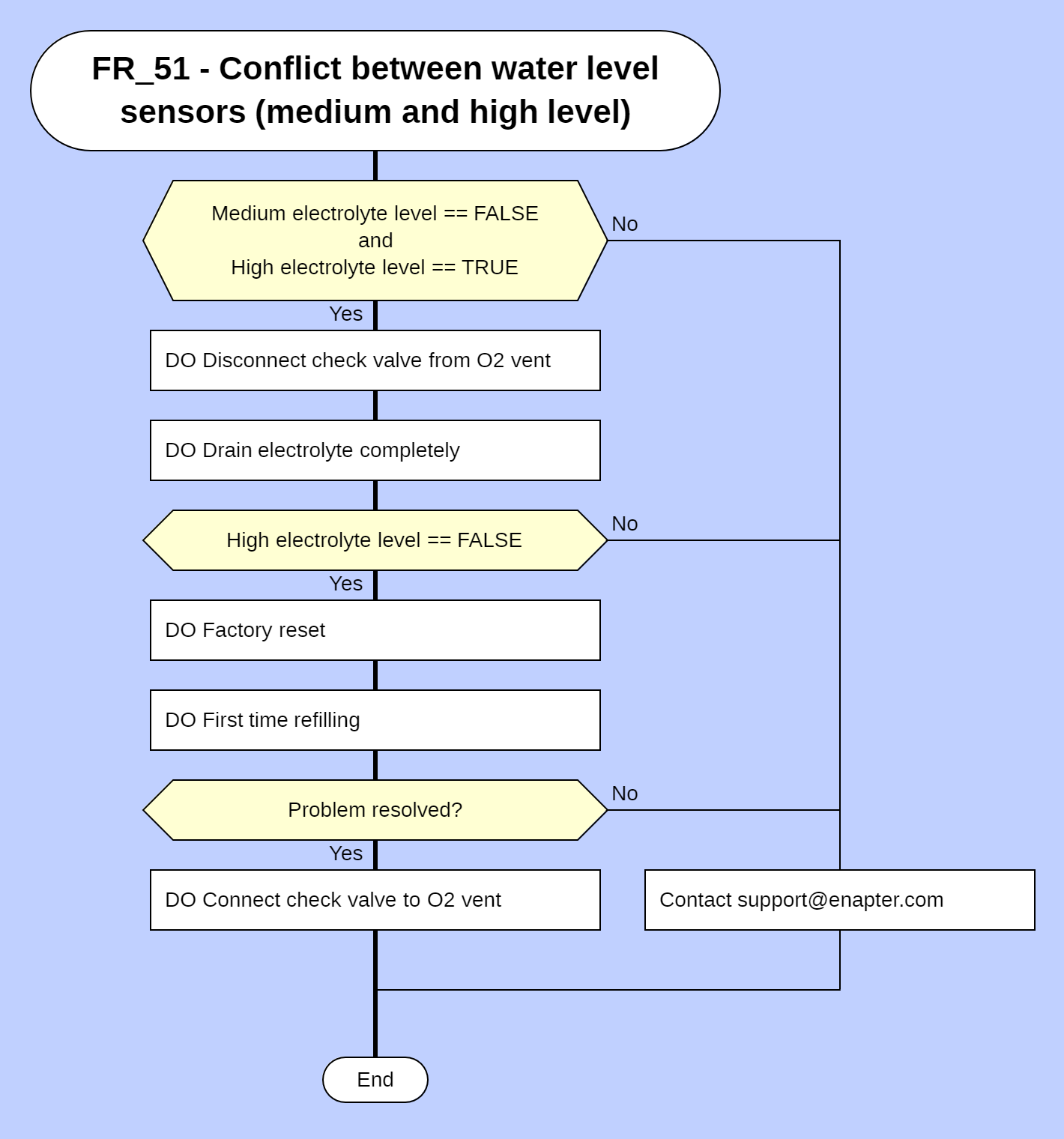

FR_51

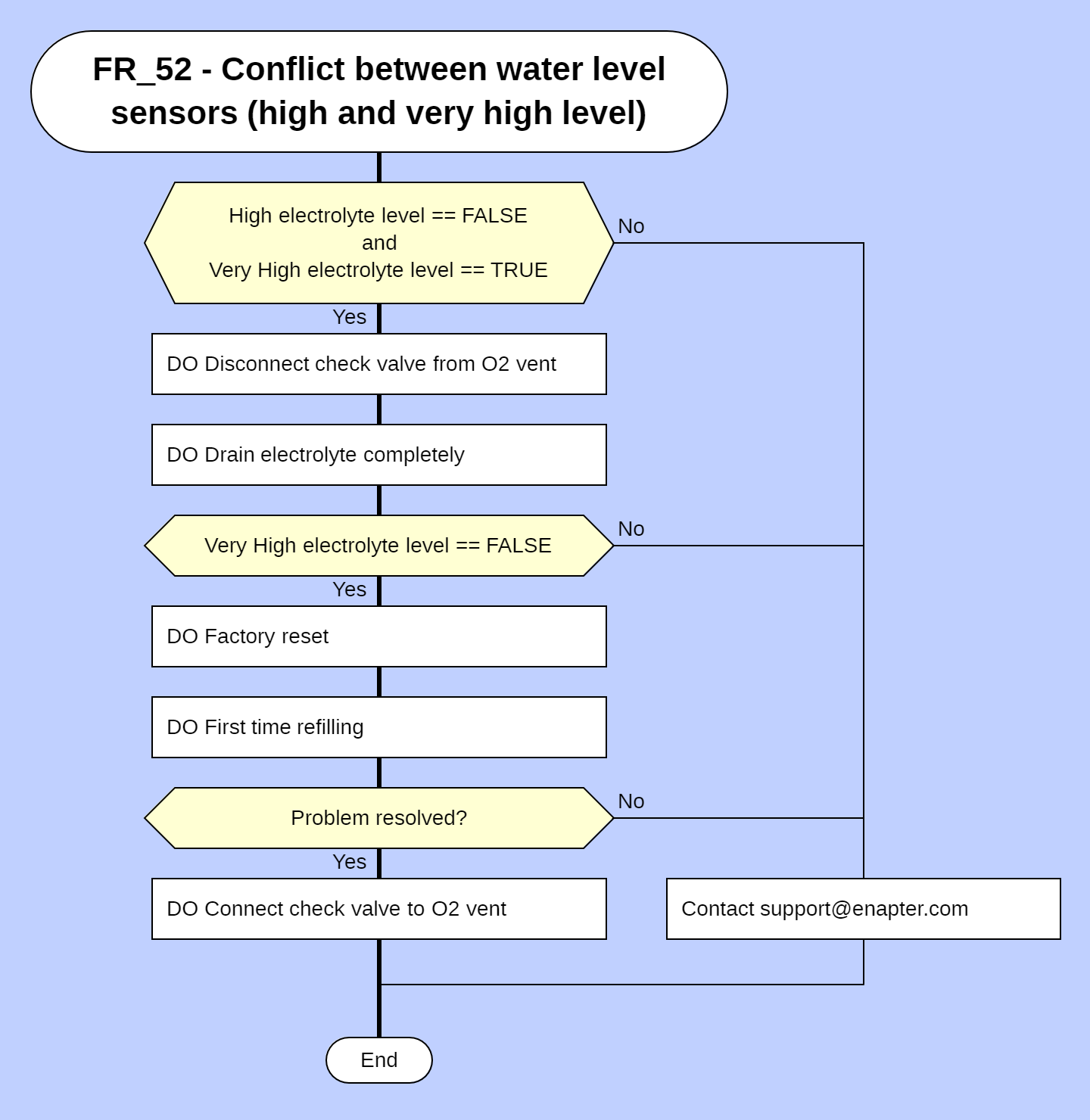

FR_52

FR_40

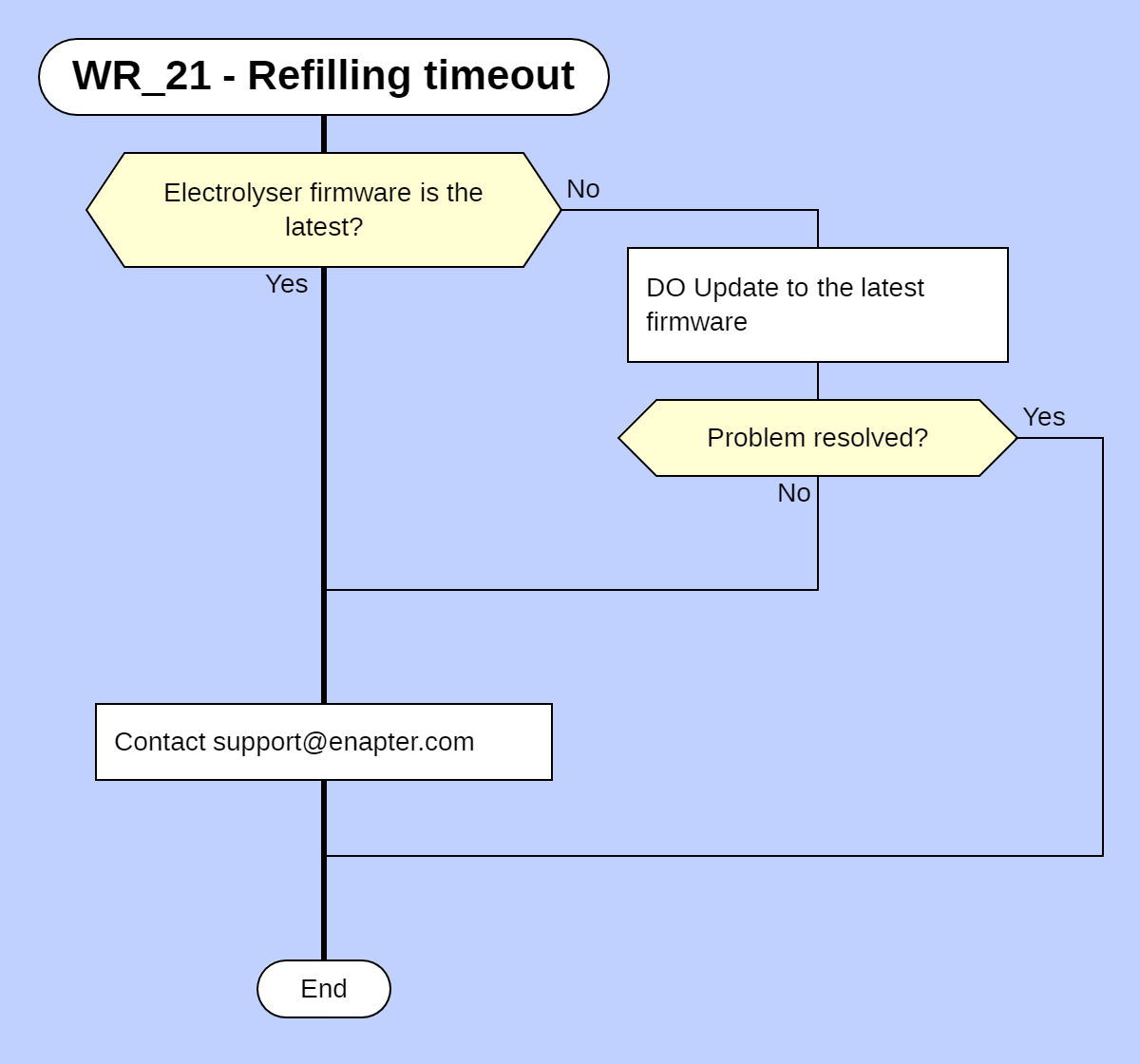

WR_21

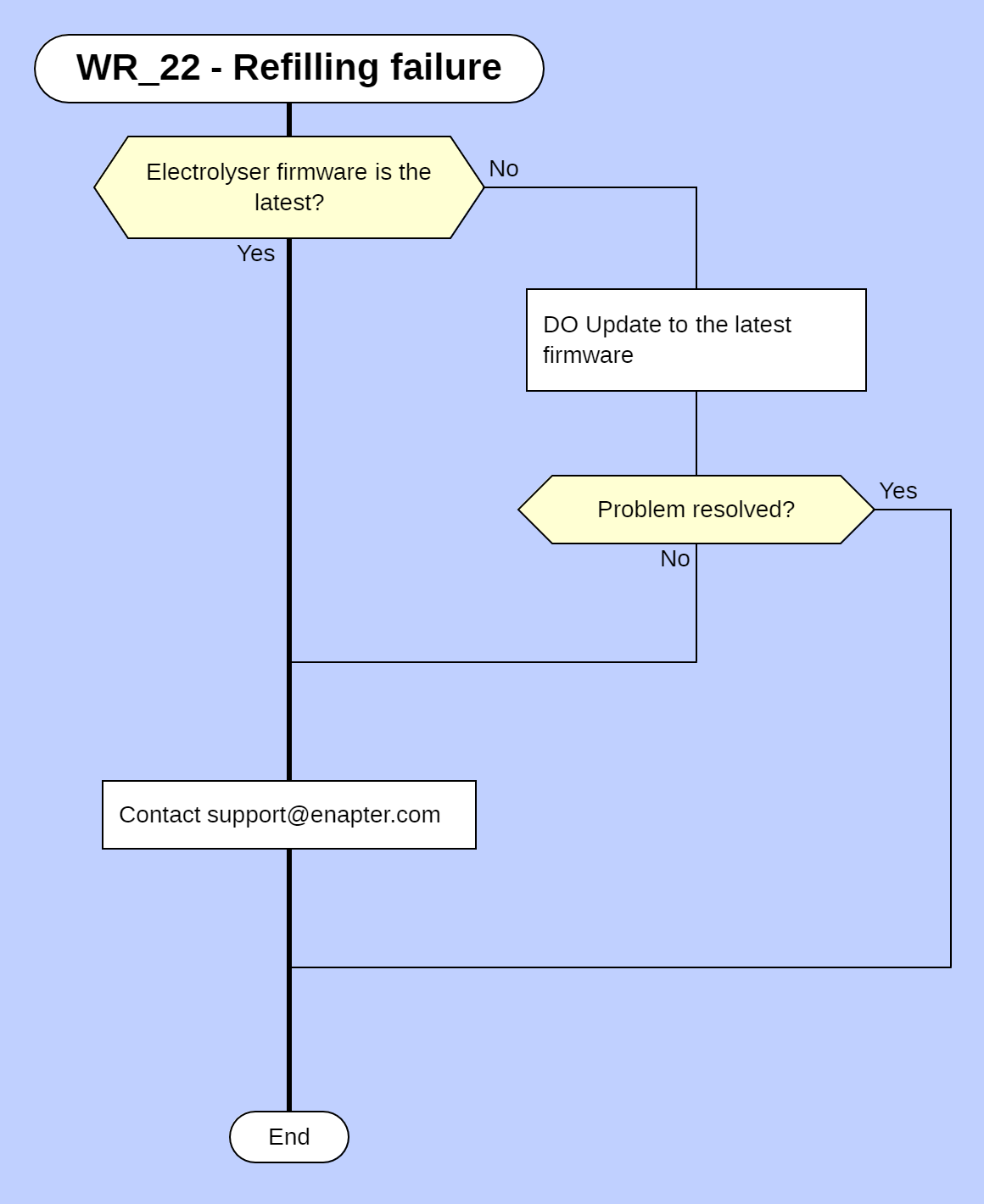

WR_22

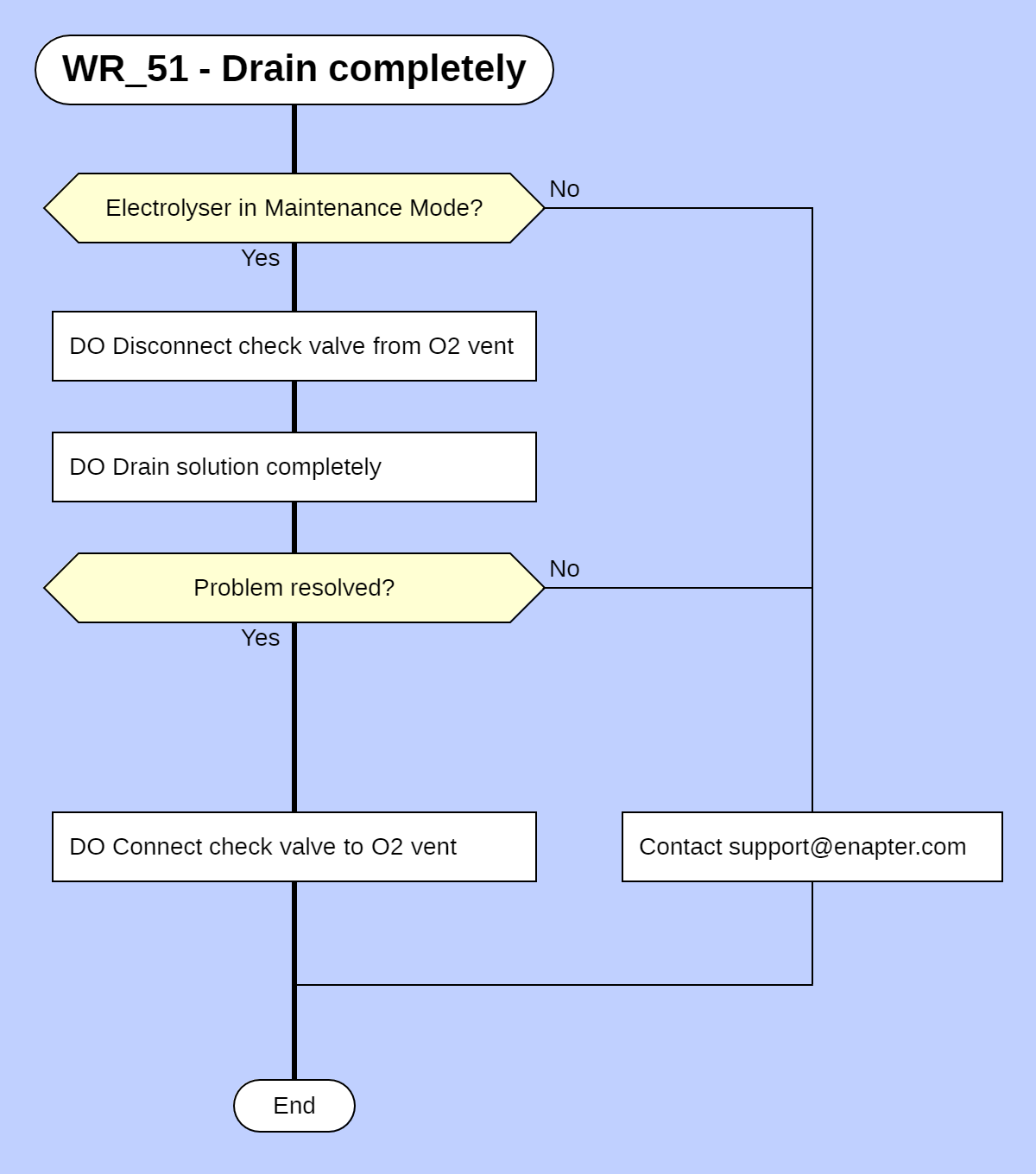

WR_51

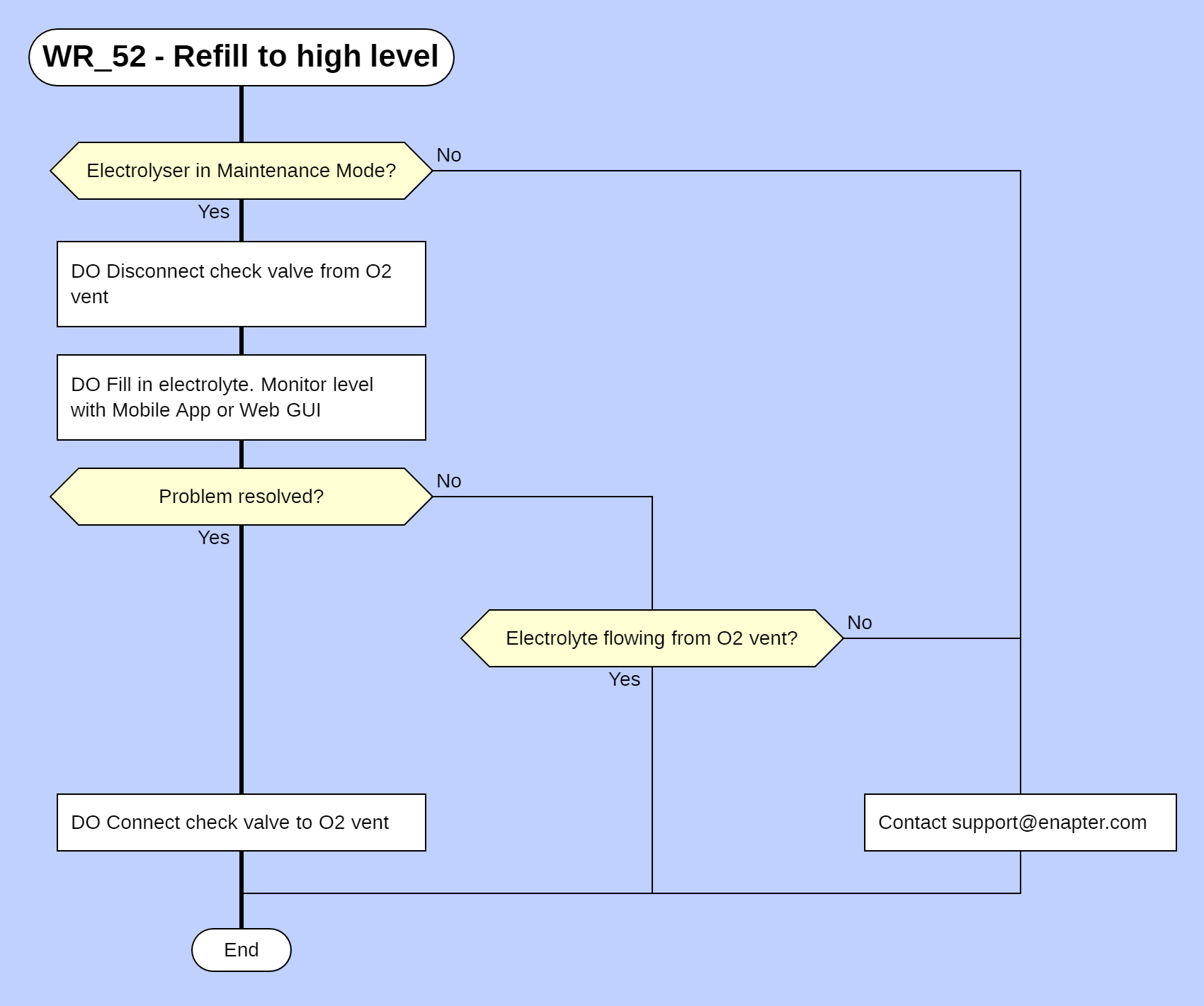

WR_52

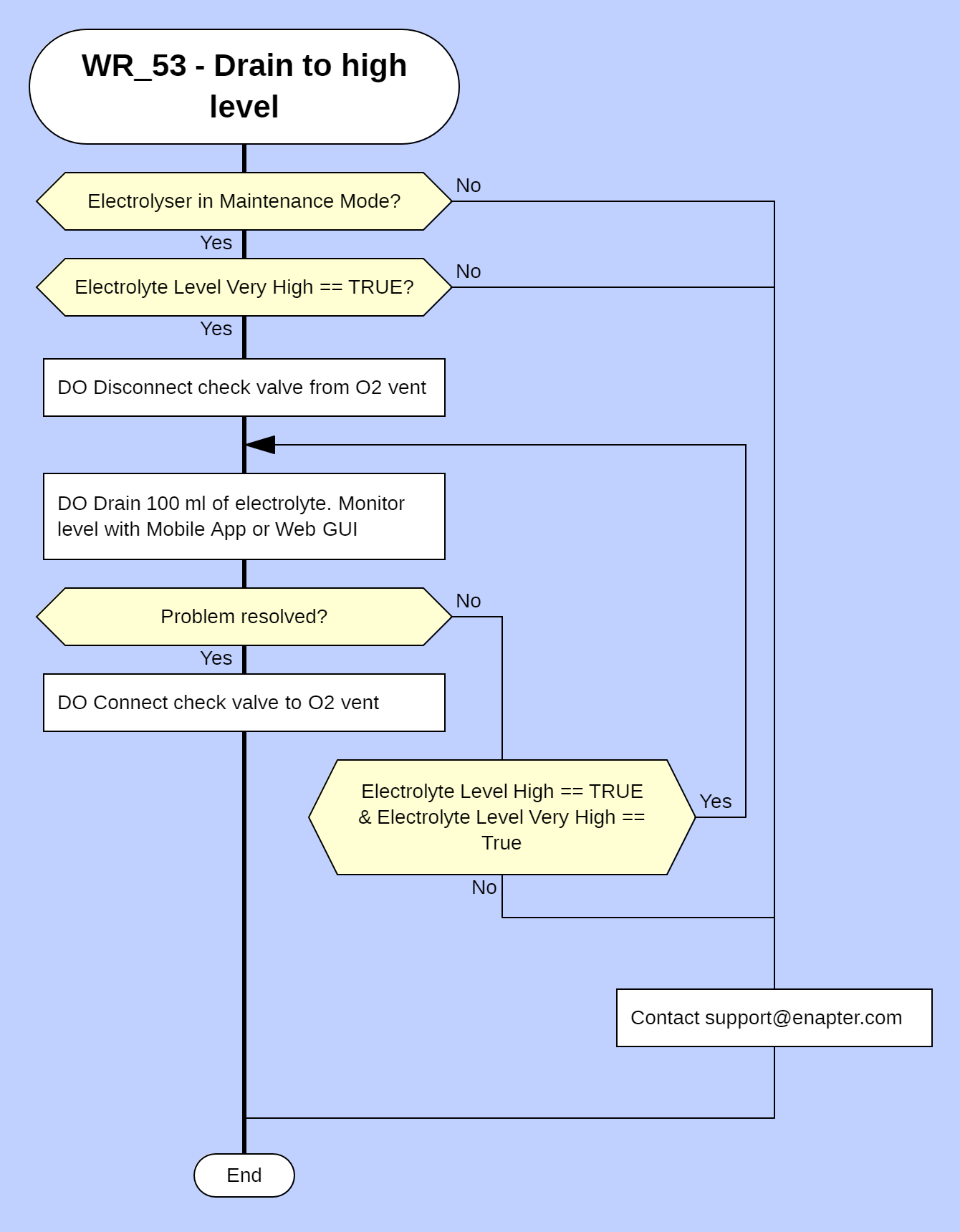

WR_53

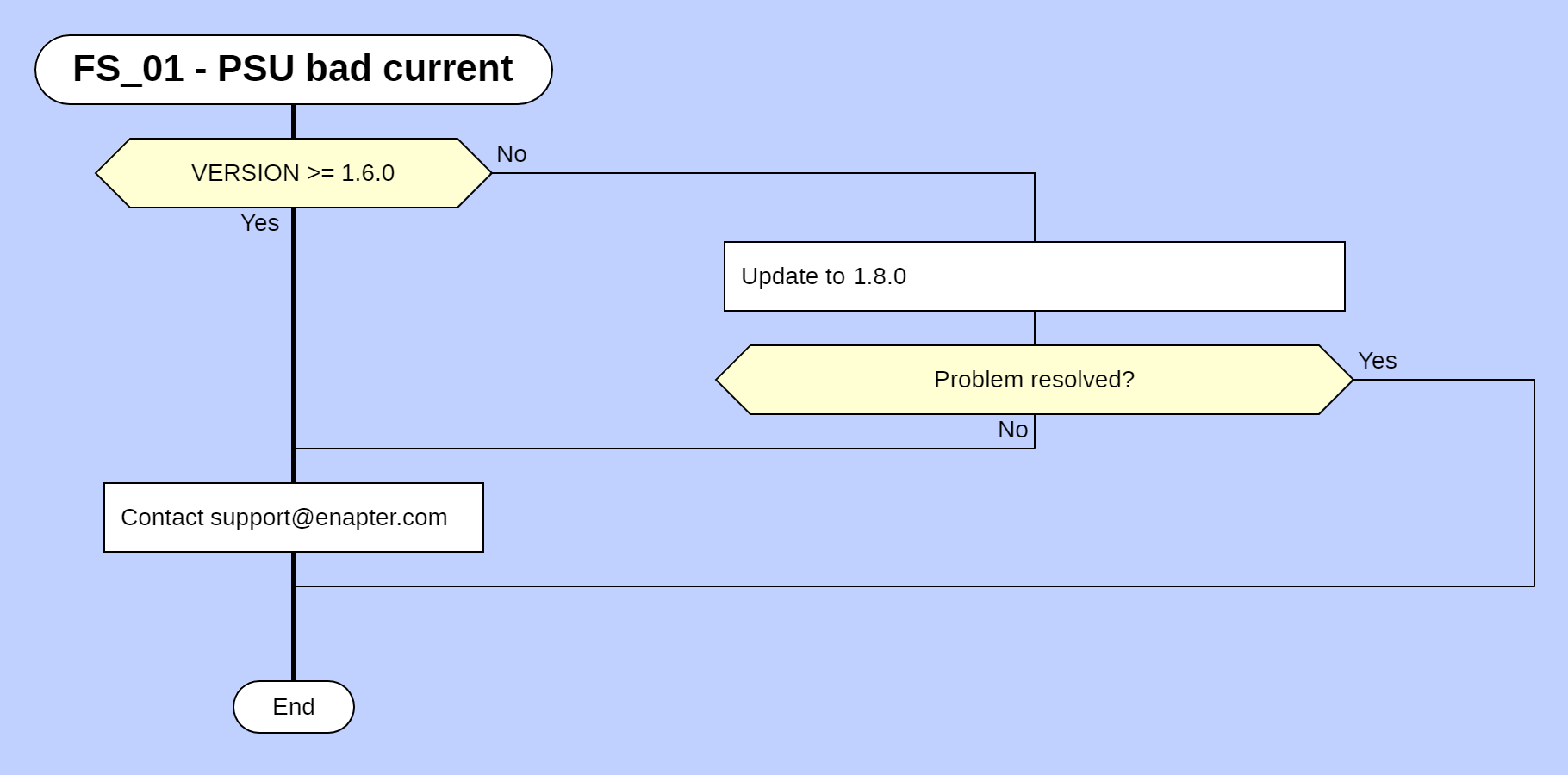

FS_01

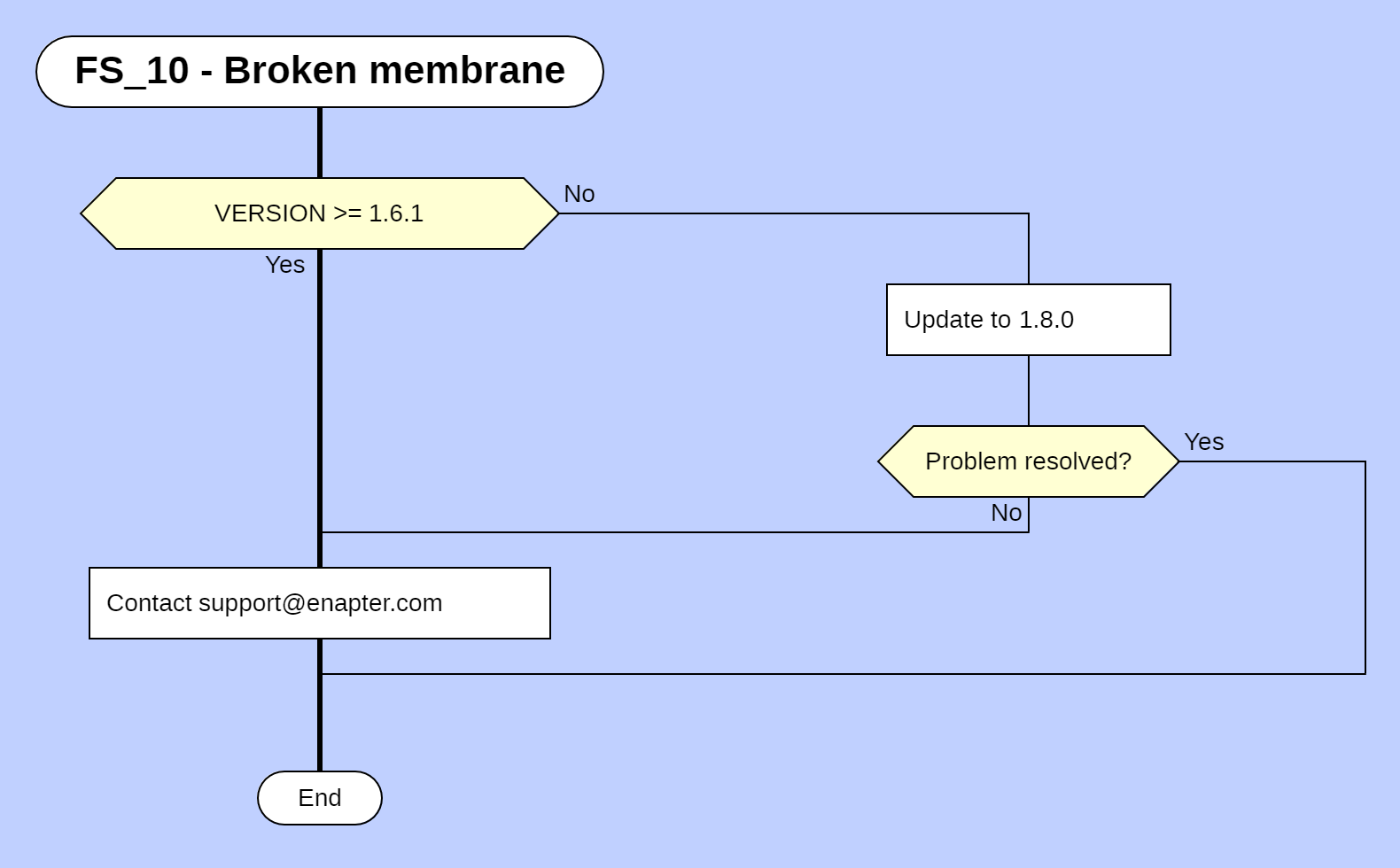

FS_10

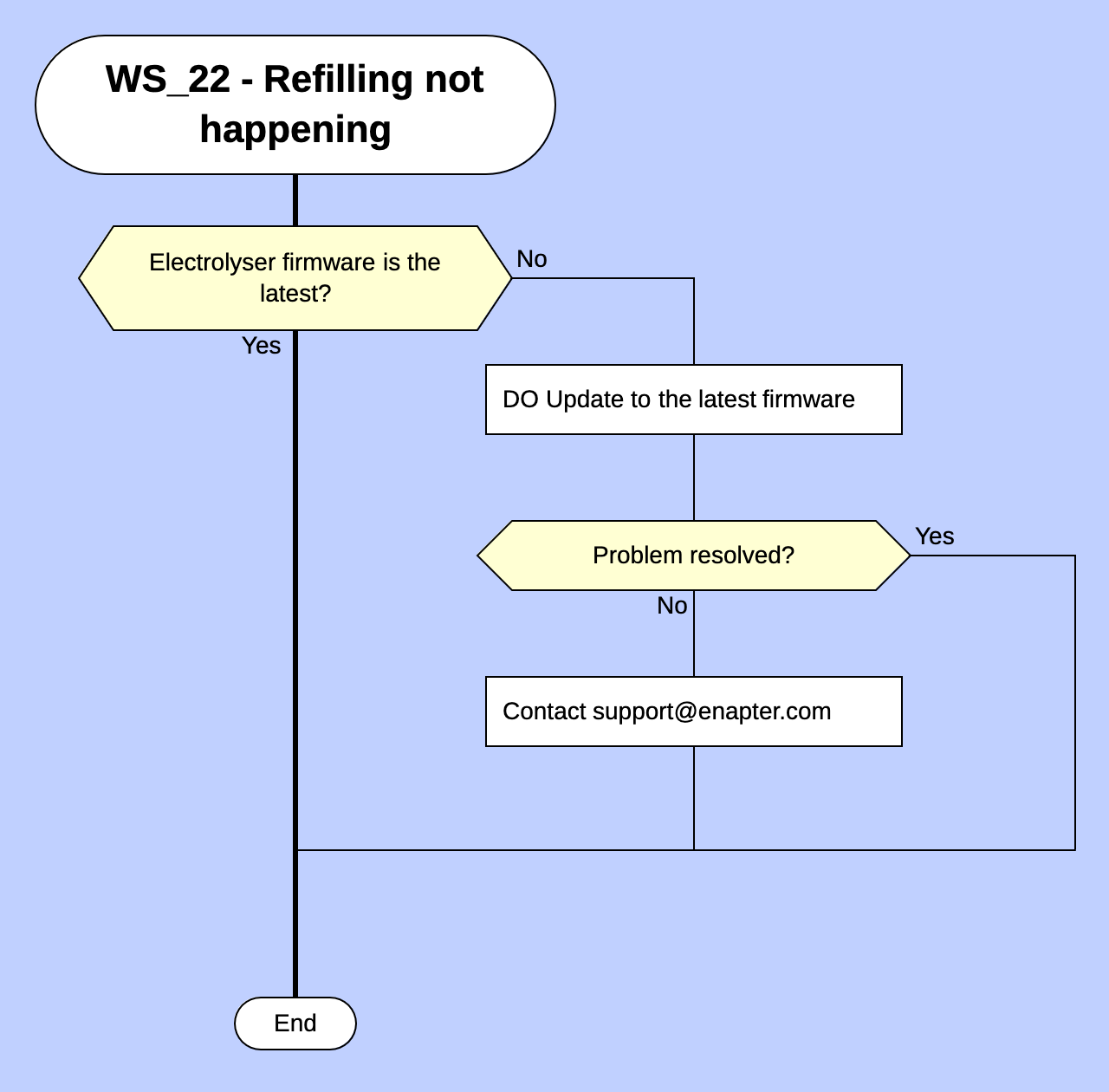

WS_22

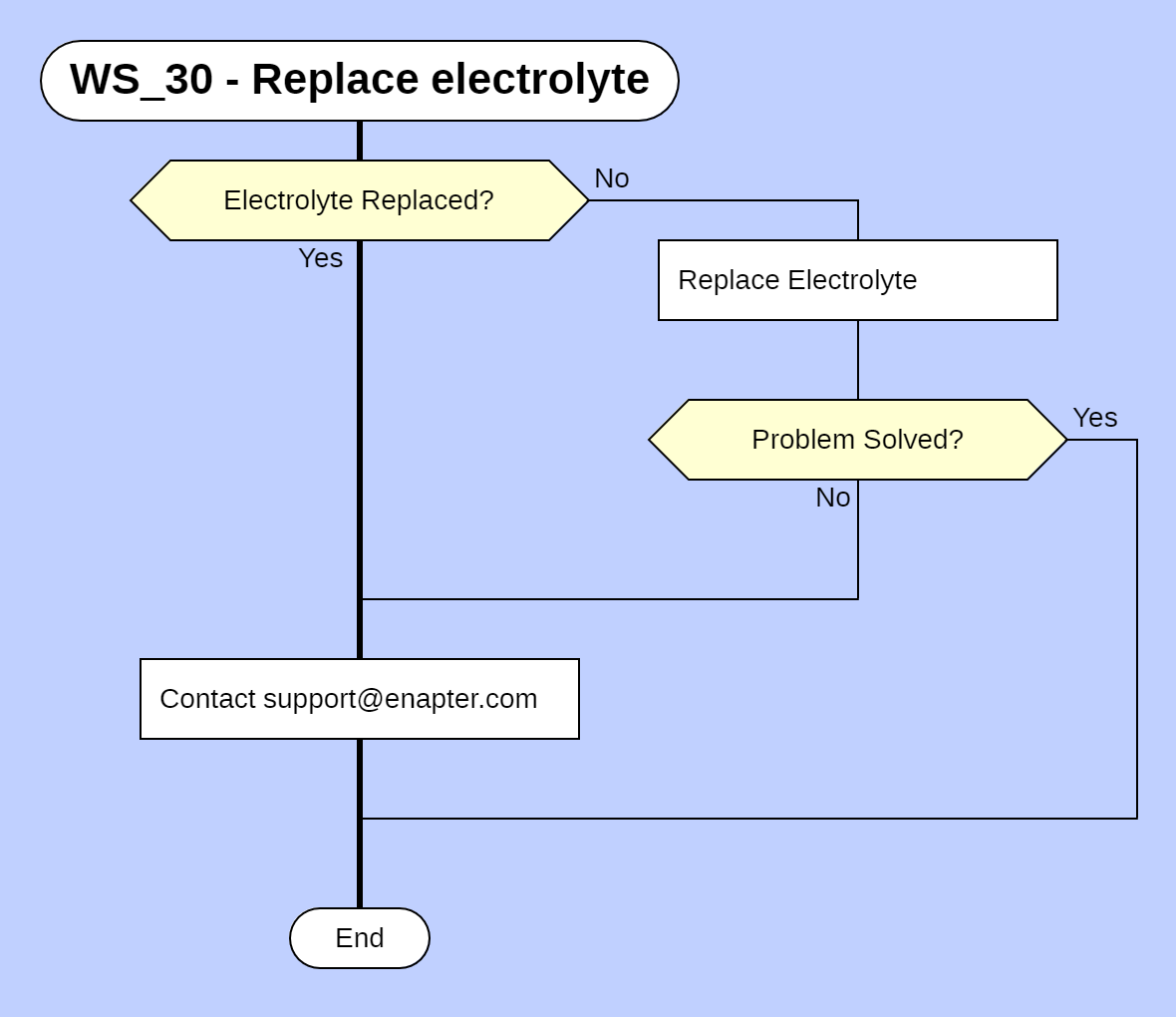

WS_30

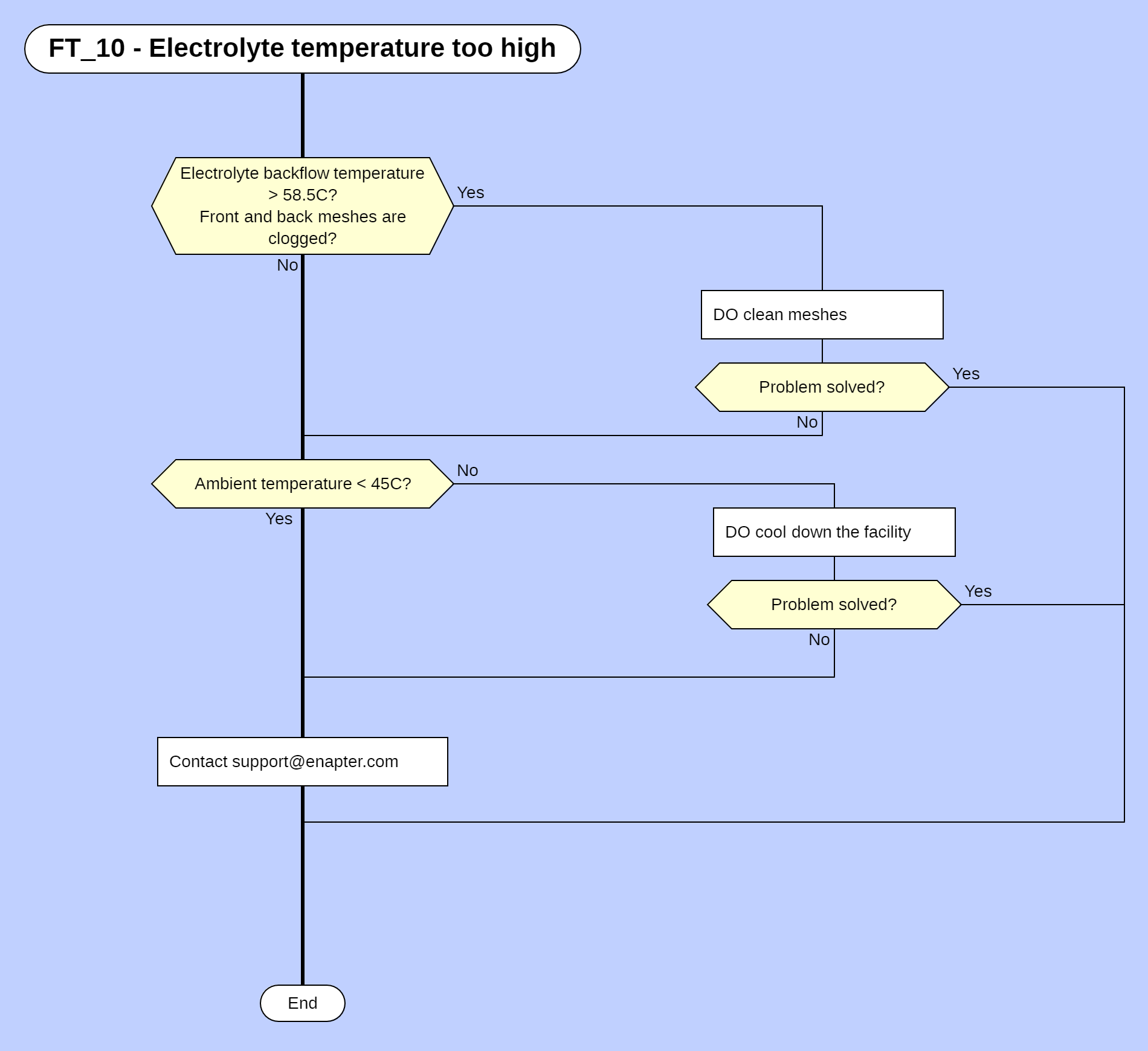

FT_10

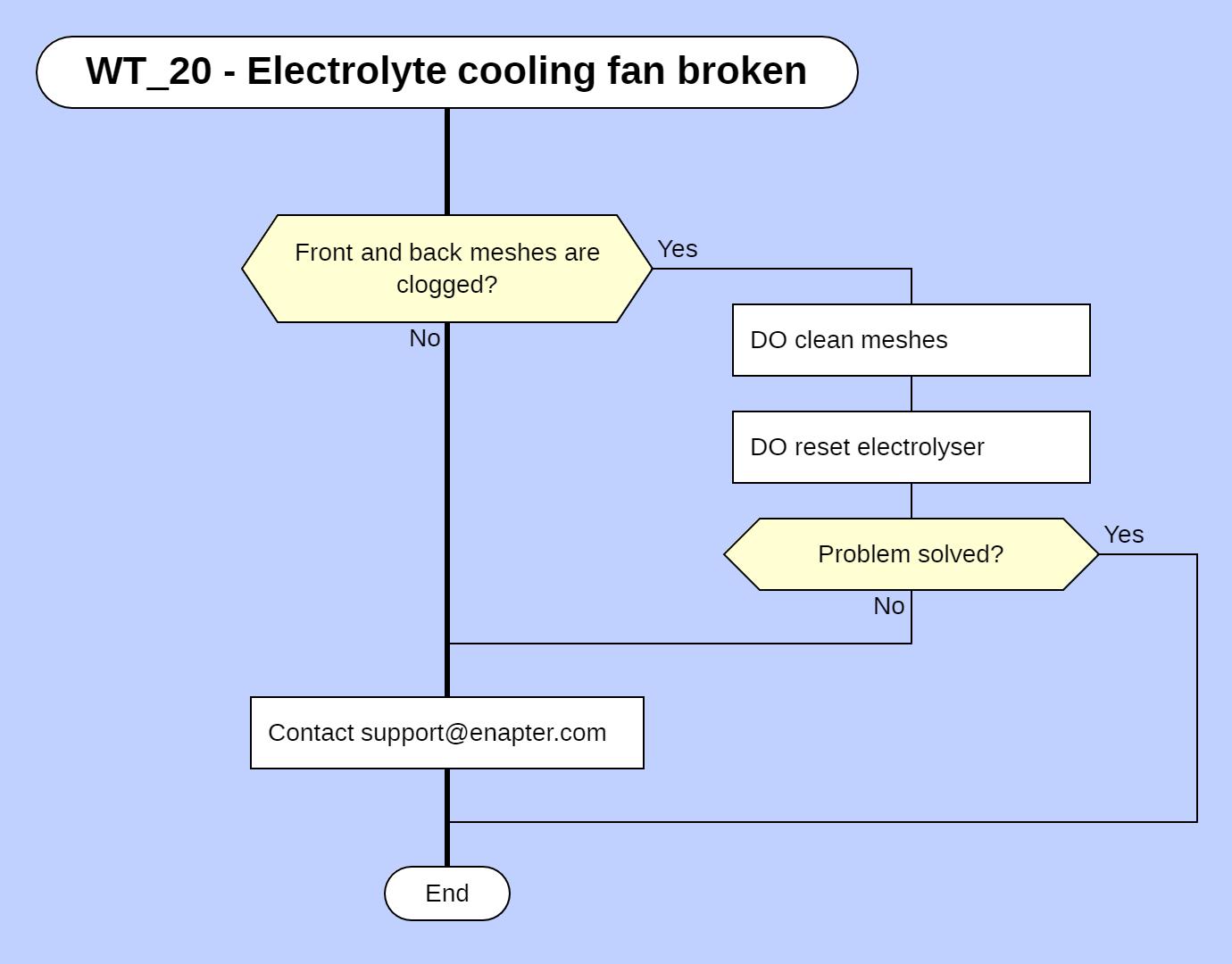

WT_20

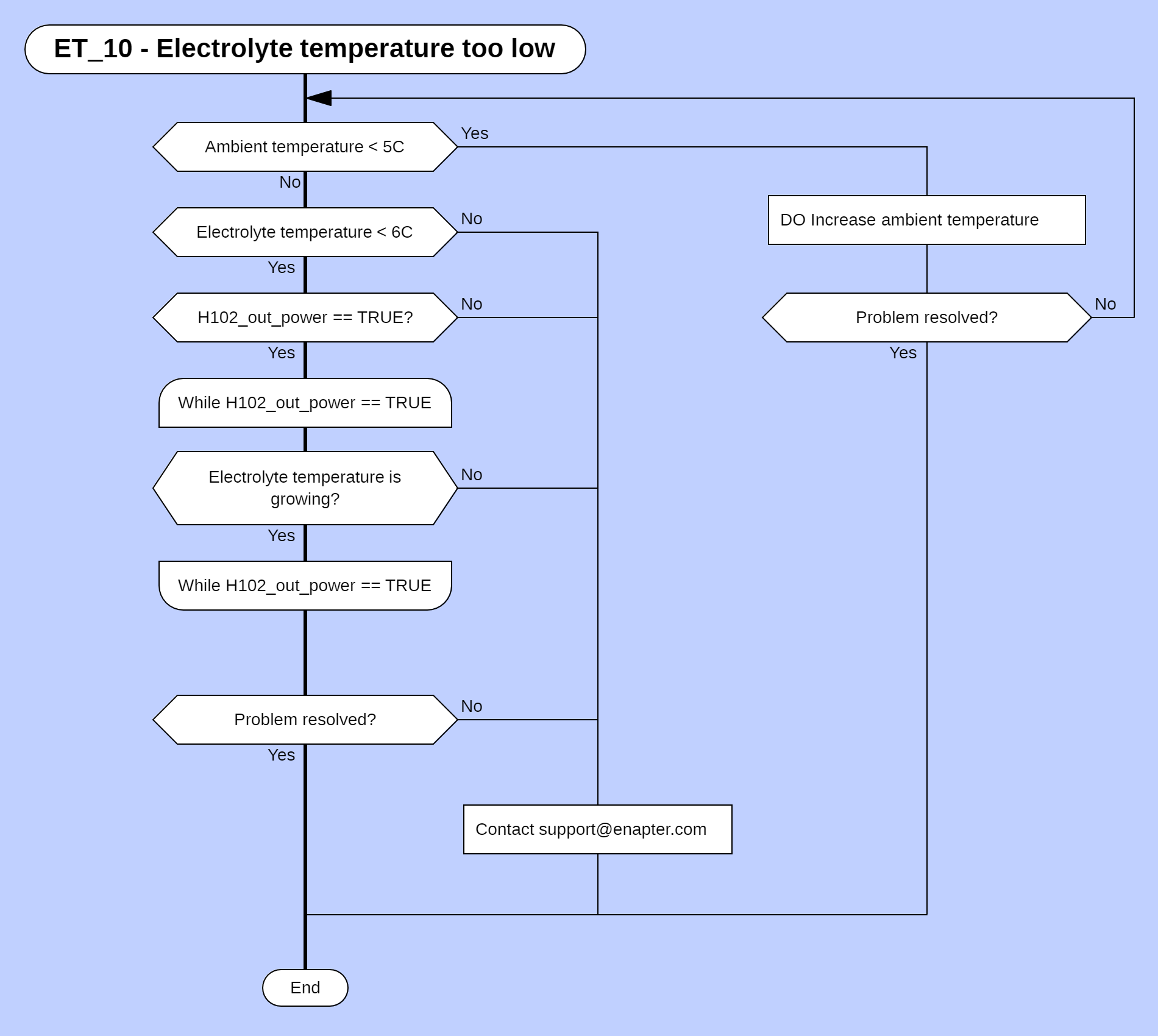

ET_10

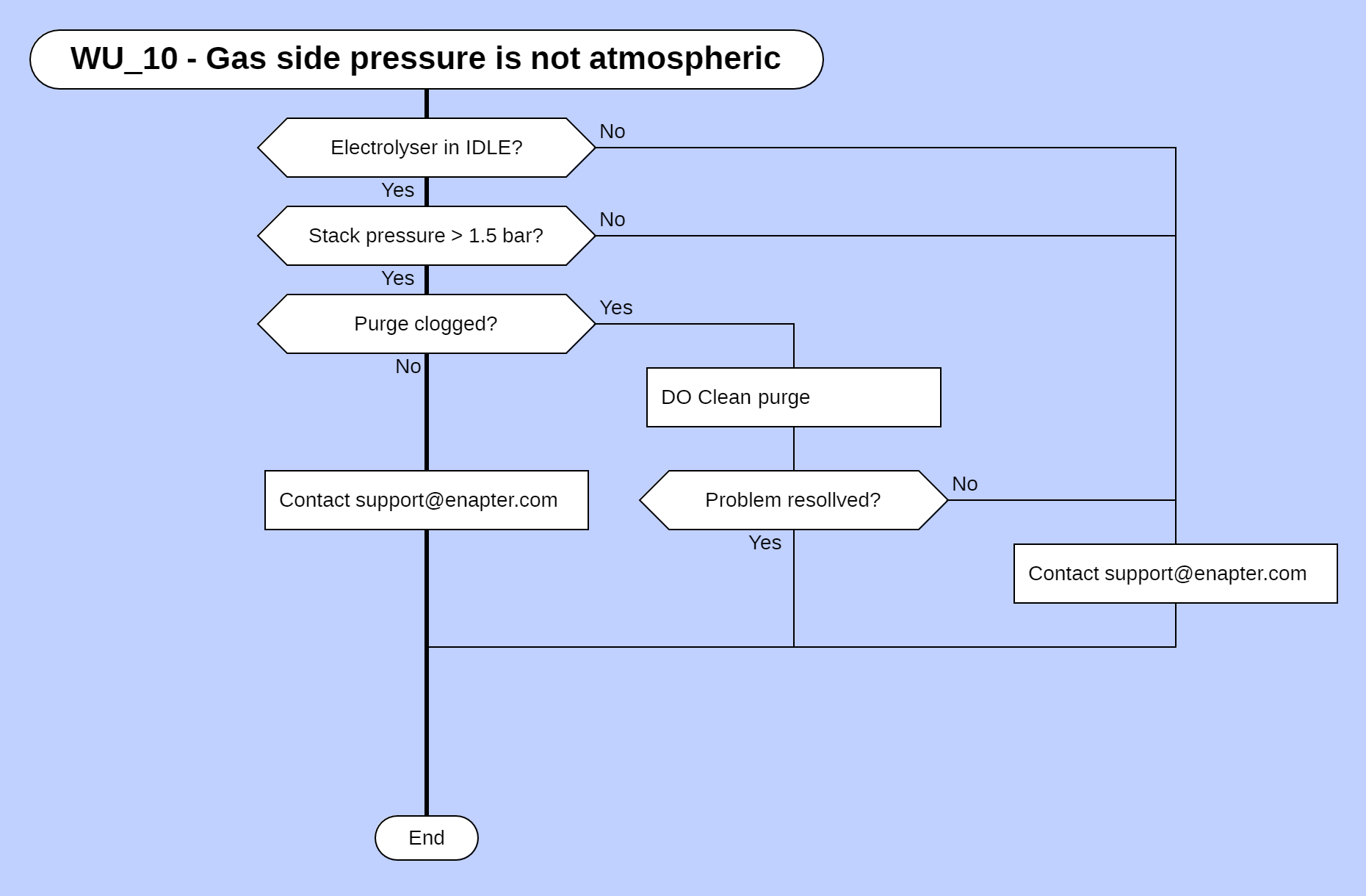

WU_10

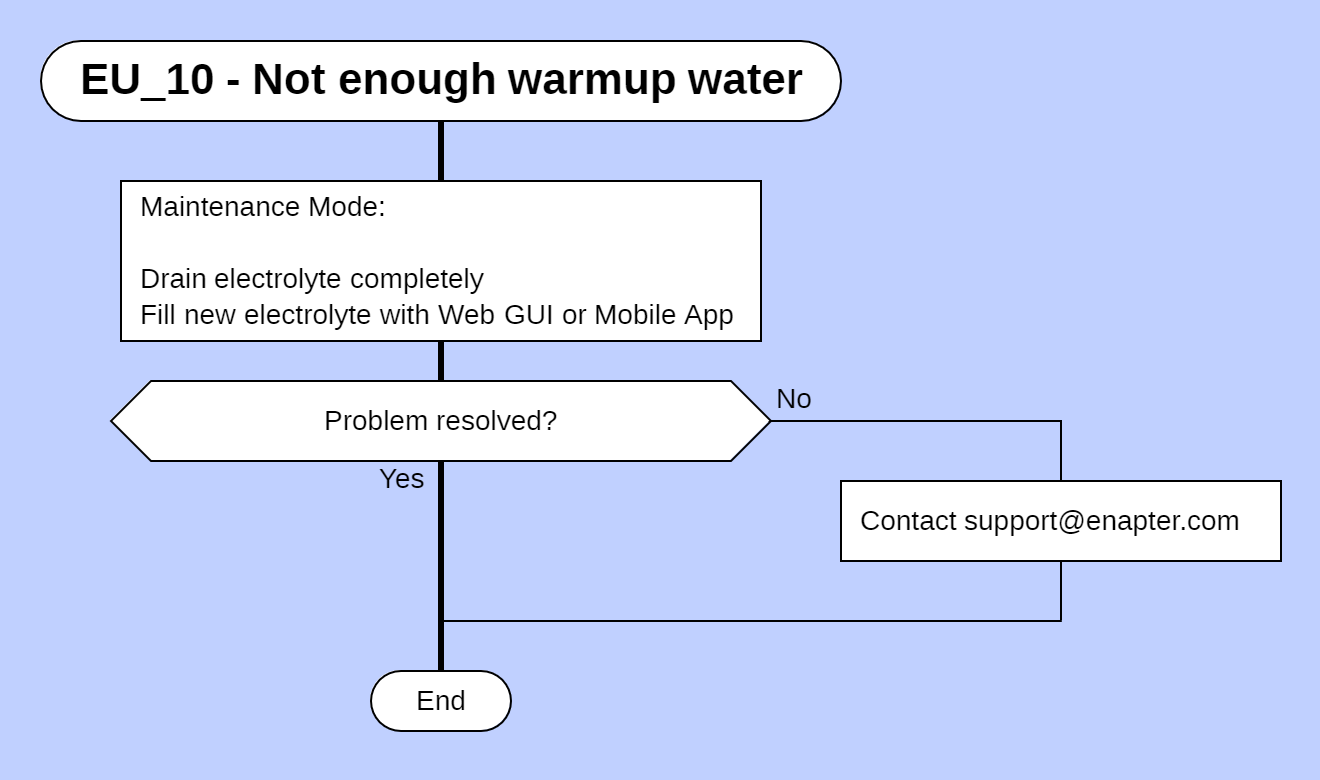

EU_10

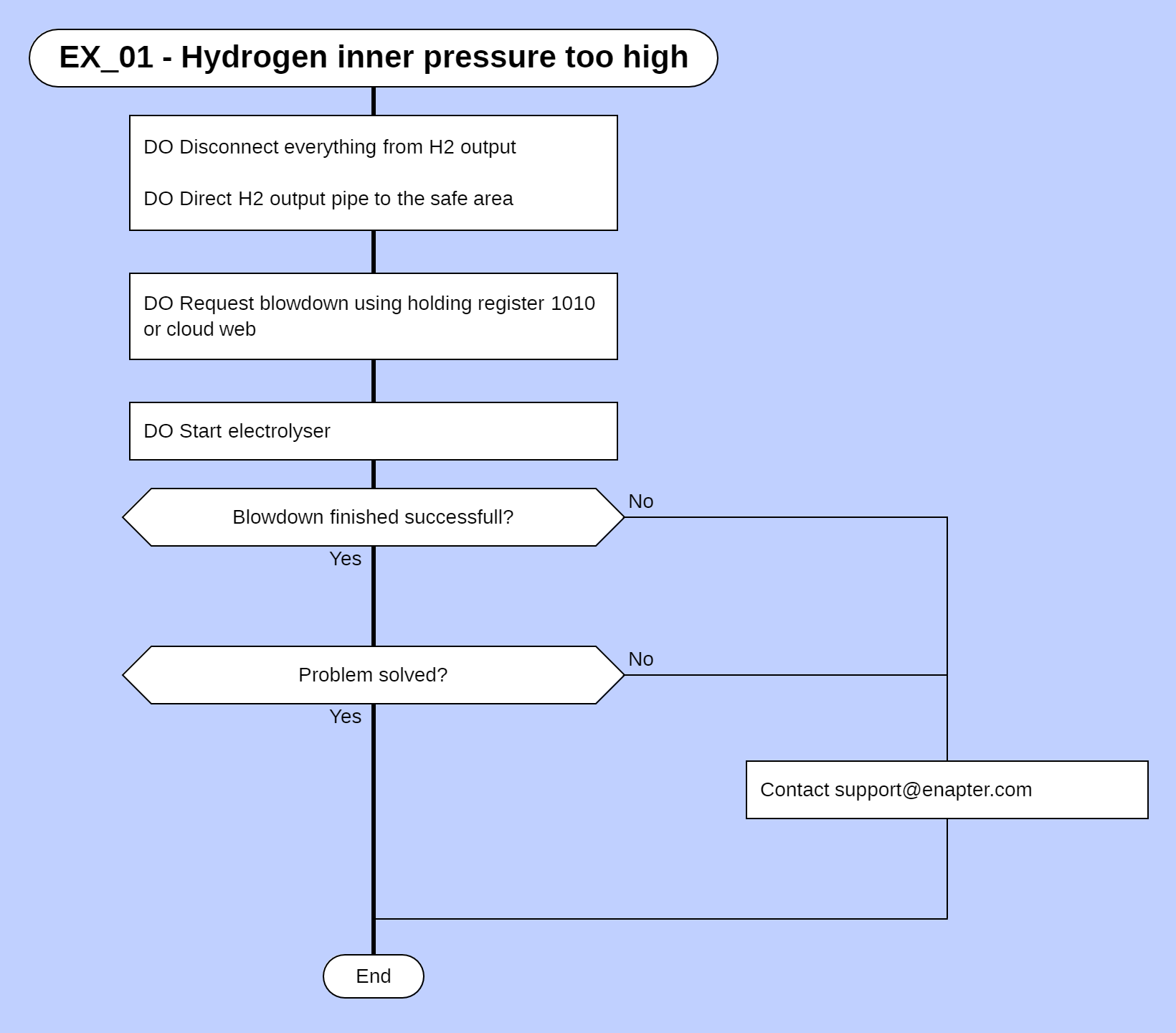

EX_01

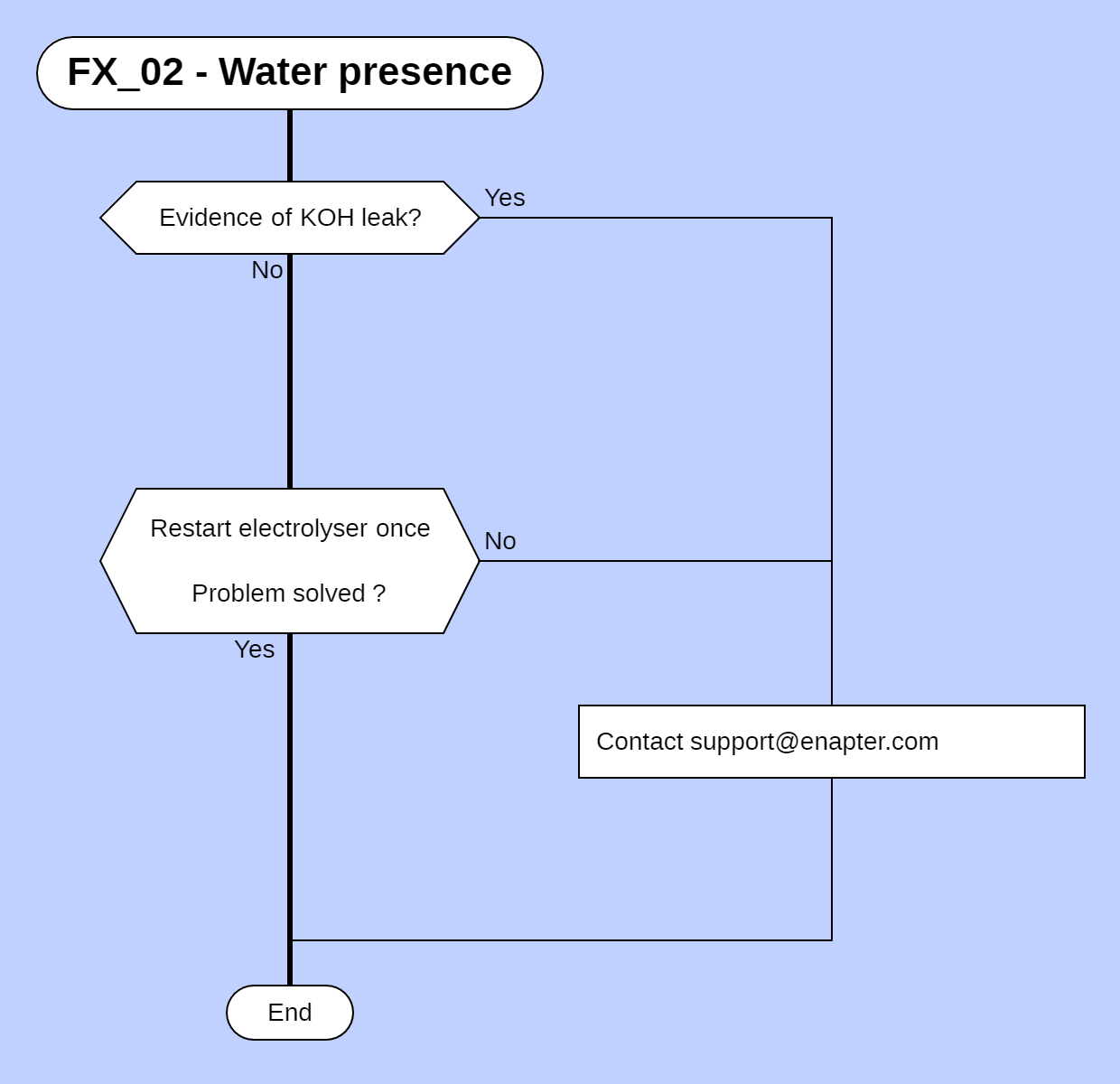

FX_02

FX_04

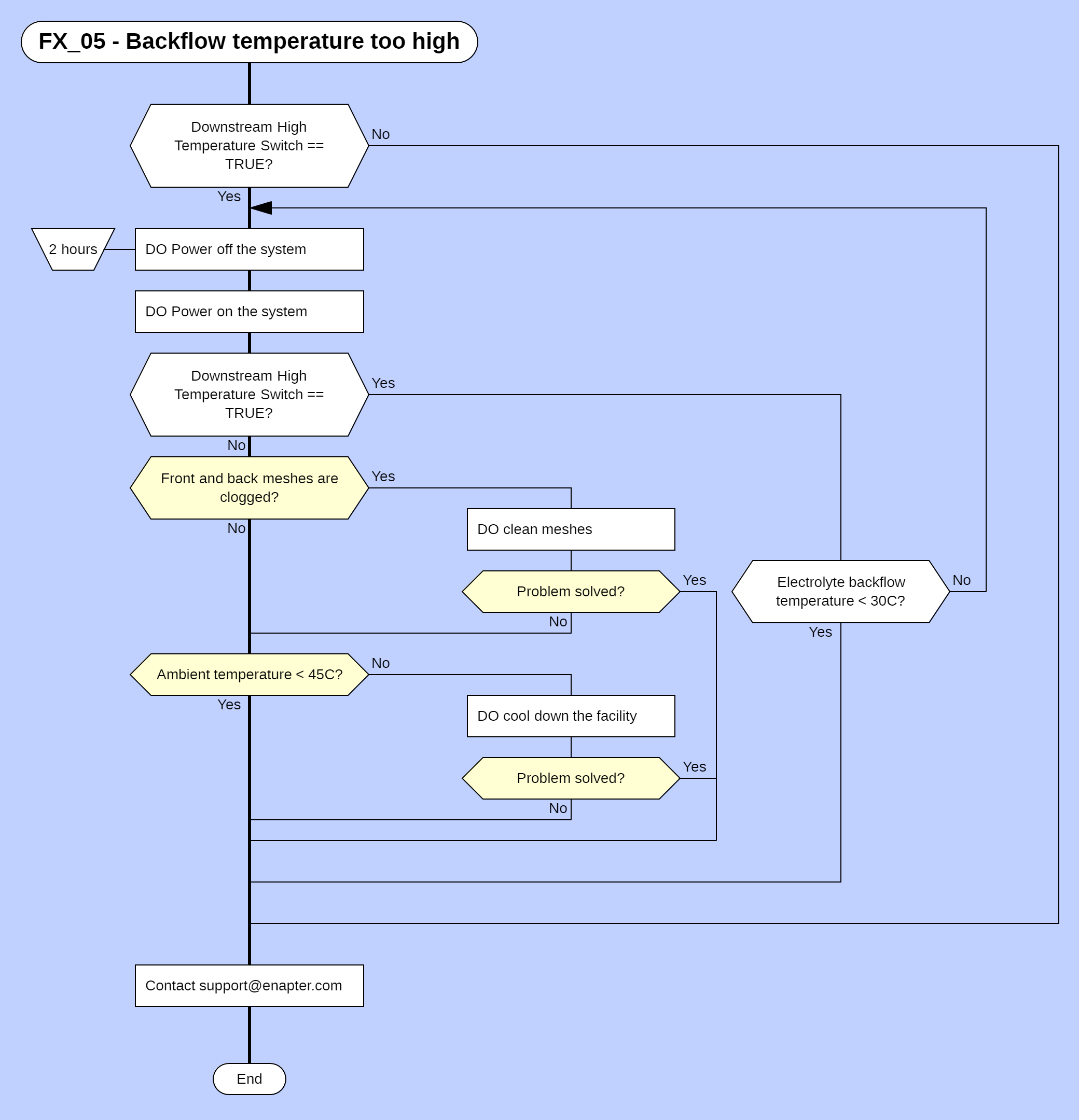

FX_05

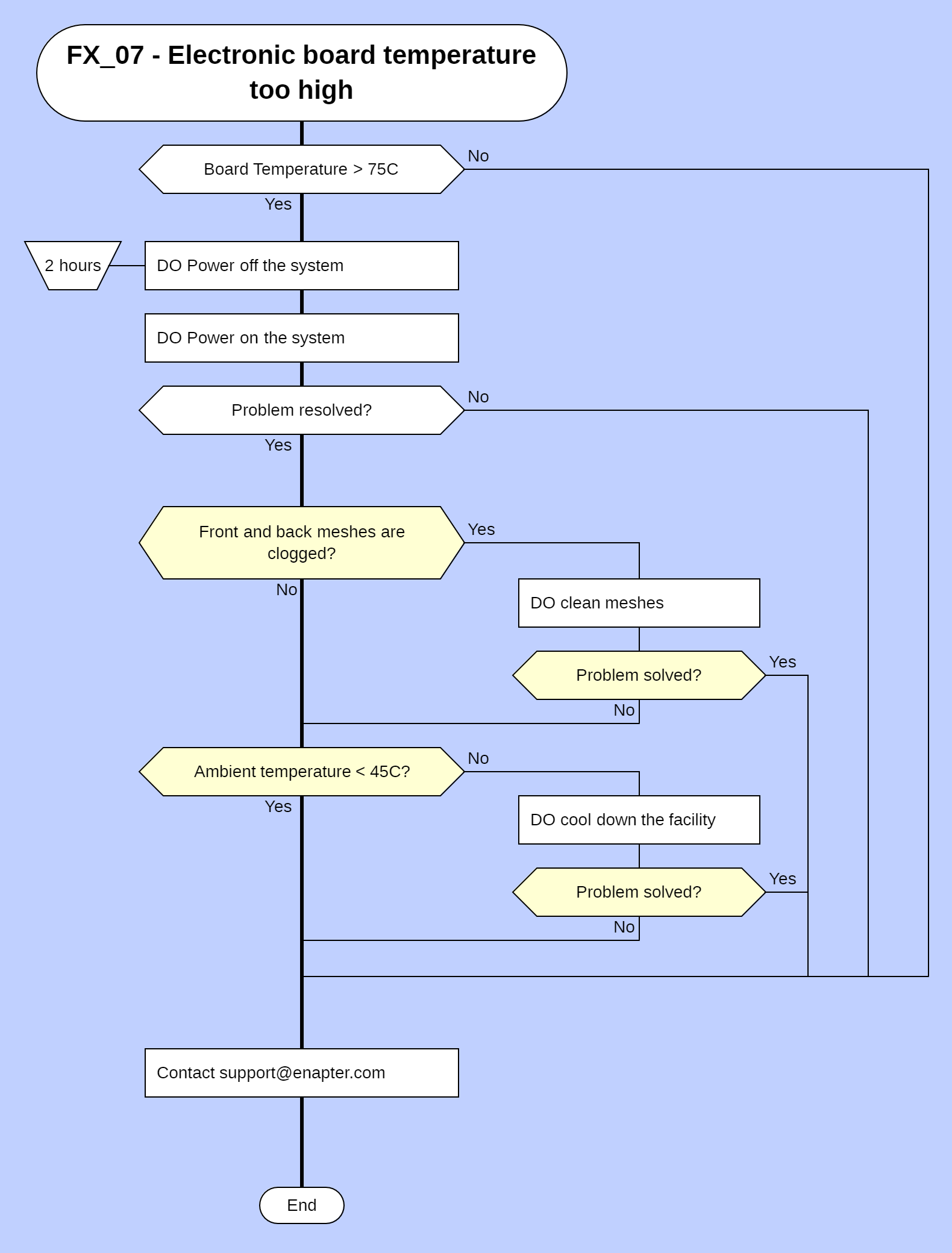

FX_07

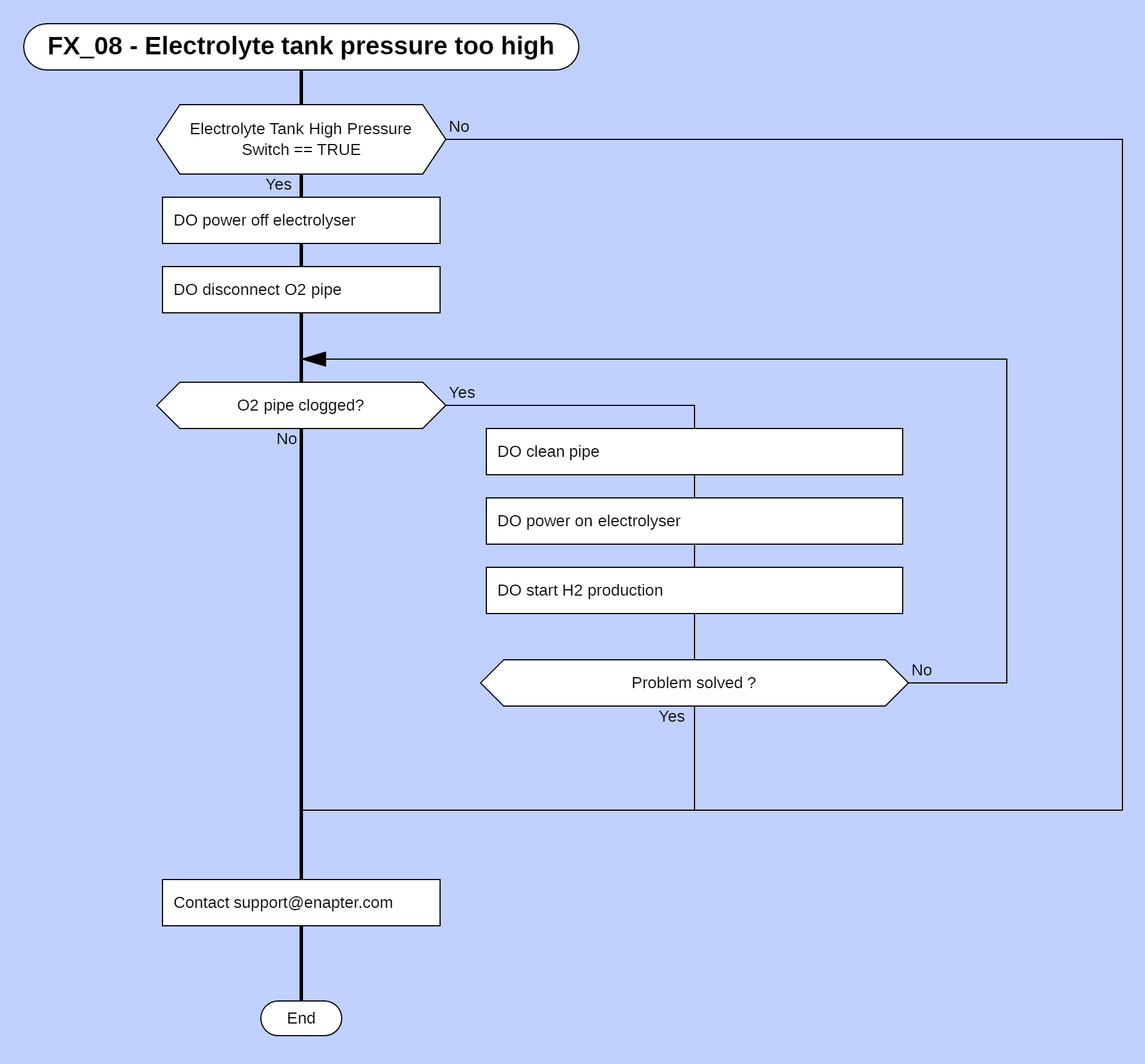

FX_08

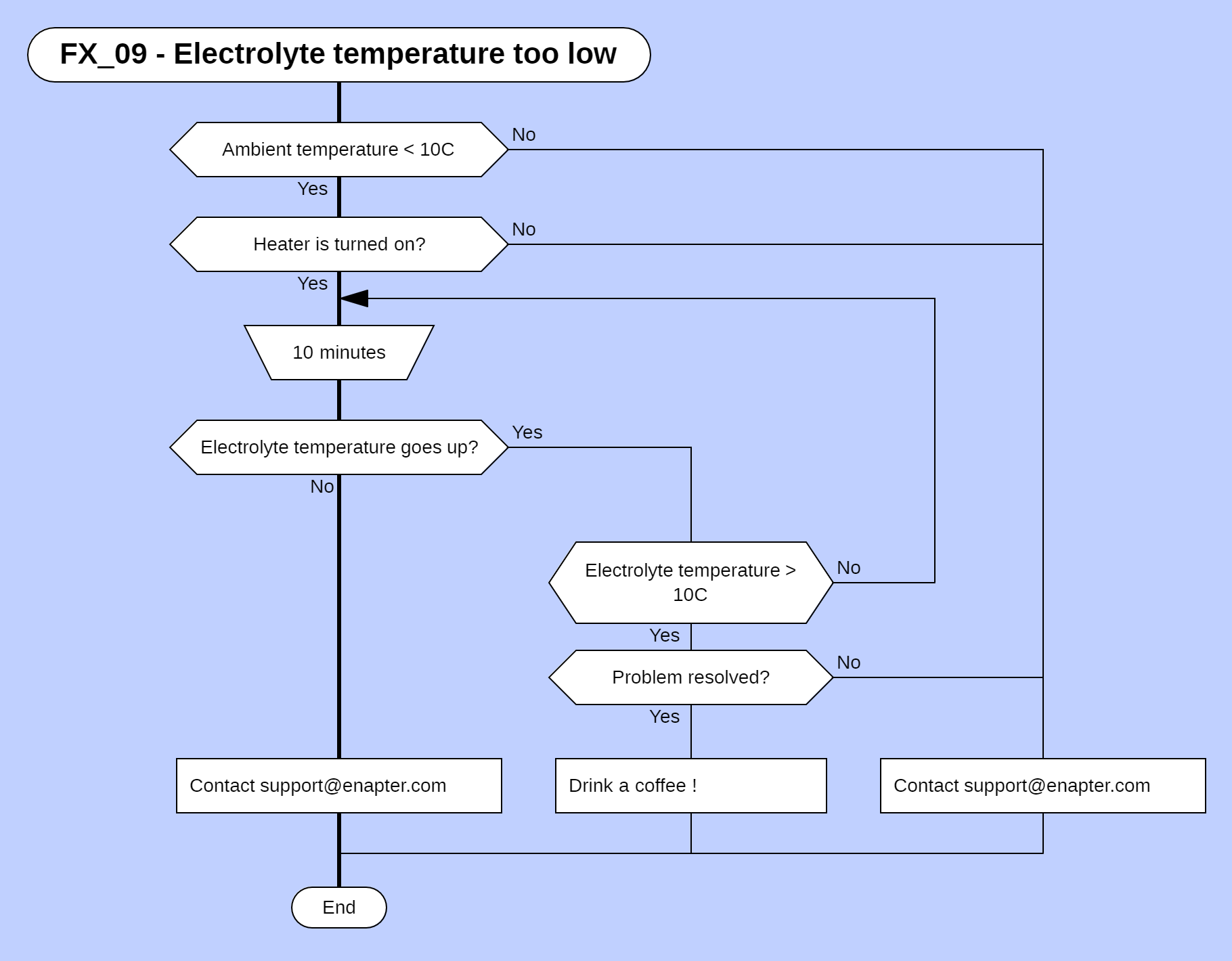

FX_09

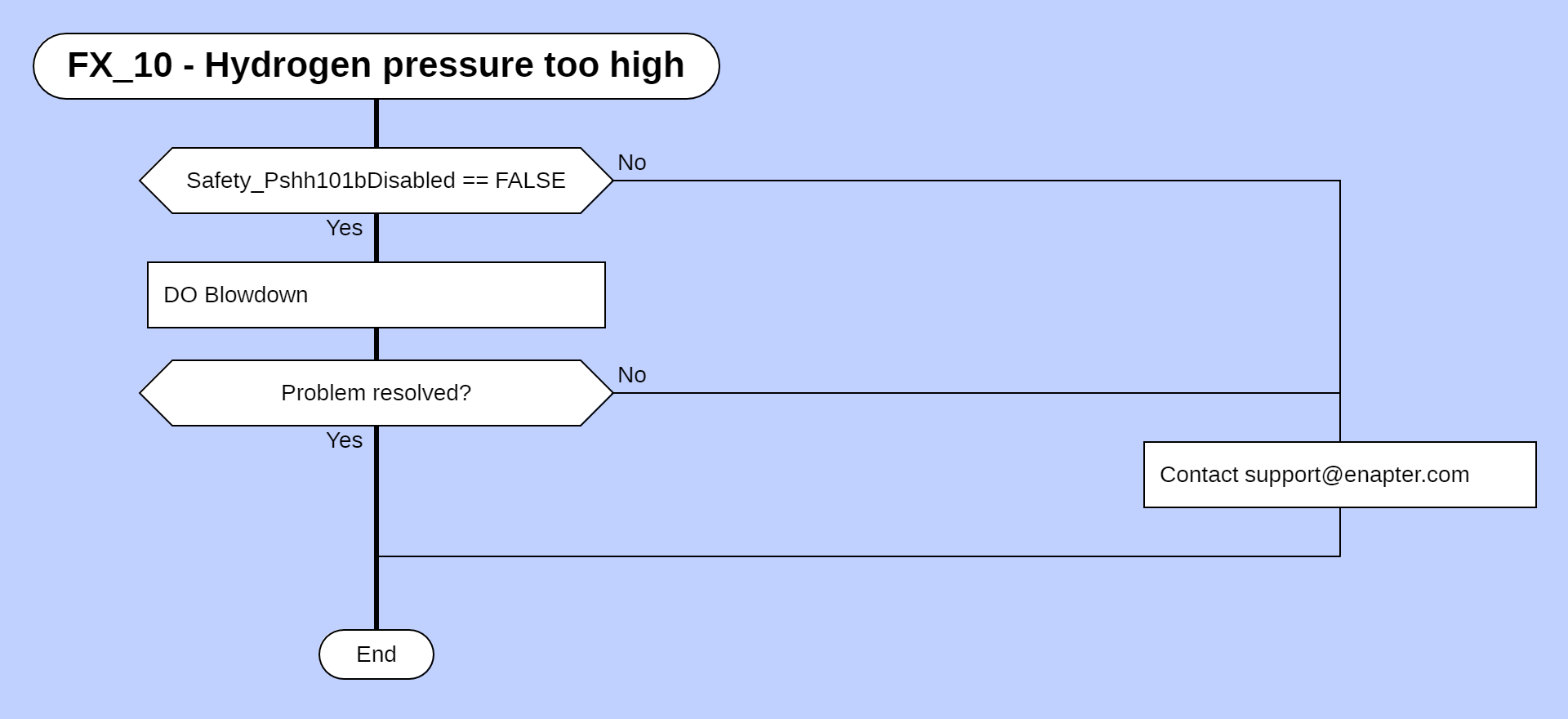

FX_10

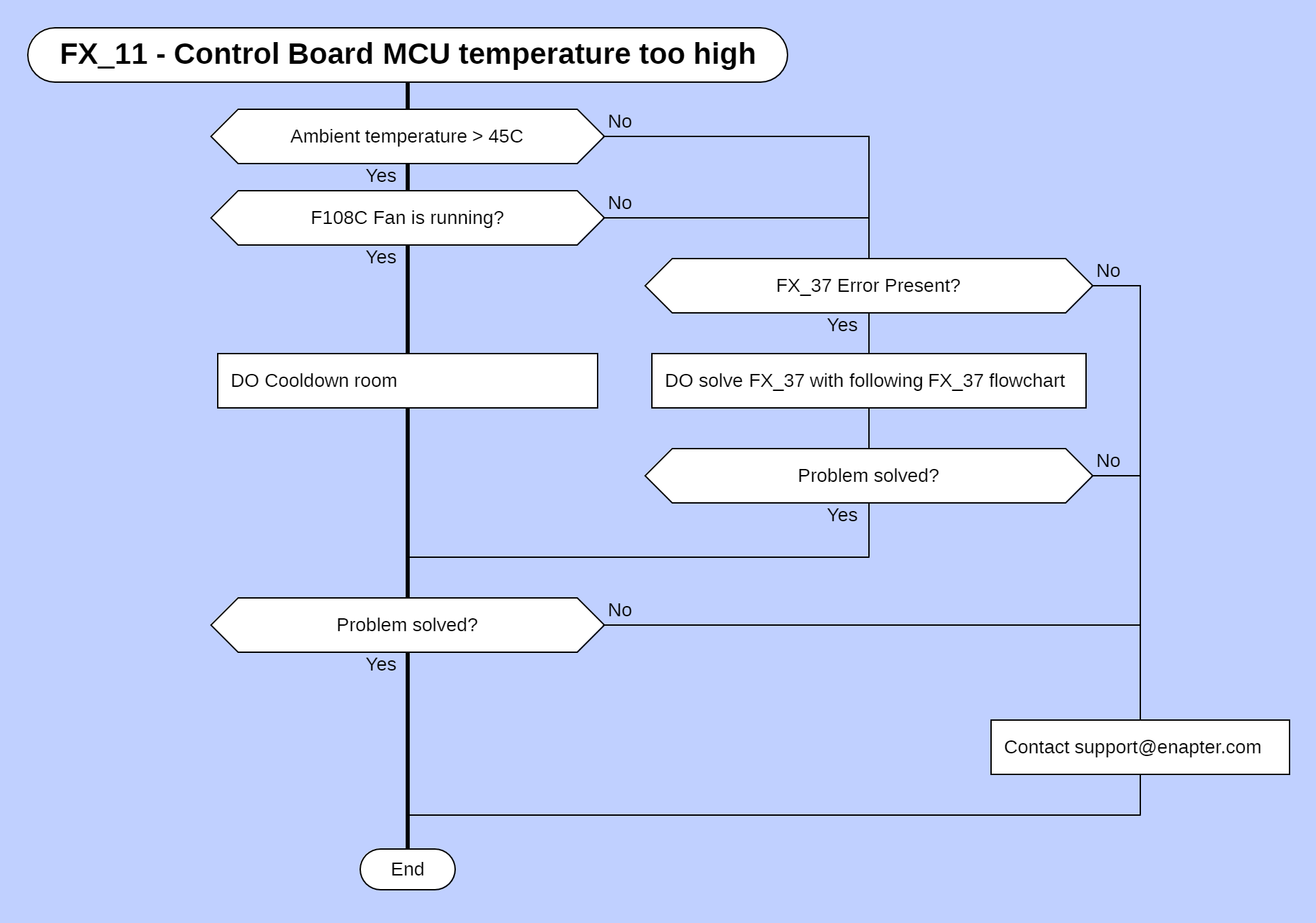

FX_11

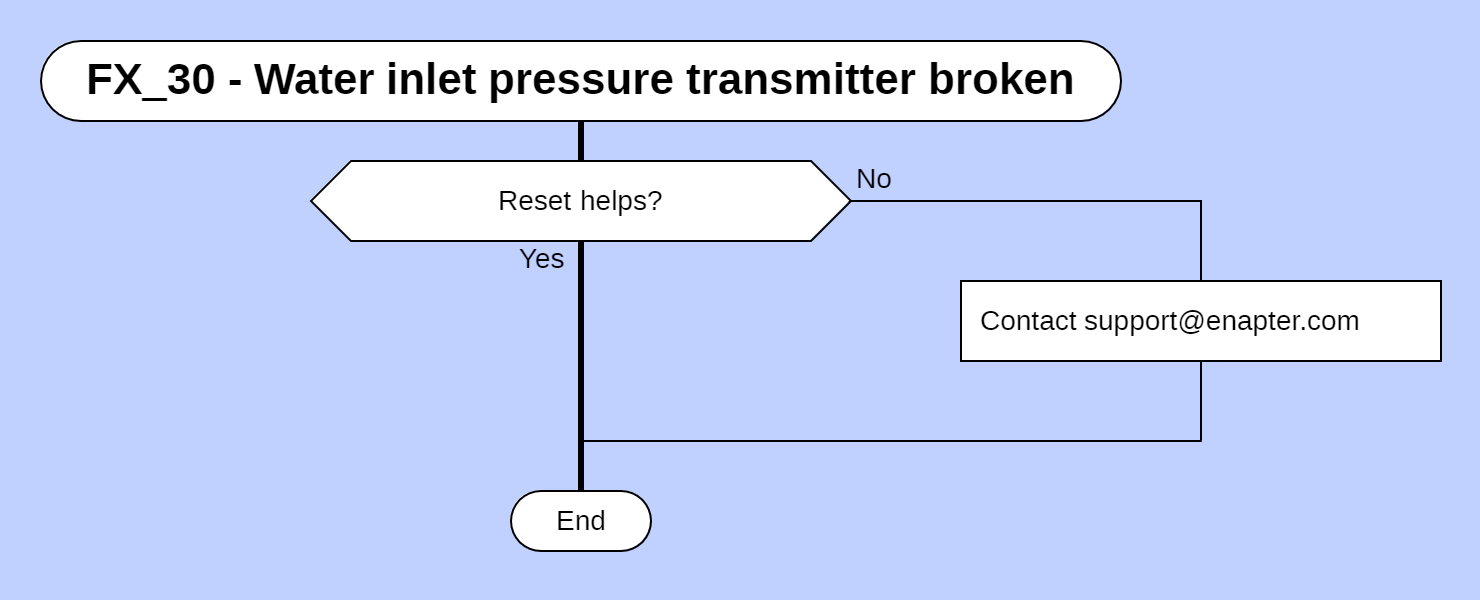

FX_30

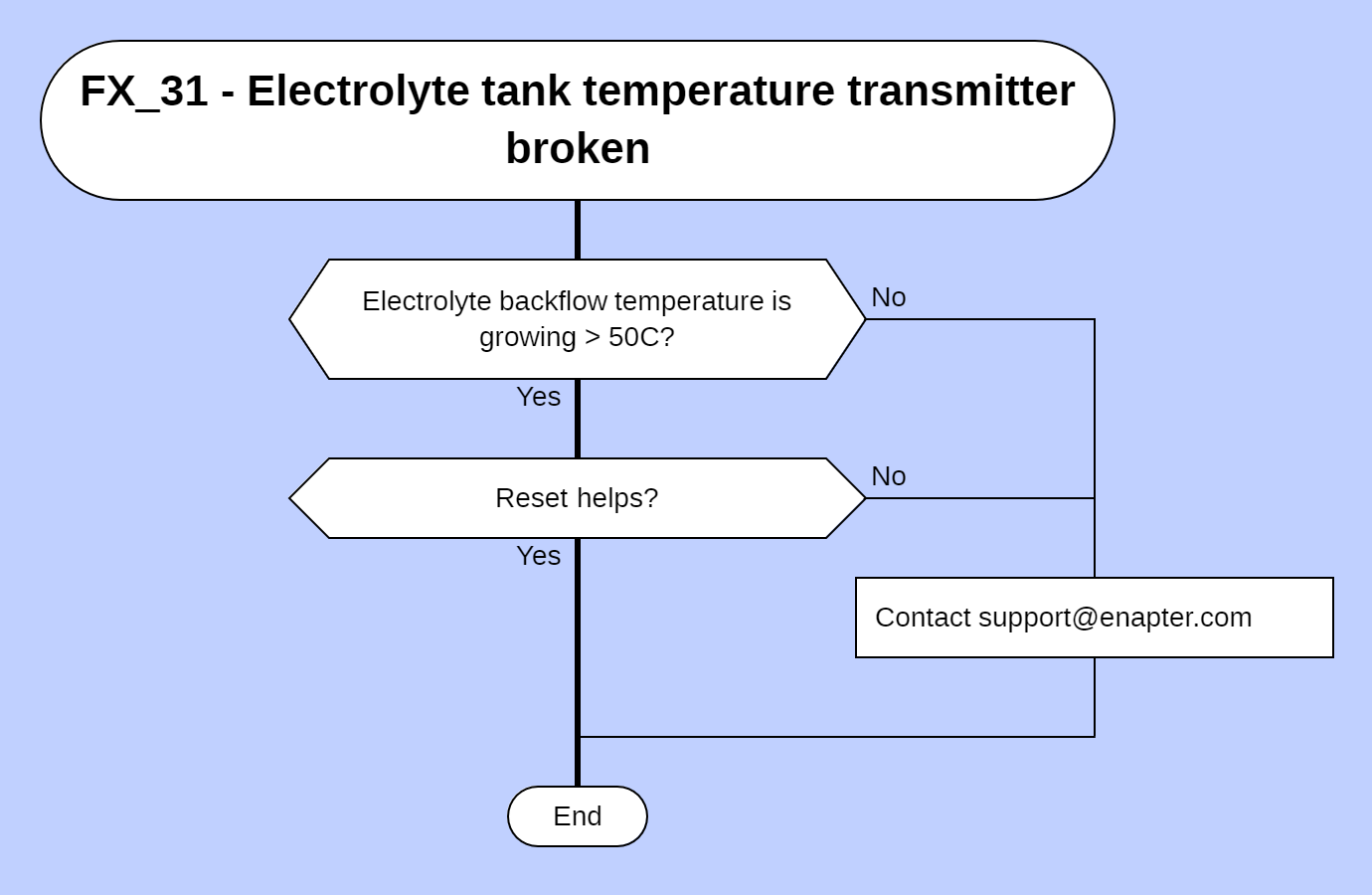

FX_31

FX_32

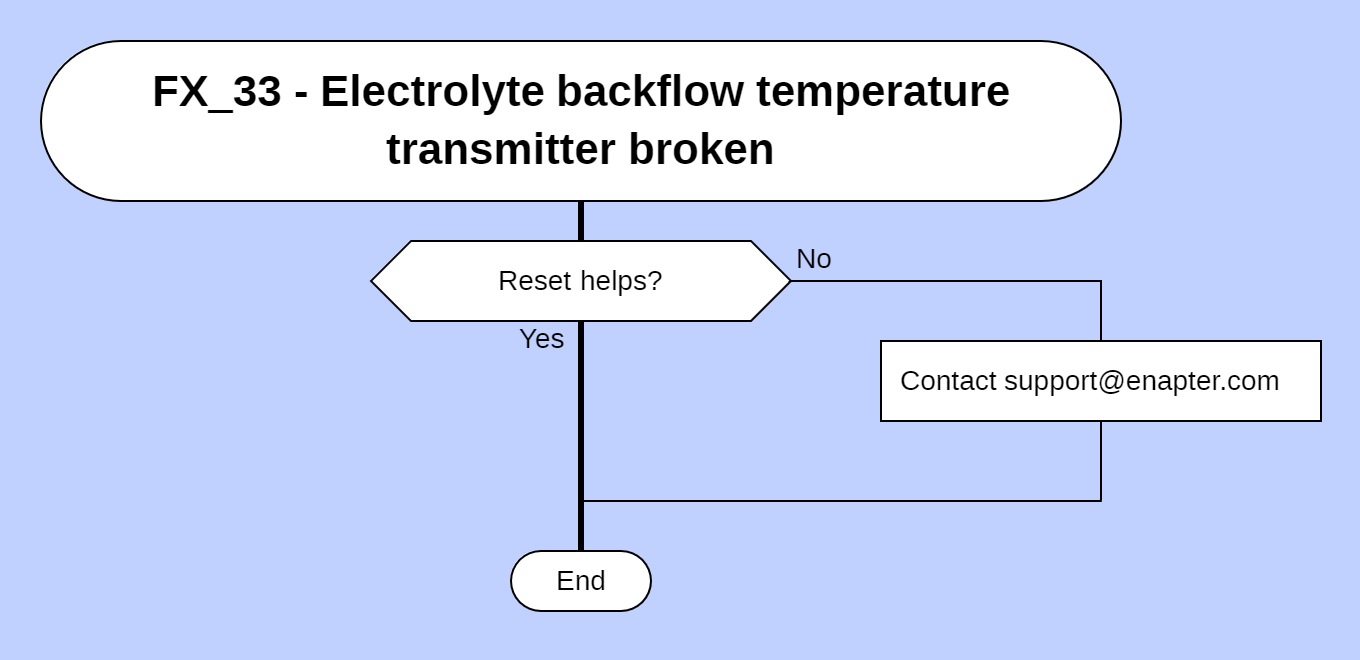

FX_33

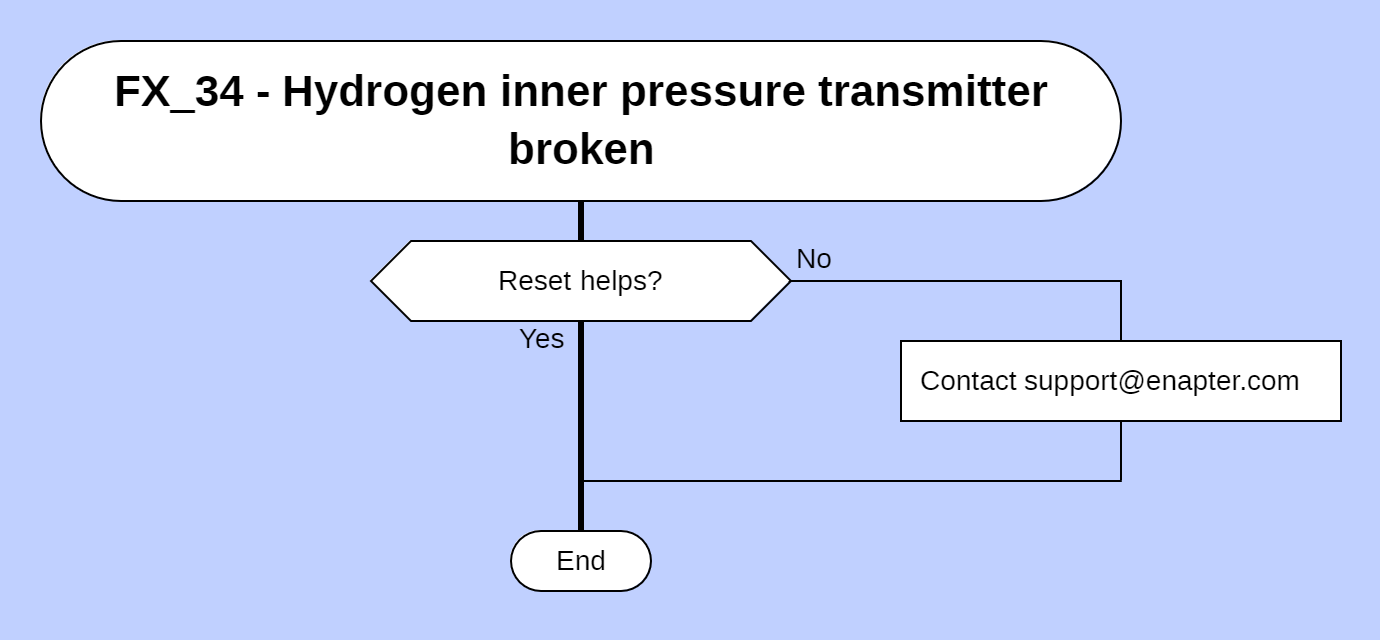

FX_34

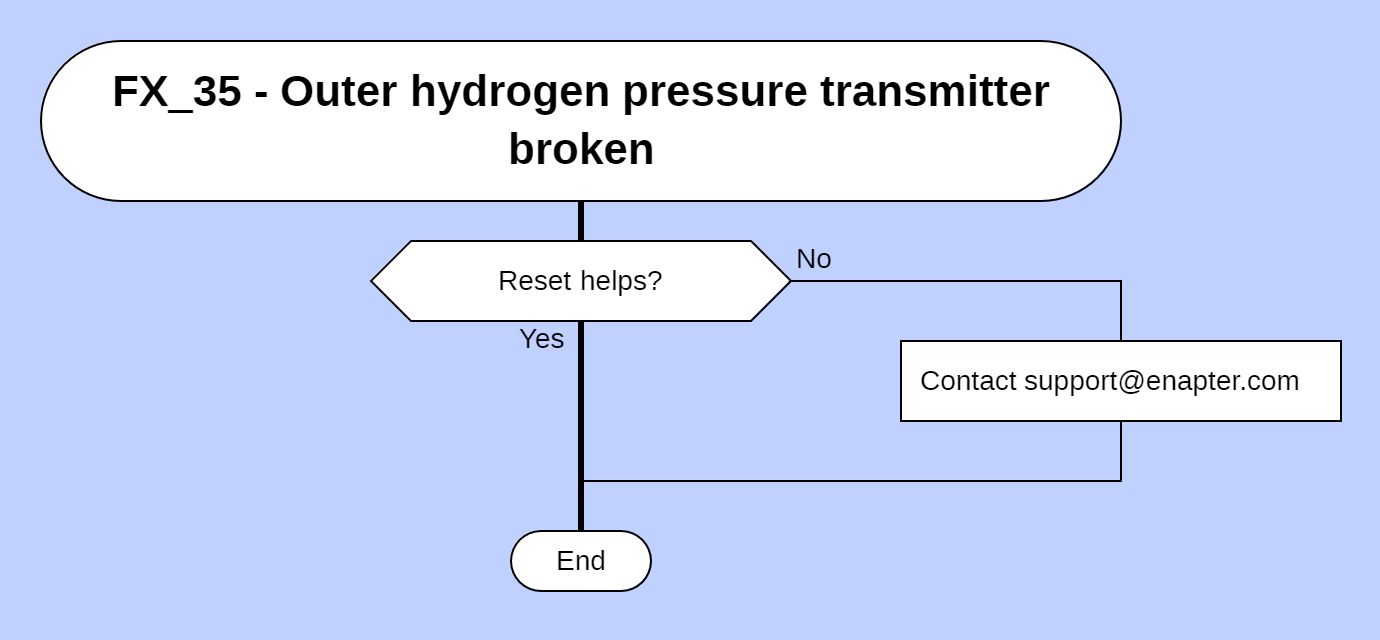

FX_35

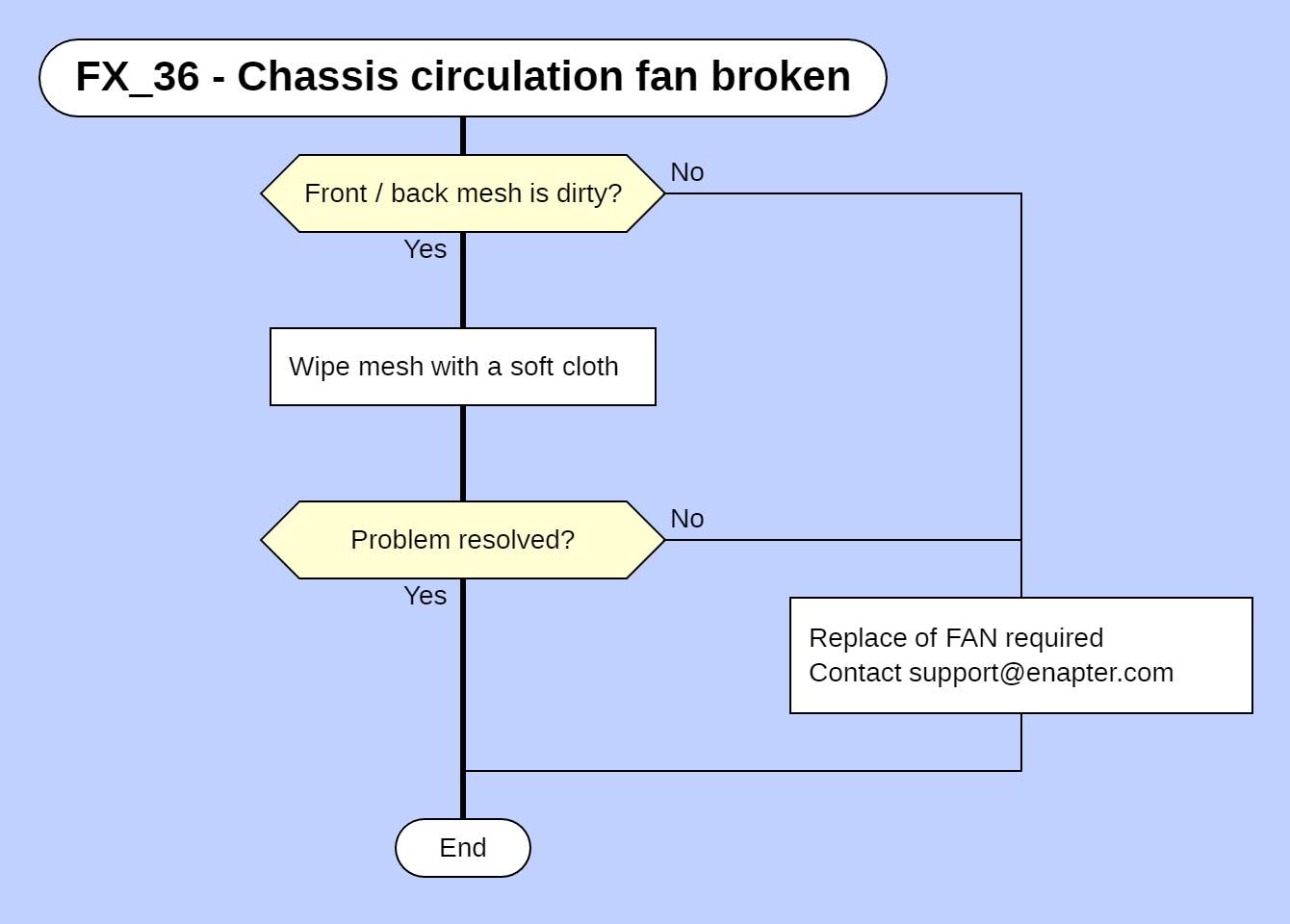

FX_36

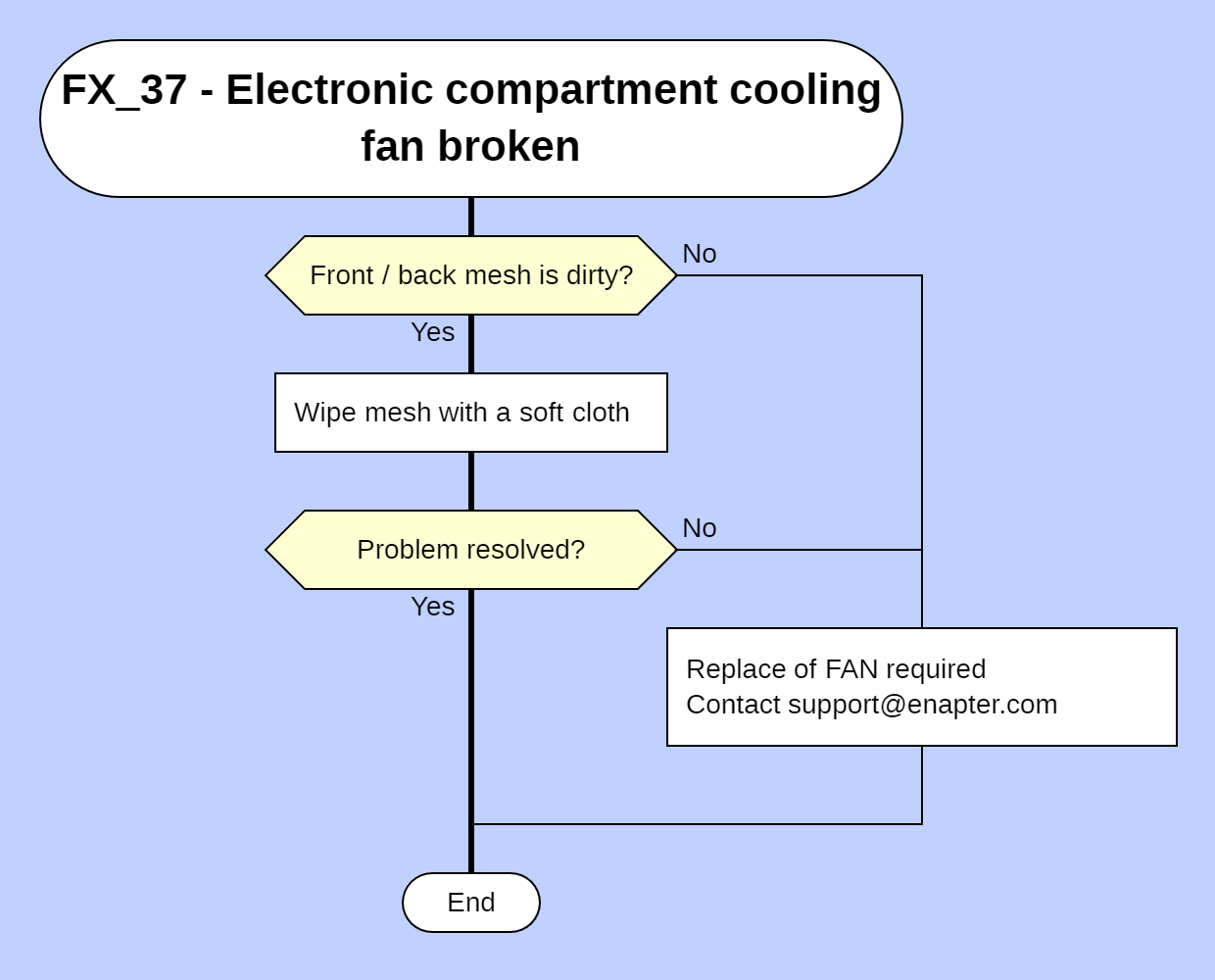

FX_37

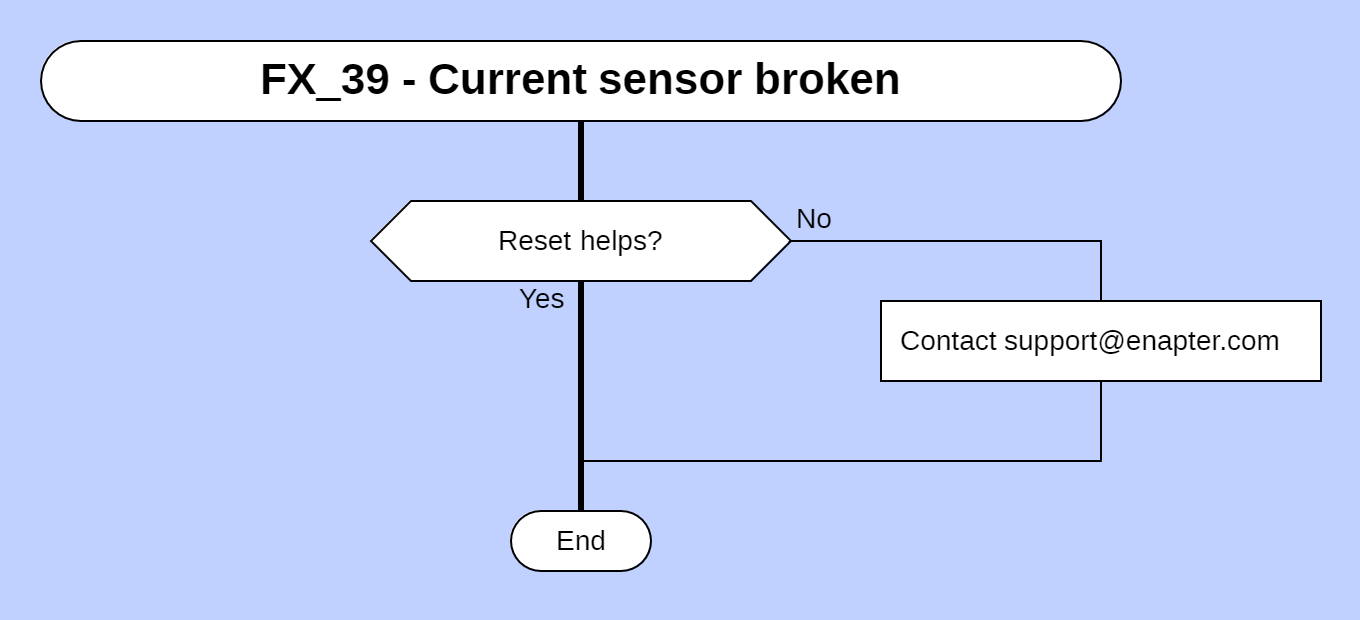

FX_39

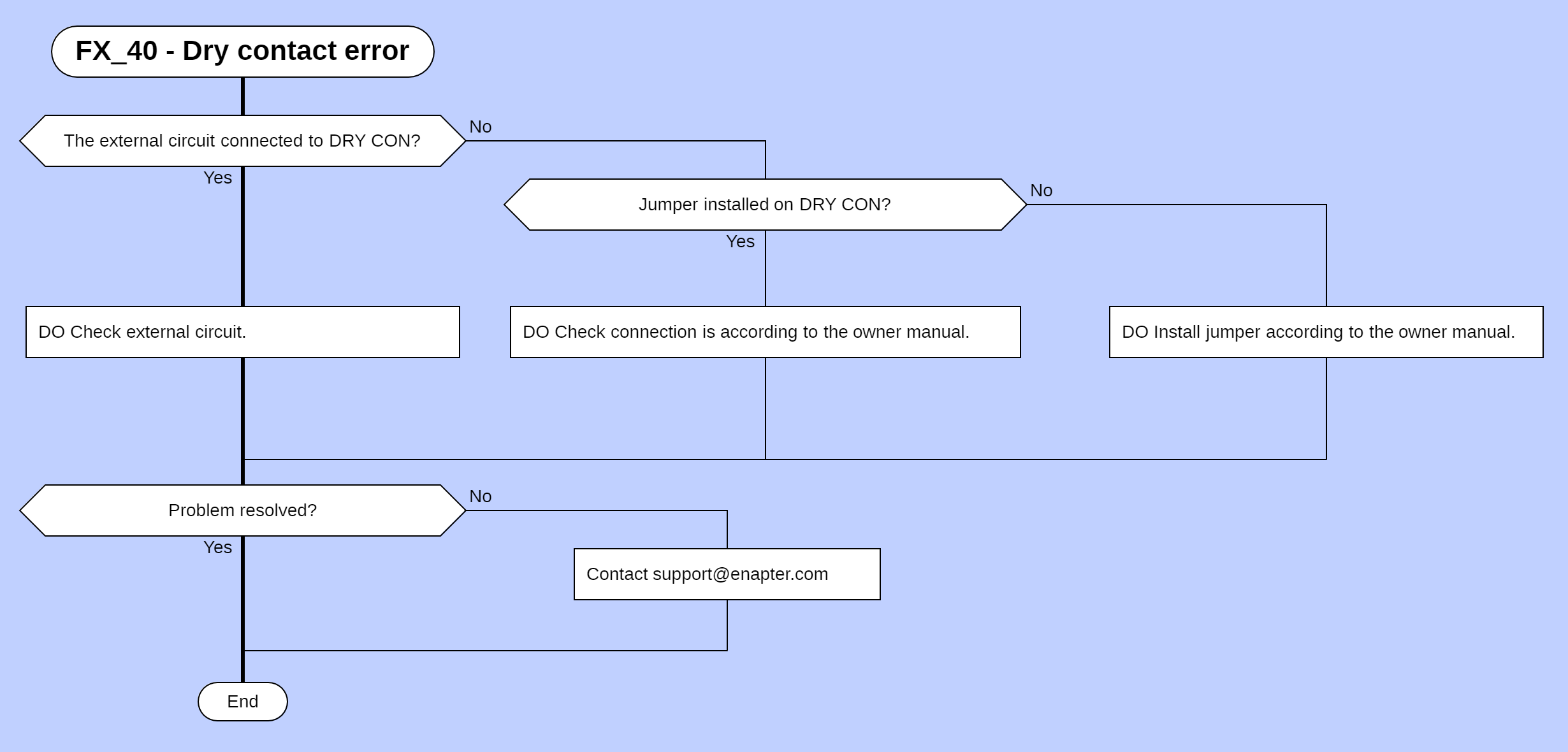

FX_40

FF_10

FL_01

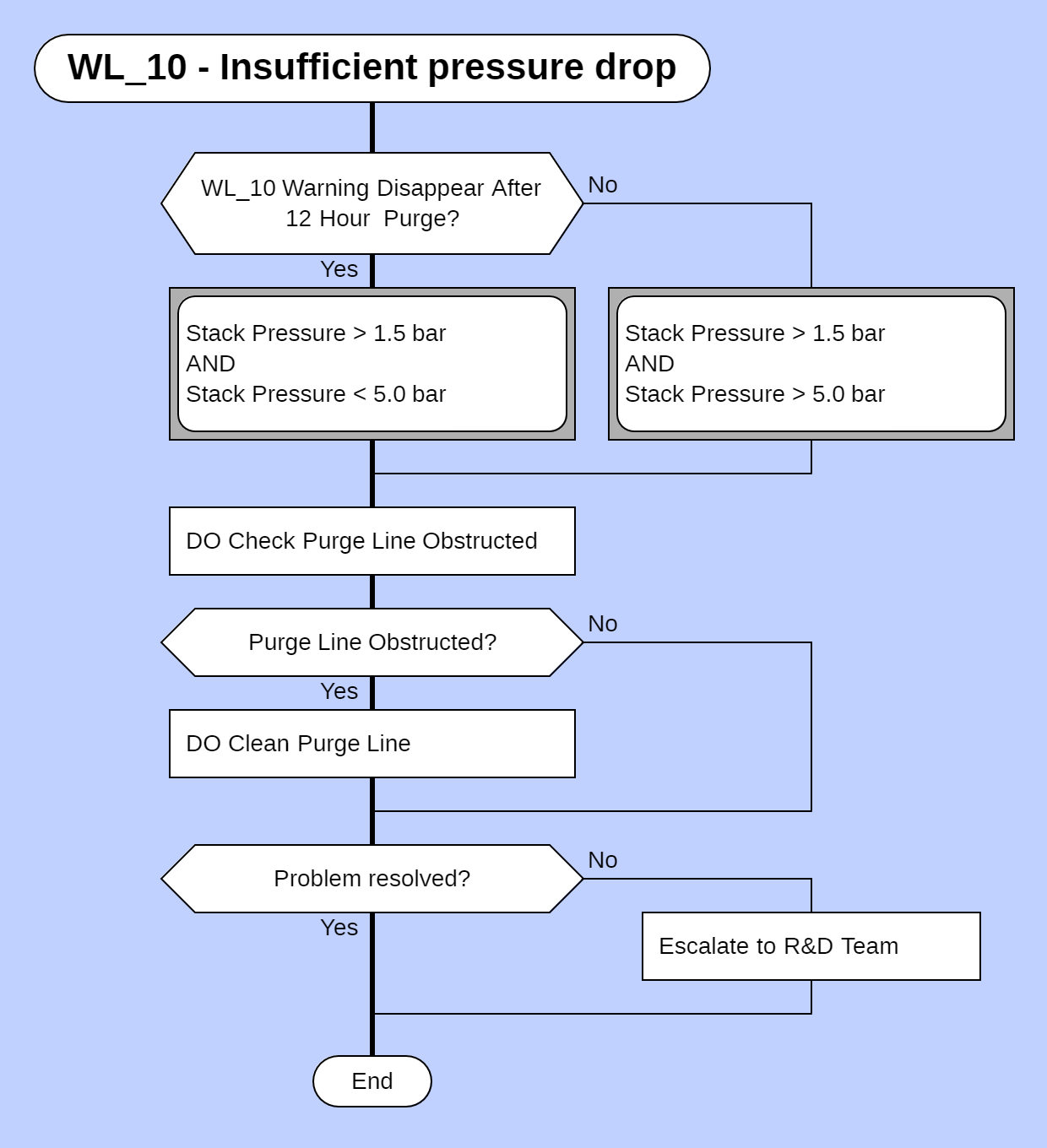

WL_10

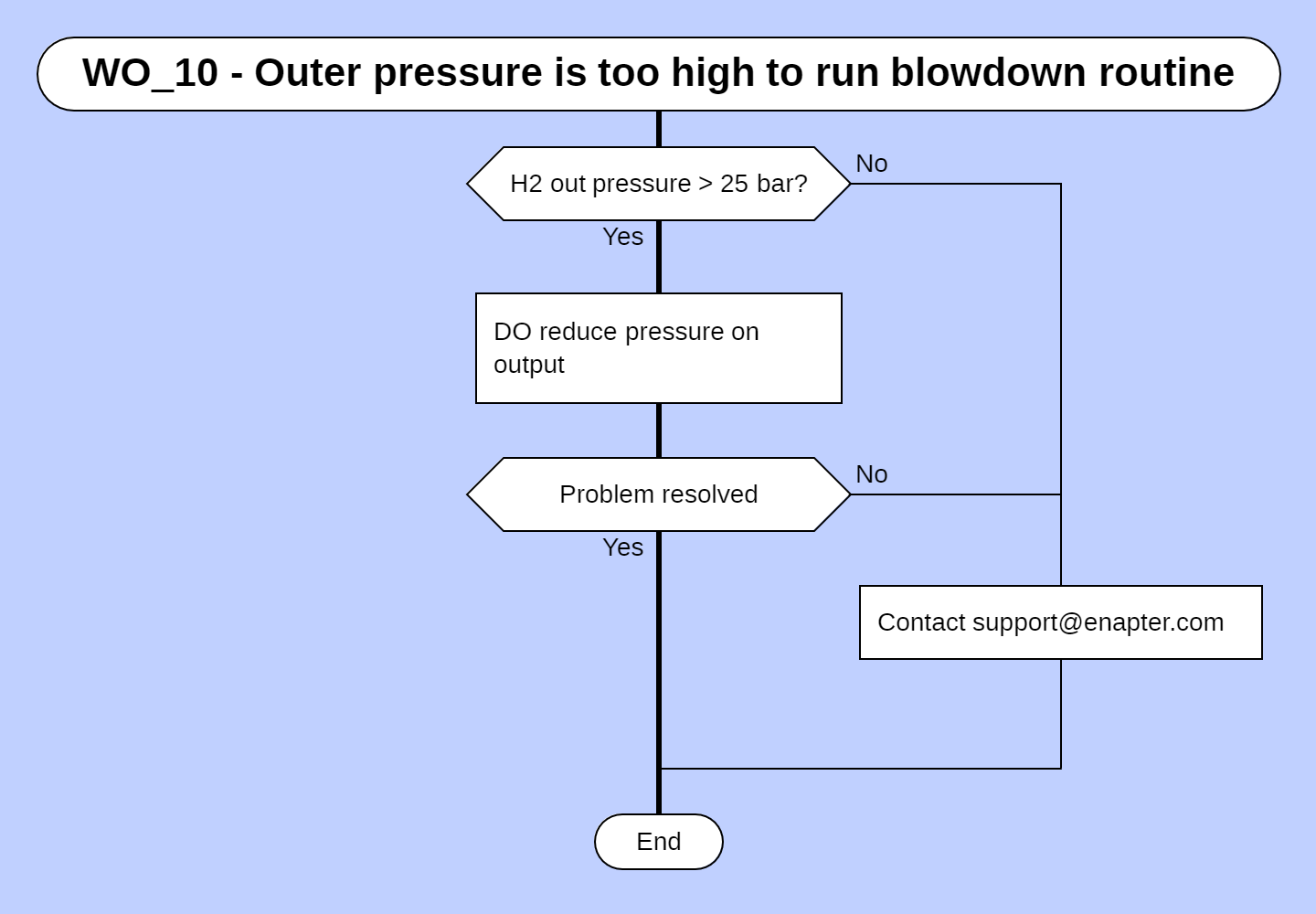

WO_10

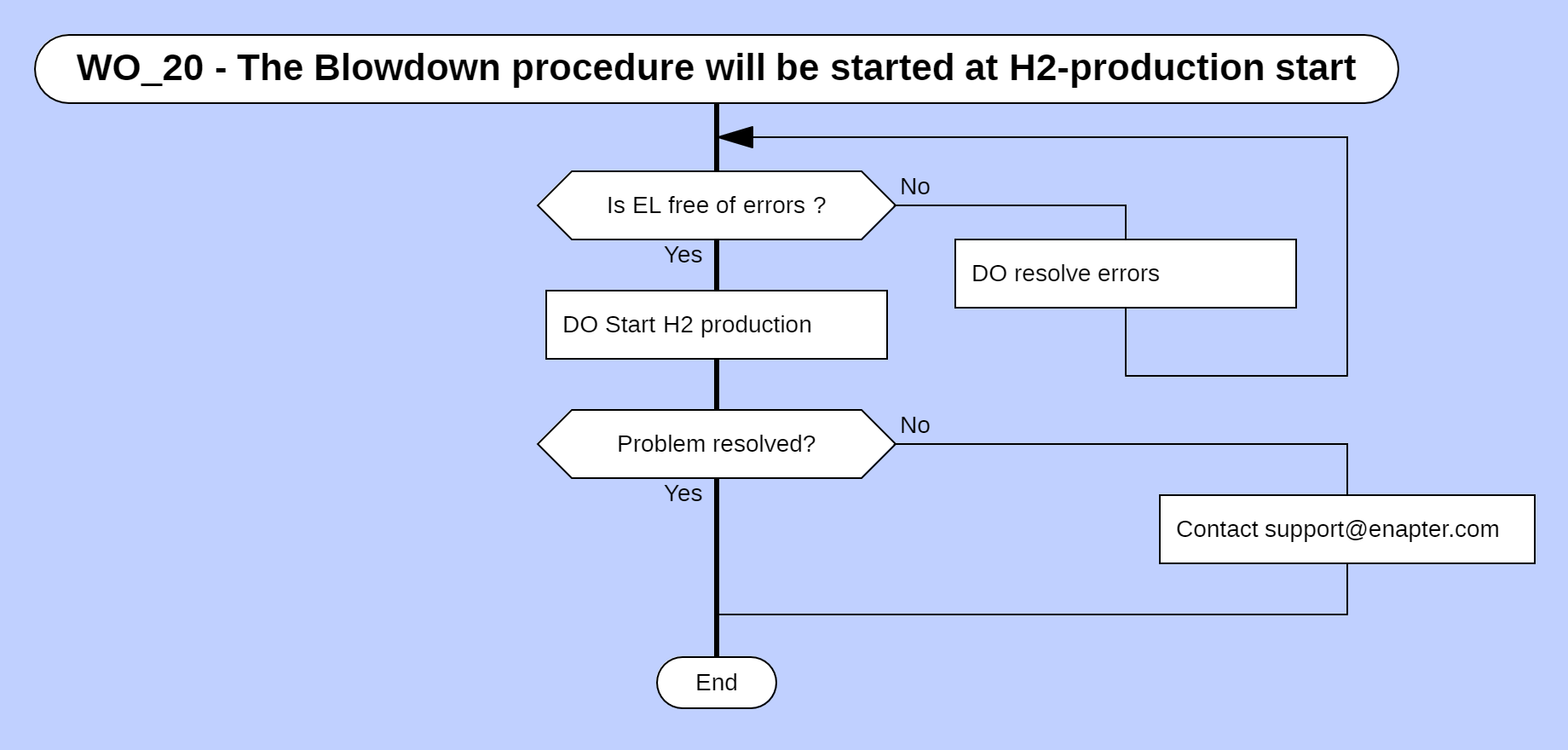

WO_20

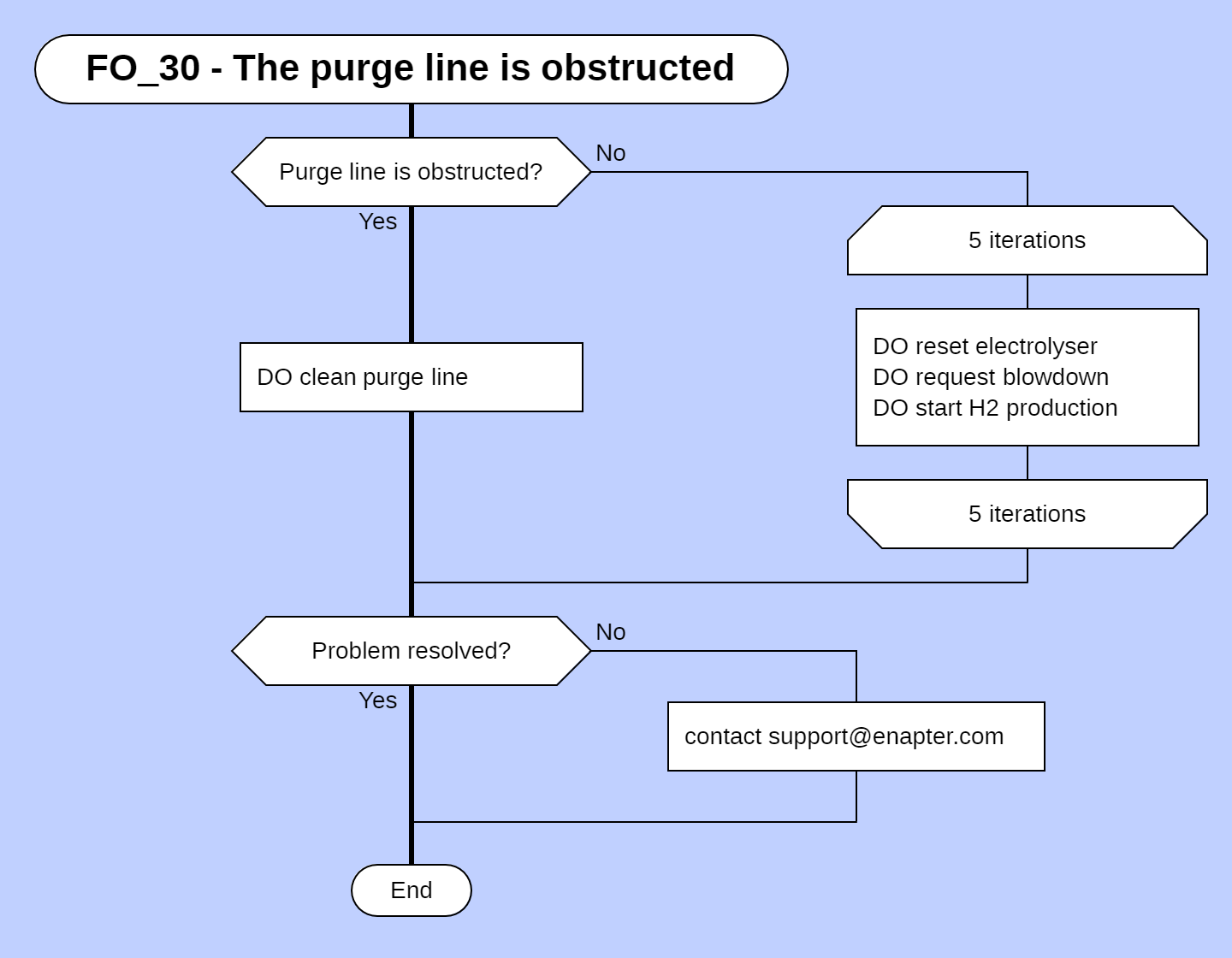

FO_30
