# ENP-RS232-MPP
Note
This module is discontinued. Monitoring and control of Watchpower enabled inverters (Voltronic, MPP Solar, etc) is possible with Enapter ENP-RS232 (opens new window) and MPP Solar Single Mode Blueprint (opens new window) or MPP Solar Parallel Mode Blueprint (opens new window)

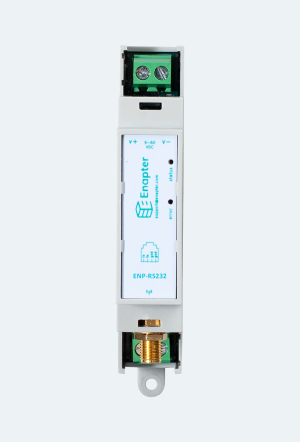

# RS-232-MPP Module
The RS-232-MPP Module monitor and manage MPP Solar Inverters with RS-232 port and Watchpower Serial Protocol. It sends the collected data to the Enapter Gateway and Cloud via secure wireless connection. The RS-232-MPP Module is based on Enapter RS-232 Module.
# Technical Data
| Parameter | Value |
|---|---|
| Voltage | 9…60 V DC |
| Standardized Wire Gauge | AWG 17 (1 sqm2) |
| Wireless Communication | Wi-Fi 2.4 GHz Bluetooth 4.0 LE |
| Integrated connection type | RJ-10/4P4C |
| Antenna connection type | SMA-F (module) – SMA-M (antenna) |
| Local signaling | 1 LED (green): steady – correct operation, blinking – establishing connection with server 1 LED (red): module error |
| Current consumption | 50 mA 12 V DC, max. 300 mA |
| Mounting | 35 mm Din rail acc. to IEC 60715 |
| Height | 90.2 mm (3.55 inch) |
| Depth | 57.5 mm (2.26 inch) |
| Width | 18.1 mm (0.71 inch) |
| Net weight | 0.050 kg |
# Environmental Conditions
| Parameter | Value |
|---|---|
| Ambient air temperature for operation | -40…+60 ℃ |
| Ambient air temperature for storage | -40…+60 ℃ |
| Relative humidity for operation | 20…90 %, without condensation |
| Relative humidity for storage | 20…90 %, without condensation |
| Operating altitude | 0…2000 m |
| Storage altitude | 0…3500 m |
| Pollution degree | 2 |
| IP degree of protection | IP20 |
# Connected device
| Parameter | Value |
|---|---|
| Type | Watchpower Serial Protocol Inverters (MPP Solar, Axpert, SILA, etc) |
| Connection to Module | RJ-10/4P4C |
| Connection to MPP Solar Inverter | RJ-45/8P8C |
| Connection Cable Length | 1.0 m |
# Dimensions
The dimensions are in mm and in brackets in inch.
# Mounting
The ENP-RS232-MPP Module must be horizontally mounted on 35 mm DIN rail according to IEC 60715.

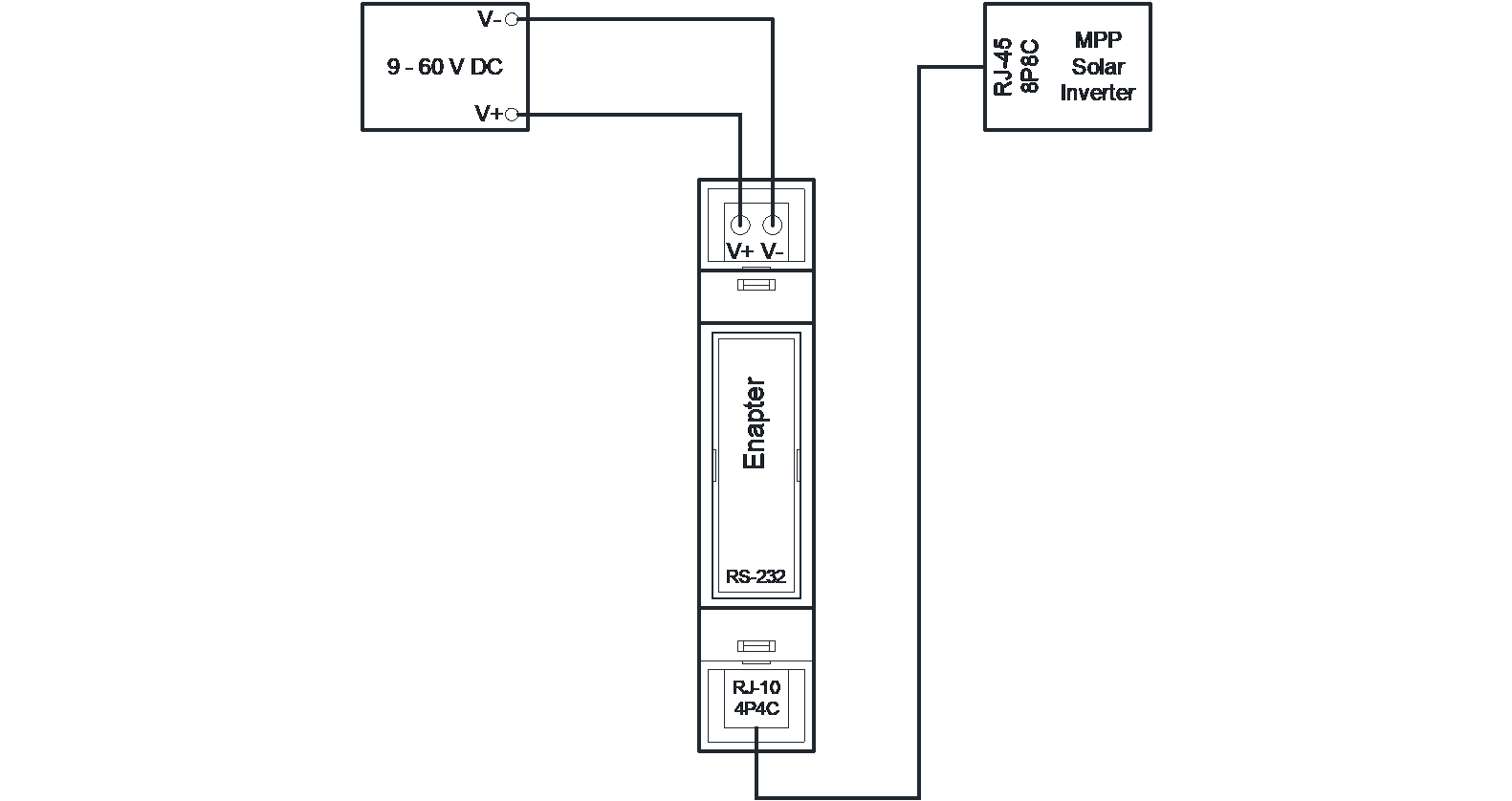

# Connection Examples
TIP
1 Amp Circuit Breaker recommended to use on power line for the ENP-RS232-MPP Module.

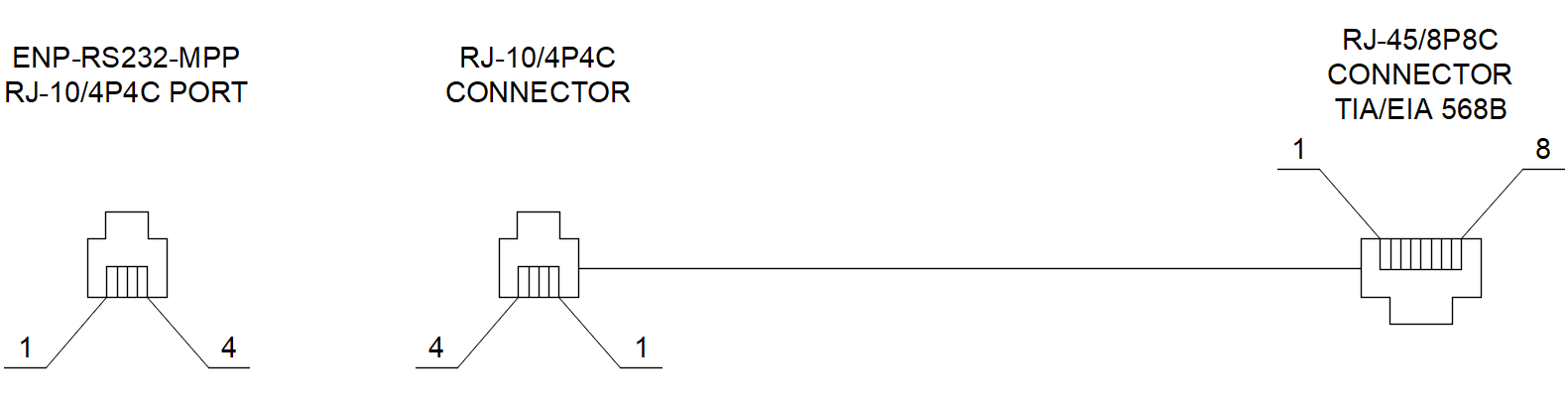

# Connection Cable Pinout
| RJ-10/4P4C CONNECTOR PIN | RJ-10/4P4C SINGAL | WIRE COLOR | RJ-45/8P8C SIGNAL | RJ-45/8P8C CONNECTOR PIN |
|---|---|---|---|---|
| 2 | Tx | White/orange stripe | Rx | 1 |
| 1 | Rx | Orange solid | Tx | 2 |
| White/green stripe | Not used | 3 | ||
| Blue solid | Not used | 4 | ||
| White/blue stripe | Not used | 5 | ||
| Green solid | Not used | 6 | ||
| 3 | Not used | White/brown stripe | Not used | 7 |
| 4 | GND | Brown solid | GND | 8 |
# Standards
Wi-Fi protocols – 802.11 b/g/n/e/i (802.11n up to 150 Mbit/s).
Bluetooth protocols – Bluetooth v4.2 BR/EDR and BLE specification.
# Warnings
WARNING
Alternating current voltage of 110 - 220 V is potentially lethal!
All works on assembly and installation should be performed only with a disconnected power supply!
The installation and assembly of electrical equipment must be carried out by electrically qualified persons.
The appearance of the product may differ from the images presented on the website or in this manual. The discrepancy between the appearance and packaging of the goods with a picture and description on the website or this manual is not an indication of poor quality goods. The manufacturer reserves the right to make changes to the design and packaging of the product without prior notice.
# Safety Instructions
Note
The installation and assembly of device must be carried out by electrician in accordance with the applicable regulations.
This device must be mounted on a DIN rail in an electrical distribution enclosure accordingly with this manual to ensure protection against contact, water and dust.
This device must not be used as part of safety-critical systems.
Edge processing scripting should be used as a convenience feature for basic non-realtime automation and not for life-sustaining or safety-critical use cases. Normal operation depend on working internet, Wi-Fi, and Enapter Cloud. Enapter is not responsible for any harms or losses incurred as a result of any failed automation.
# Resources
ENP-RS232-MPP Module Datasheet (EN)
ENP-RS232-MPP Module Quick Start Guide (EN)
ENP-RS232 Module CAD Drawings (2D)
