# Analog Output Module

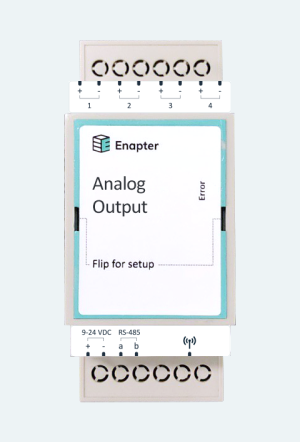

The Analog Output Module is used to control analog devices with a 0…10 V signal, RS-485 interface and Wireless connection is used for communication with the module. For example: a valve, a sensor or a dimmer. The Analog Output Module sends the collected data to the Enapter Gateway and Cloud via secure wireless connection.

# Technical Data

Parameter Value
Voltage 9…24 V DC
Connected sensors number 4 x Analog sensors
Wireless Communication Wi-Fi 2.4 GHz
Bluetooth 4.0 LE
Integrated connection type Isolated RS-485 interface
Antenna connection type SMA-F (module) – SMA-M (antenna)
Local signaling 1 LED (green): steady – correct operation, blinking – establishing connection with server
1 LED (red): module error
Current consumption 50 mA 12 V DC, max. 300 mA
Mounting 35 mm Din rail acc. to IEC 60715
Height 90.2 mm (3.55 inch)
Depth 57.5 mm (2.26 inch)
Width 36.3 mm (1.43 inch)
Net weight 0.090 kg

# Environmental Conditions

Parameter Value
Ambient air temperature for operation -40…+60 ℃
Ambient air temperature for storage -40…+60 ℃
Relative humidity for operation 20…90 %, without condensation
Relative humidity for storage 20…90 %, without condensation
Operating altitude 0…2000 m
Storage altitude 0…3500 m
Pollution degree 2
IP degree of protection IP20

# Connected Device

Parameter Value
Type Valve
Sensor
Dimmer
Connection Screw terminal block
Signal 0…10 V
4…20 mA
Signal resolution 12 bit
Galvanic isolation Group, from controller circuits

# Dimensions

The dimensions are in mm and in brackets in inch.

ENP-AO4_Dimensions

# Mounting

The ENP-AO4 Module must be horizontally mounted on 35 mm DIN rail according to IEC 60715.

ENP-AO4_Mounting

# Connection Example

ENP-AO4_Wiring

TIP

1 Amp Circuit Breaker recommended to use on power line for the ENP-AO4 Module.

# Standards

Wi-Fi protocols – 802.11 b/g/n/e/i (802.11n up to 150 Mbit/s).

Bluetooth protocols – Bluetooth v4.2 BR/EDR and BLE specification.

# Warnings

WARNING

  • Alternating current voltage of 110 - 220 V is potentially lethal!

  • All works on assembly and installation should be performed only with a disconnected power supply!

  • The installation and assembly of electrical equipment must be carried out by electrically qualified persons.

The appearance of the product may differ from the images presented on the website or in this manual. The discrepancy between the appearance and packaging of the goods with a picture and description on the website or this manual is not an indication of poor quality goods. The manufacturer reserves the right to make changes to the design and packaging of the product without prior notice.

# Safety Instructions

Note

  • The installation and assembly of device must be carried out by electrician in accordance with the applicable regulations.

  • This device must be mounted on a DIN rail in an electrical distribution enclosure accordingly with this manual to ensure protection against contact, water and dust.

  • This device must not be used as part of safety-critical systems.

  • Edge processing scripting should be used as a convenience feature for basic non-realtime automation and not for life-sustaining or safety-critical use cases. Normal operation depend on working internet, Wi-Fi, and Enapter Cloud. Enapter is not responsible for any harms or losses incurred as a result of any failed automation.

# Lua API

Lua API lets to interact with 3rd party devices via our UCMs (opens new window). It includes functions that implement various kinds of interaction. For more information please visit Enapter Developer Toolkit (opens new window).

# Resources

ENP-AO4 Module Datasheet (EN)

ENP-AO4 Module Quick Start Guide (EN)

ENP-AO4 Module CAD Drawings (2D)

ENP-AO4 Module CAD Drawings (3D DWG)

ENP-AO4 Module CAD Drawings (3D STP)
