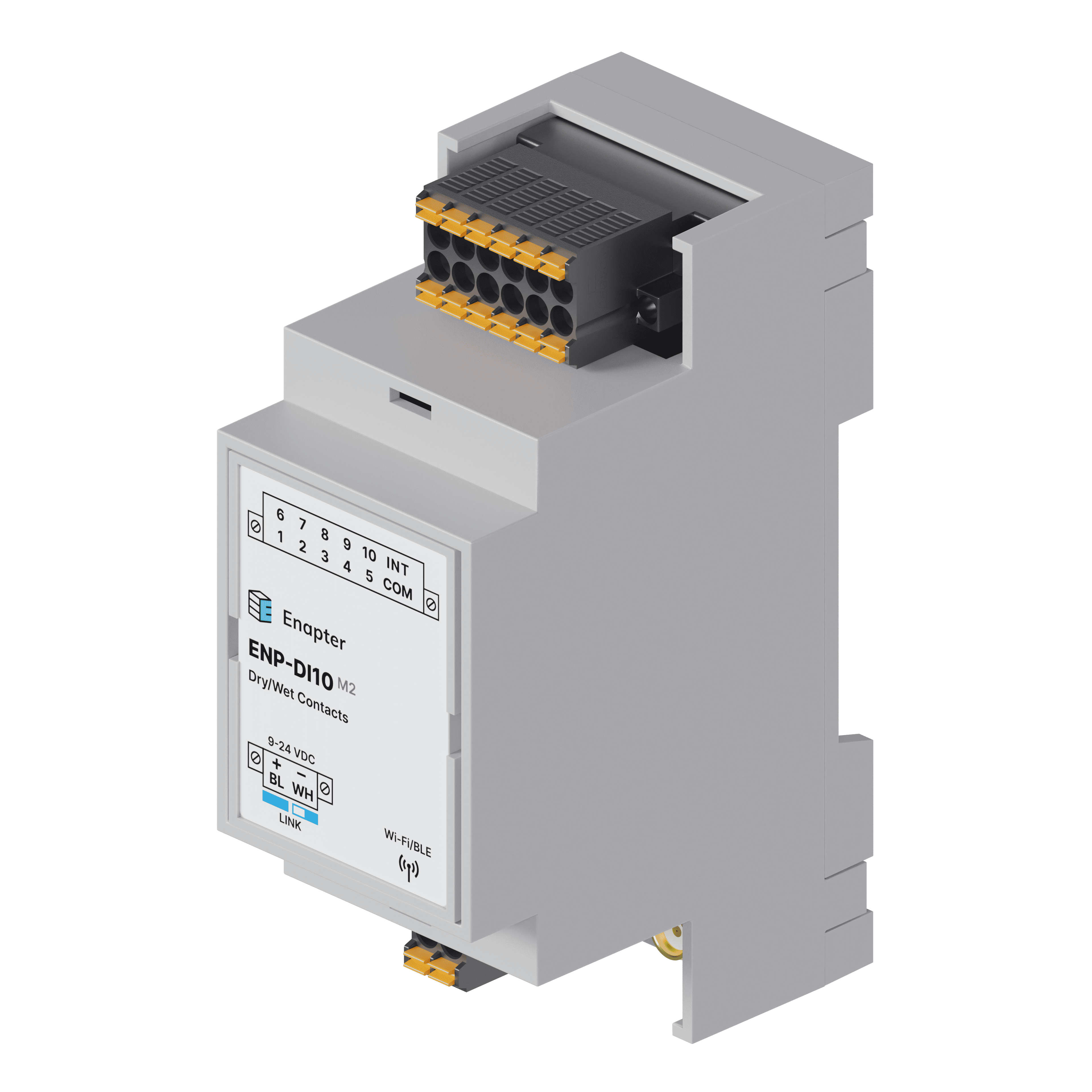

The ENP-DI10 M2 module has 10 universal digital inputs, each supporting dry/wet contact modes. Each input features an independent 32-bit pulse counter with persistent memory. The module is designed for connecting pulse meters, buttons, switches, and other devices.

The ENP-DI10 M2 module features a wired bus interface based on the Enapter Link protocol, enabling reliable communication with other modules. It also includes wireless Wi-Fi capabilities for secure data transmission and control via the Enapter Gateway and Enapter Cloud.

Resources

	Datasheet	Quick Start Guide	Certification	Images

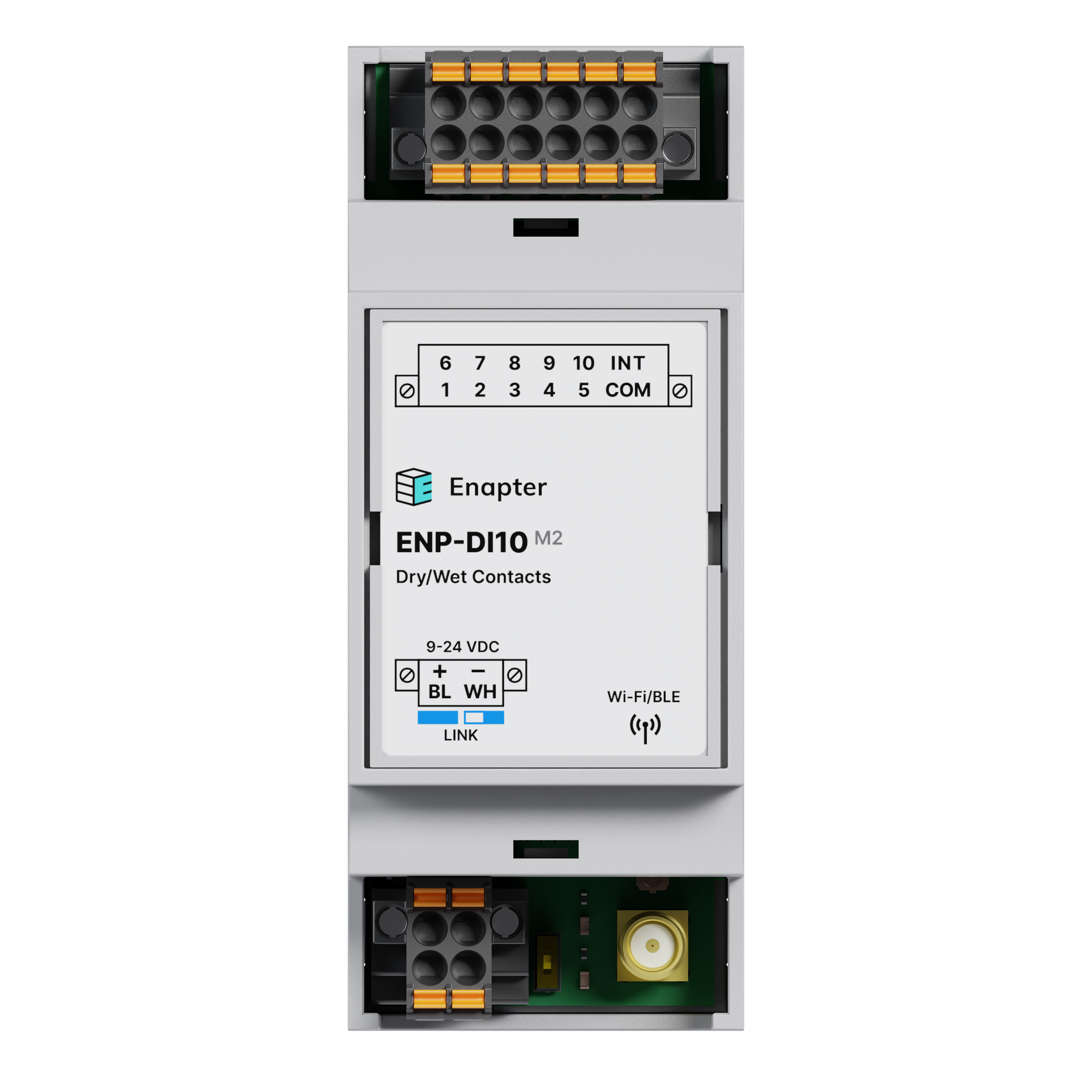

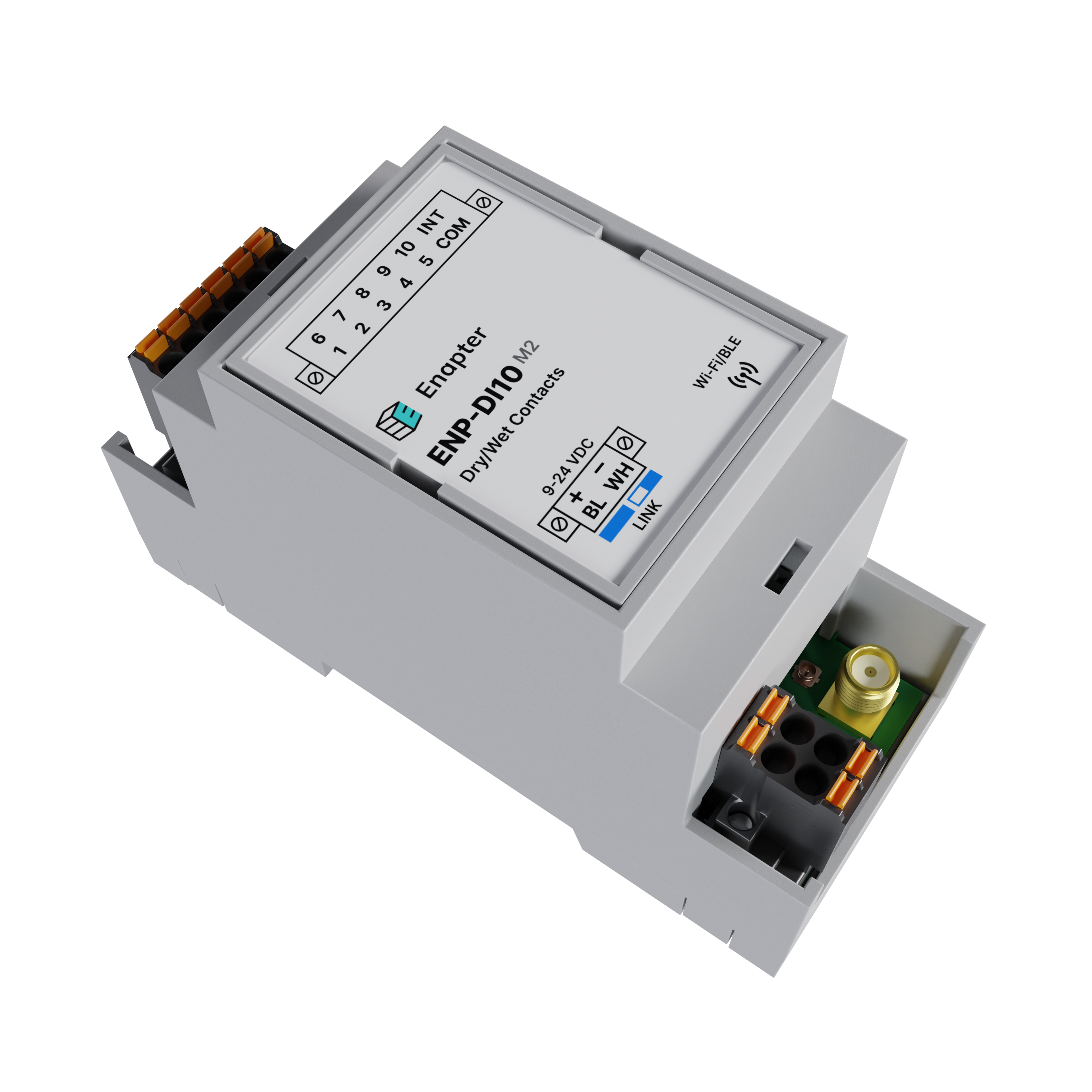

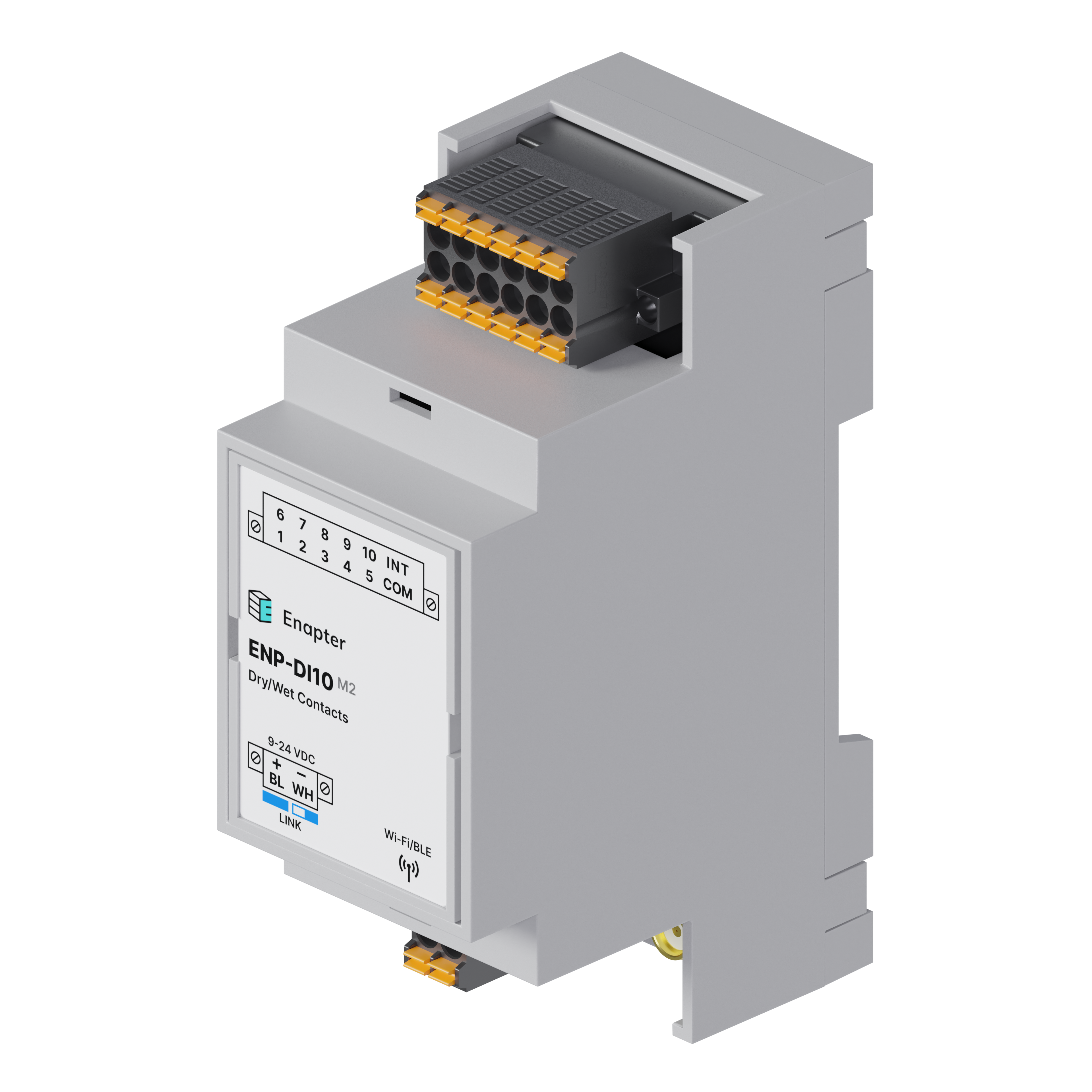

ENP-DI10 M2	EN	EN	CE RoHS	Front View Isometric Table View

Note

The wireless module integrated into this device is certified in accordance with applicable standards. The relevant certificates can be downloaded from the archive.

Technical Data

Parameter	Value
Power supply	Voltage Range: 9 - 24 VDC
	Protections: - Reverse polarity protection - Crowbar overvoltage protection (resettable fuse)
Power consumption	Full Load: 10 W, Peak
Digital Inputs	Isolation: - Galvanically isolated from the power supply and other interfaces. Dry mode (Shorting the input to the INT terminal): - Trigger current: ~1 mA - "Wetting" voltage: 12 V Wet mode (External voltage between the input and the COM terminal): - Voltage: 12-24 V - Signal present: ~9 V - No signal: ~5 V
Digital counters	- 10x 32-bit counters - Values are automatically saved in persistent memory during power outages
Input delay (Debounce timer)	- Customizable, from 0.1ms to 100ms (default: 0.1 ms)
Wireless Communication	Wi-Fi 2.4 GHz, IEEE 802.11b/g/n, 20 MHz/40 MHz bandwidth, data rate up to 150 Mbps Bluetooth v5: Bluetooth LE, Bluetooth mesh, data rate up to 2 Mbps Power: Up to +20 dBm
Wired Interface	Protocols Supported: Enapter Link Baud Rate: Up to 0.5 Mbps Isolation: Galvanically isolated, individual isolation Internal Bus Terminator*: 120 Ω, enabled via DIP switch (default: off)
Local signaling	1 LED - Status (Green): - Steady: Correct operation - Blinking: Establishing connection with the server (Enapter Gateway or Cloud)
	1 LED – Error (Red): -Indication of module error or internal running logic error, can be programmed by the user (see programming manual)
Mounting	35 mm Din rail acc. to IEC 60715
Height	90.2 mm (3.55 inch)
Depth	57.5 mm (2.26 inch)
Width	36.3 mm (1.43 inch)
Net weight	0.090 kg

^* – The terminator is a resistor used at the ends of a differential data bus, to reduce signal reflections. The module has a built-in terminator, which can be enabled if the device is positioned at the end of the bus. However, in some cases, even if the device is at the end of the bus, enabling the terminator may degrade or disrupt communication. This depends on various factors, such as baud rate, line length, signal rise time, and the characteristics of connected third-party equipment, which cannot be predicted in advance.

General recommendation: Try enabling the terminator if communication is unstable. For short line lengths (less than one meter) and relatively low baud rates (such as 115200), enabling the terminator is likely unnecessary.

Environmental Conditions

Parameter	Value
Ambient air temperature for operation	-40 – +60 °C
Ambient air temperature for storage	-40 – +60 °C
Relative humidity for operation	20 – 90 %, without condensation
Relative humidity for storage	20 – 90 %, without condensation
Operating altitude	0 – 2000 m
Storage altitude	0 – 3500 m
Pollution degree	2
IP degree of protection	IP20

Connection

Parameter	Value
Wire cross-section	Power Supply / Enapter Link / Digital Input Connection: Wire Size: 0.14 to 1.5 mm2 / AWG 26 to 16 (use appropriate wire size for the output connected load) Strip Length: 10 mm Temperature resistance: -40 – +105 °C / -40 – +221 °F Push-in connection technology, fast wiring
Antenna connection type	SMA-F (module) – SMA-M (antenna), 2.4 GHz

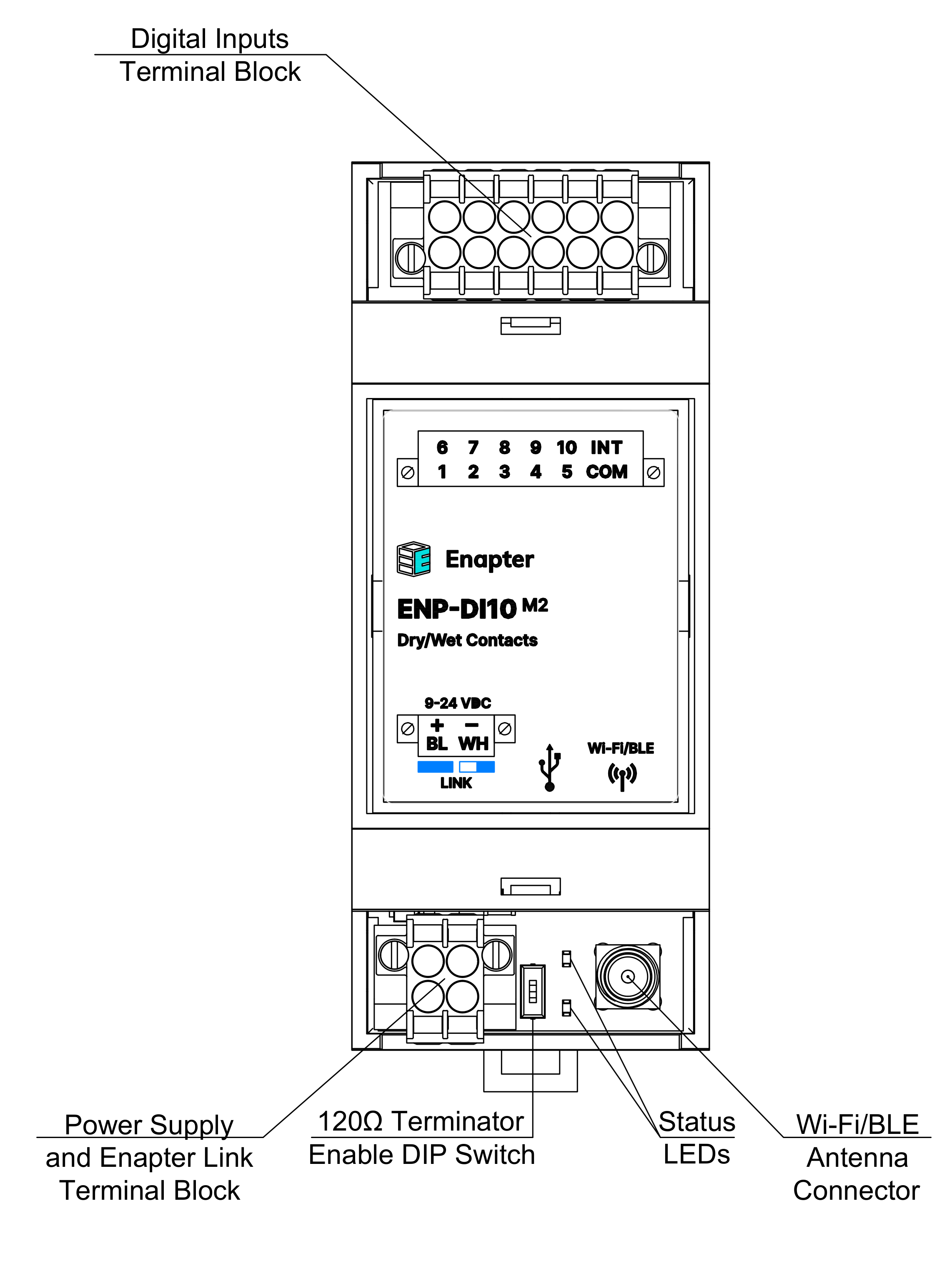

Module Overview

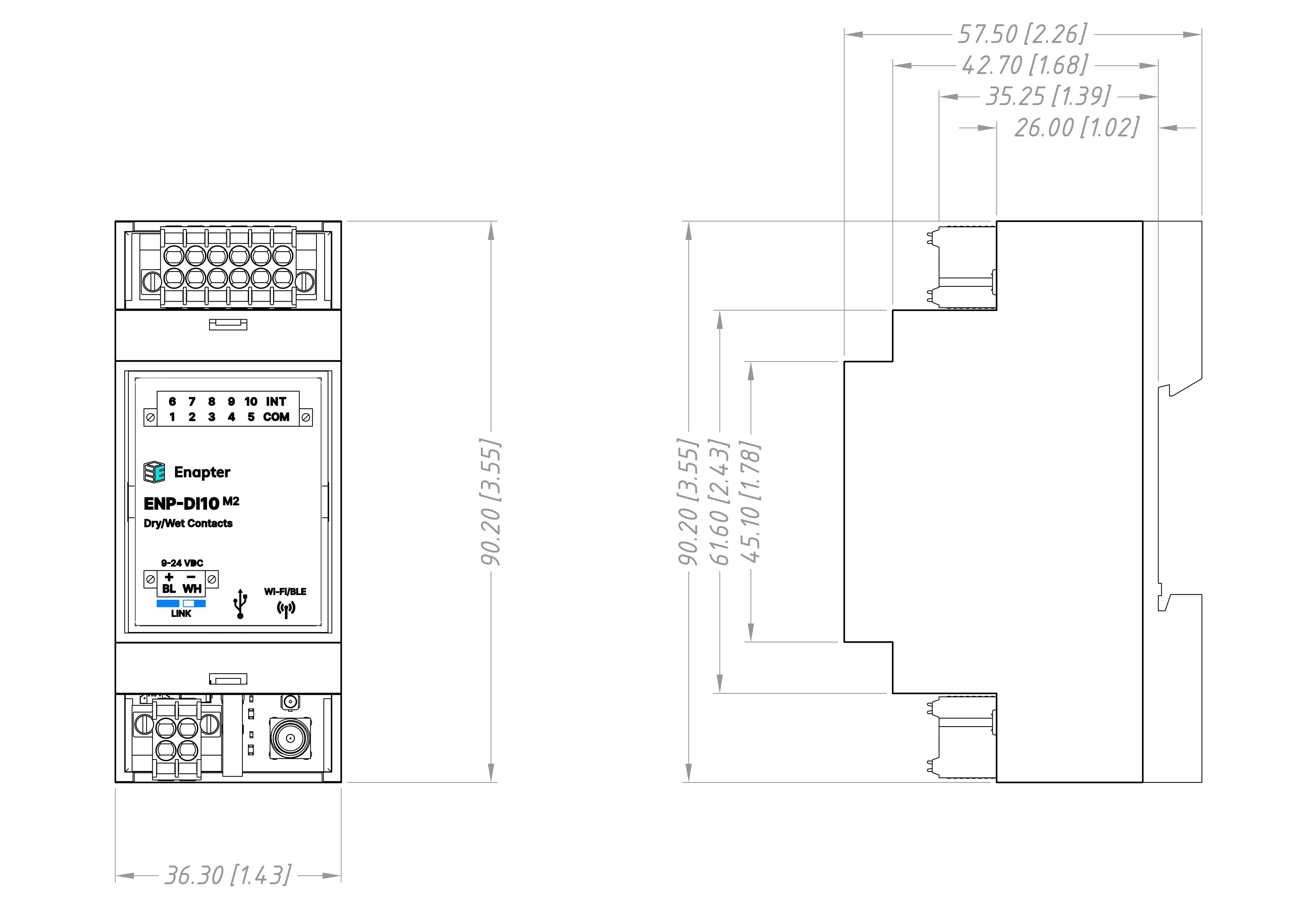

Dimensions

The dimensions are in mm and in brackets in inch.

Wired Connection Example

Here is an example connection where the sixth channel is used in dry contact mode, and the fifth channel is used in wet contact mode.

The module is connected to the Enapter Link bus alongside other Enapter modules. The Enapter Link bus requires terminators at both ends, which is built into the module and can be enabled via a DIP switch if the module is positioned at the end of the bus. (Note that while separate resistors are shown in the diagram, they should not be used if the internal terminator is enabled.)

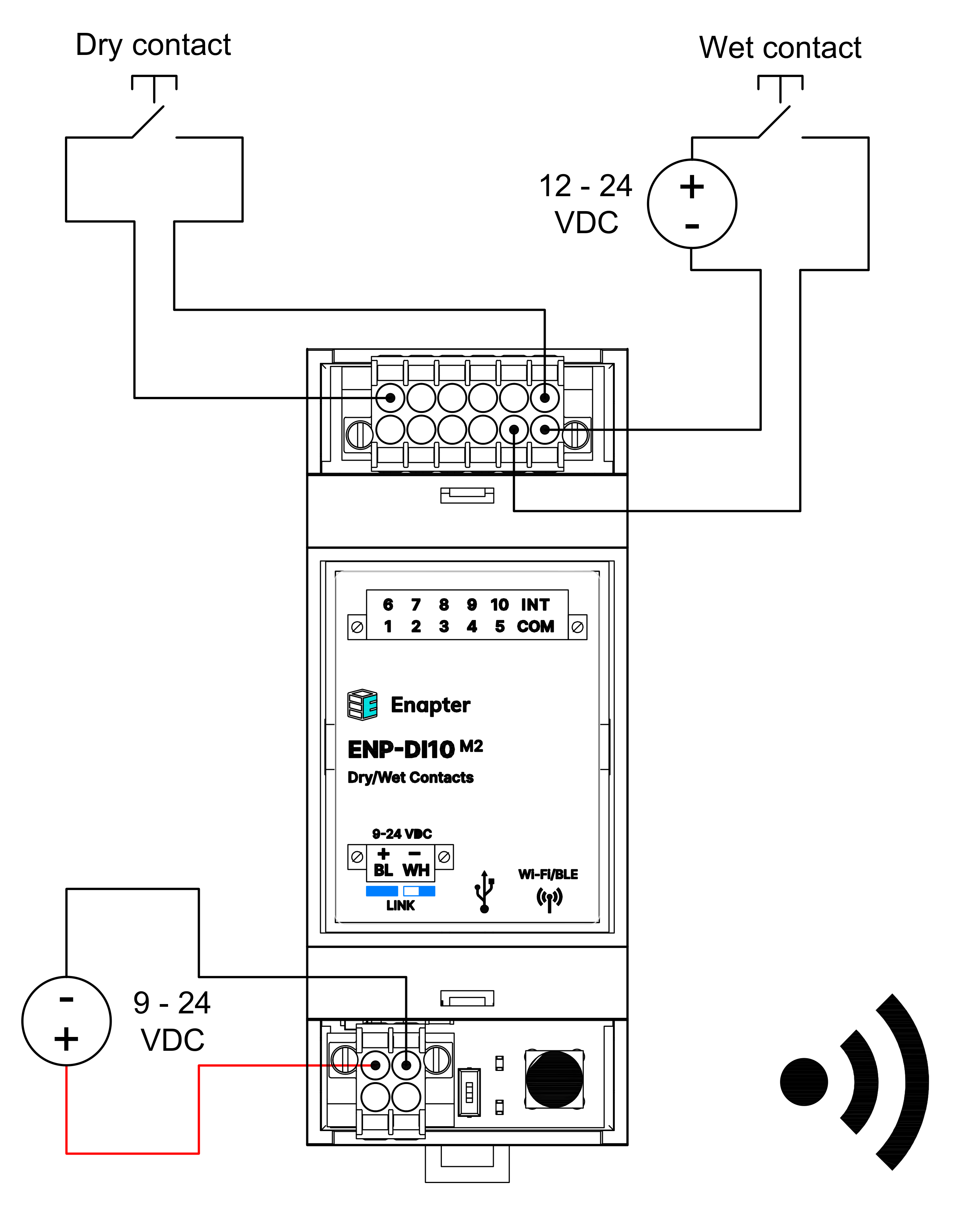

Wireless Connection Example

Here you can find an example of a wireless connection, where the module is connected to the same digital inputs as in the previous example, where the sixth channel is used in dry contact mode, and the fifth channel is used in wet contact mode. However, unlike the wired Enapter Link connection, the setup and data exchange occur through a secure Wi-Fi network. For instructions on configuring the wireless connection, please refer to the Quick Start Guide.

Warnings

WARNING

• Alternating current voltage of 110 - 220 V is potentially lethal!

• All works on assembly and installation should be performed only with a disconnected power supply!

• The installation and assembly of device must be carried out by electrician in accordance with the applicable regulations.

Safety Instructions

WARNING

• This device must be mounted on a DIN rail in an electrical distribution enclosure accordingly with this manual to ensure protection against contact, water and dust.

• This device must not be used as part of safety-critical systems.

• Edge processing scripting should be used as a convenience feature for basic non-realtime automation and not for life-sustaining or safety-critical use cases. Normal operation depends on working internet, Wi-Fi, and Enapter Cloud. Enapter is not responsible for any harms or losses incurred as a result of any failed automation.
