# 1D Communication Modules Factory Reset Guide

  1. Switch off power supply of the module using breaker. On the picture below breaker marked 24V is switched off. Check that LED on power supply is off.

    Factory reset 1D figure 1

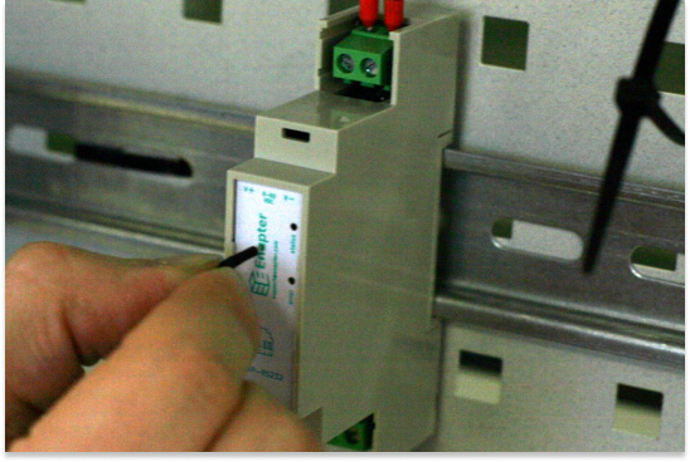

  2. Insert a needle into small hole inside letter “a” in Enapter logo. Press and hold “Reset” button and turn on power supply using breaker at the same time.

    Factory reset 1D figure 2

    Factory reset 1D figure 3

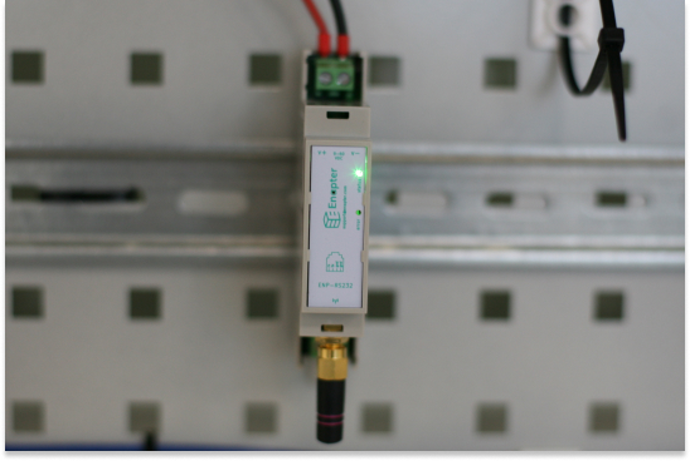

  3. Factory reset succeeded if LED is lighted up.

    Factory reset 1D figure 4
