# Electrolyser 4.1 (EL 4.1)

Our plug & play AEM electrolysers turn renewable electricity and water into low-cost green hydrogen. At any scale, for any application.

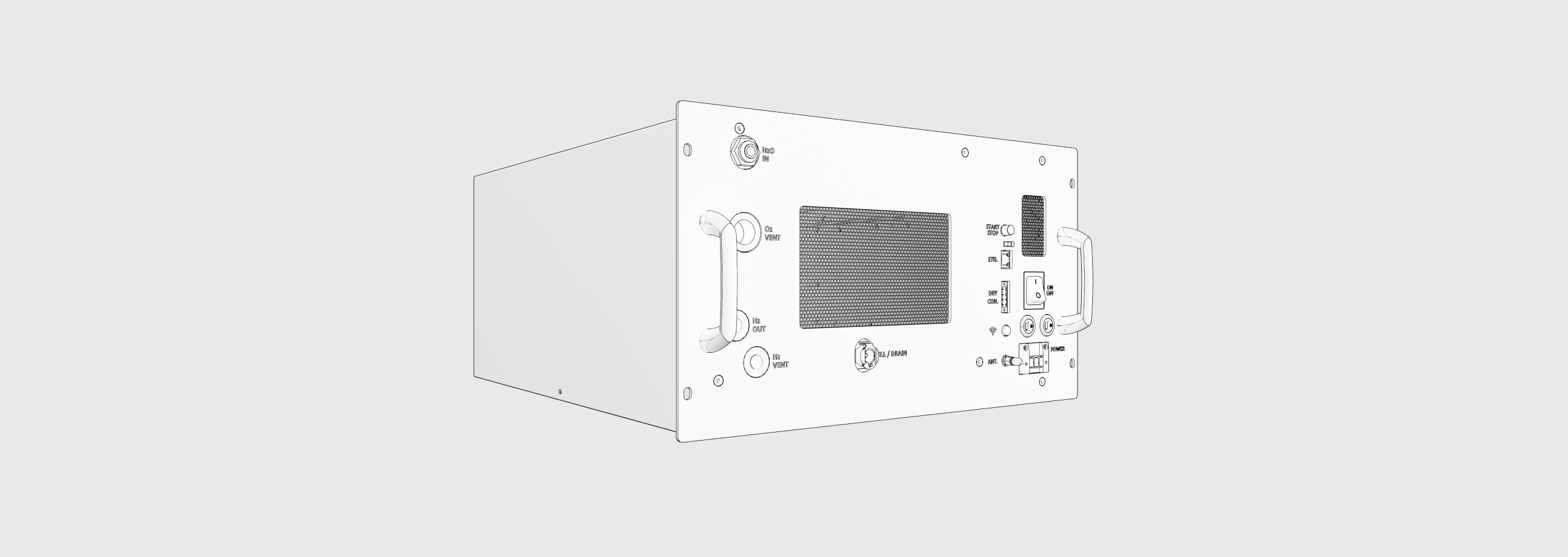

EL41 Image

# 📖 Downloads

Datasheet Owner’s Manual Battery Limits Quick Start Guide Types of EL 4.1 Cooling Power Supply Certification
EL 4.1 PDF PDF (EN)
PDF (RU)		 PDF PDF PDF Air cooled AC UKCA
CE
TUEV
EL 4.1 LC PDF Liquid cooled

# 📸 Images

Power Consumption Simplified Schematic Overview CAD Drawings Dimensions Front Isometric Side Perspective
EL 4.1 35 bar
8 bar		 PDF 3D STP
3D IGS		 PDF Download Download Download Download
EL 4.1 LC 3D STP
3D IGS		 PDF Download Download Download

# 🔍 Product Overview

The following images show the position of the EL 4.1 physical interfaces.

EL 4.1 Air Cooled - Front View

1 / 3
EL 4.1 Air Cooled - Front View
EL 4.1 Air Cooled - Front View
EL 4.1 Liquid Cooled - Front View
EL 4.1 - Bottom View

# Physical Interfaces

Note

For more information about EL 4.1 physical interfaces, please check Battery Limits at Downloads section.

Position Name Fluid Description
1 H₂O IN Recommended ASTM D1193-06 Type II or Type III but at least Type IV with:
- Total Organic Carbon (TOC) <1000 ppb
- Total Silica < 500 ppb
- Acidity < 0.1 meq/l (according to D1067)
- Conductivity < 5 µS/cm		 This inlet port is used for the automatic refilling of highly purified, demineralized water for the electrolysis process.
2 O₂ VENT O₂ + H₂O vapor + H₂ (<2%) This outlet port is directly connected to the electrolyte tank and allows the produced O₂ to leave the device. Apart from the produced O₂, about 38 g/h of H₂O condenses in the line, and this is dependent on the ambient temperature, vent line material, and insulation. Furthermore, some trace of H₂ (<2% concentration) can be contained in the gaseous vent output. The O₂ vent additionally serves as an overfill port if too much water or electrolyte has been provided.
3 COOLING WATER IN / OUT Clean water or a water-glycol mixture with up to 50% glycol Please be aware that this interface might not be available on your device.
This inlet/outlet port allows the device to be cooled via an external cooling loop. Temperature, pressure, and flowrate must be calculated depending on the individual setup.
4 H₂ OUT H₂ + 1000 ppm of H₂O + <5 ppm O₂ (35 barg version) / H₂ + 12000 ppm of H₂O + <5 ppm O2 (8 barg version) This outlet port releases the produced H2. H2 downstream of that port will not flow back through the device.
5 H₂ VENT H₂ + H₂O This outlet port allows water which has been extracted from the H₂ to leave the device. This venting happens twice during ramp up, every 6 h during operation (35 barg version) / every 1.5 h (8 barg version) and once during ramp down.
6 FILL / DRAIN Aqueous KOH solution (1% concentration) This inlet/outlet port is used to fill up the device with electrolyte and to drain it again for maintenance.
7 START / STOP This button allows the operator to start and stop the hydrogen production.
8 POWER Electric current This inlet port allows the power supply of the device.
9 ETHERNET This port allows reading and writing monitoring, as well as control registers of the device via Modbus TCP/IP.
10 DRY CON This port allows external devices to power cut the stack inside the electrolyser.
11 WIFI BUTTON The WiFi button allows the operator to switch on/off the WiFi of the device.
12 ANTENNA The antenna port allows the operator to install an antenna for better WiFi connection.
13 ON/OFF BUTTON / BREAKER This button is used to switch on/off the device. Please be aware that this interface might not be available on your device.
14 THERMAL OVERCURRENT CIRCUIT BREAKERS The interface allows the operator to manually reset them by pressing the integrated button in case the contacts open.
15 HANDLEBARS The handlebars allow the operator to lift and move the device.
16 FRONT MESH The front mesh allows air to enter the device and allows appropriate cooling and ensures that no H₂ is accumulating inside the device in case of an H₂ leakage.
17 LED The LED shows the status of the device. For more information, please refer to LEDs Indications.
18 LEAKAGE DRAIN HOLE KOH, water The leakage drain hole allows the operator to drain the tray in case of an electrolyte or water leakage.

# 🚀 Getting Started

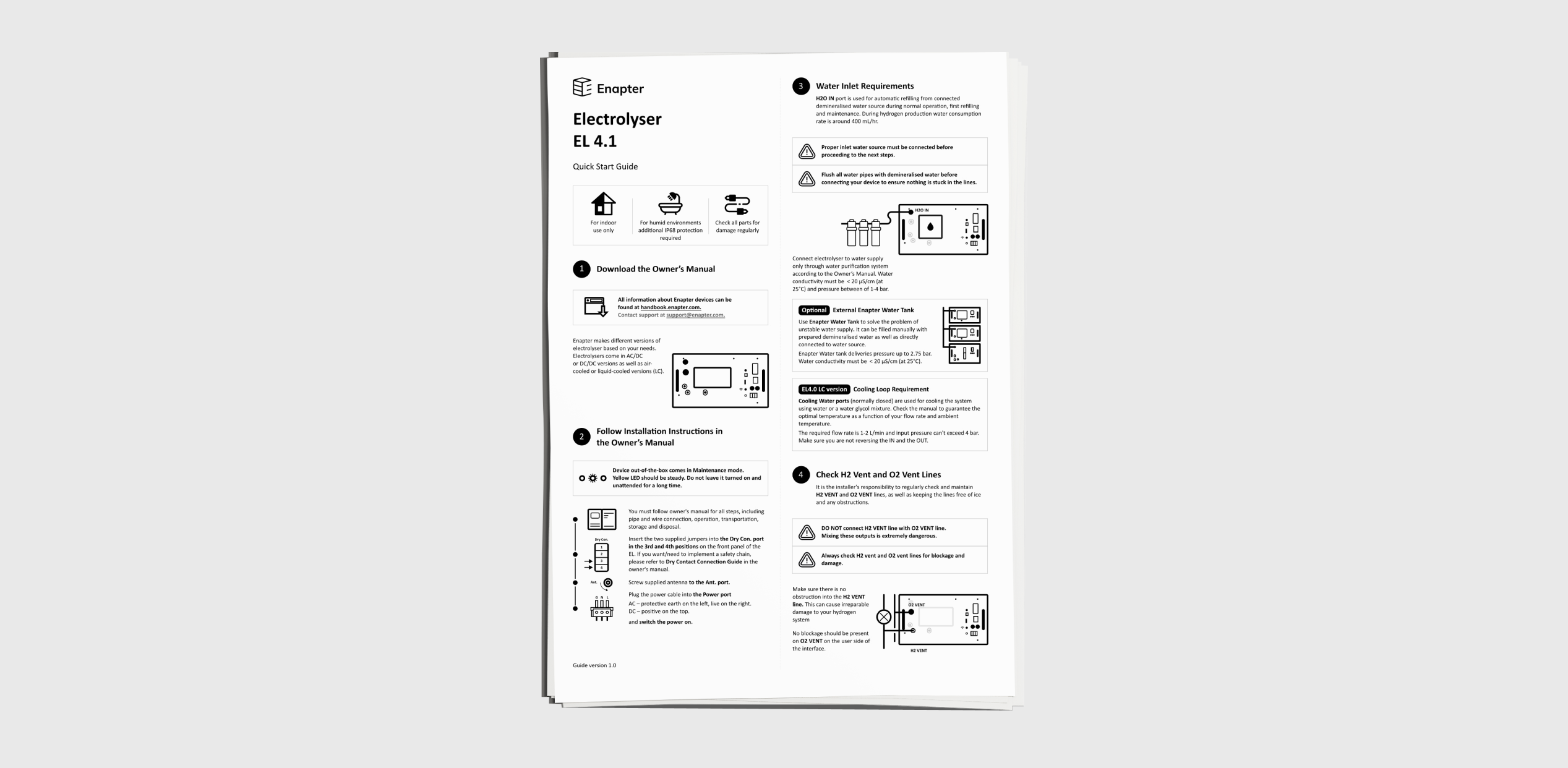

Installing electrolyser for the first time? Download Quick Start Guide and follow instructions.

EL41 QSG Image

Note

Electrolyser EL 4.1 installation process requires Enapter Mobile App (opens new window) or Web GUI (opens new window).

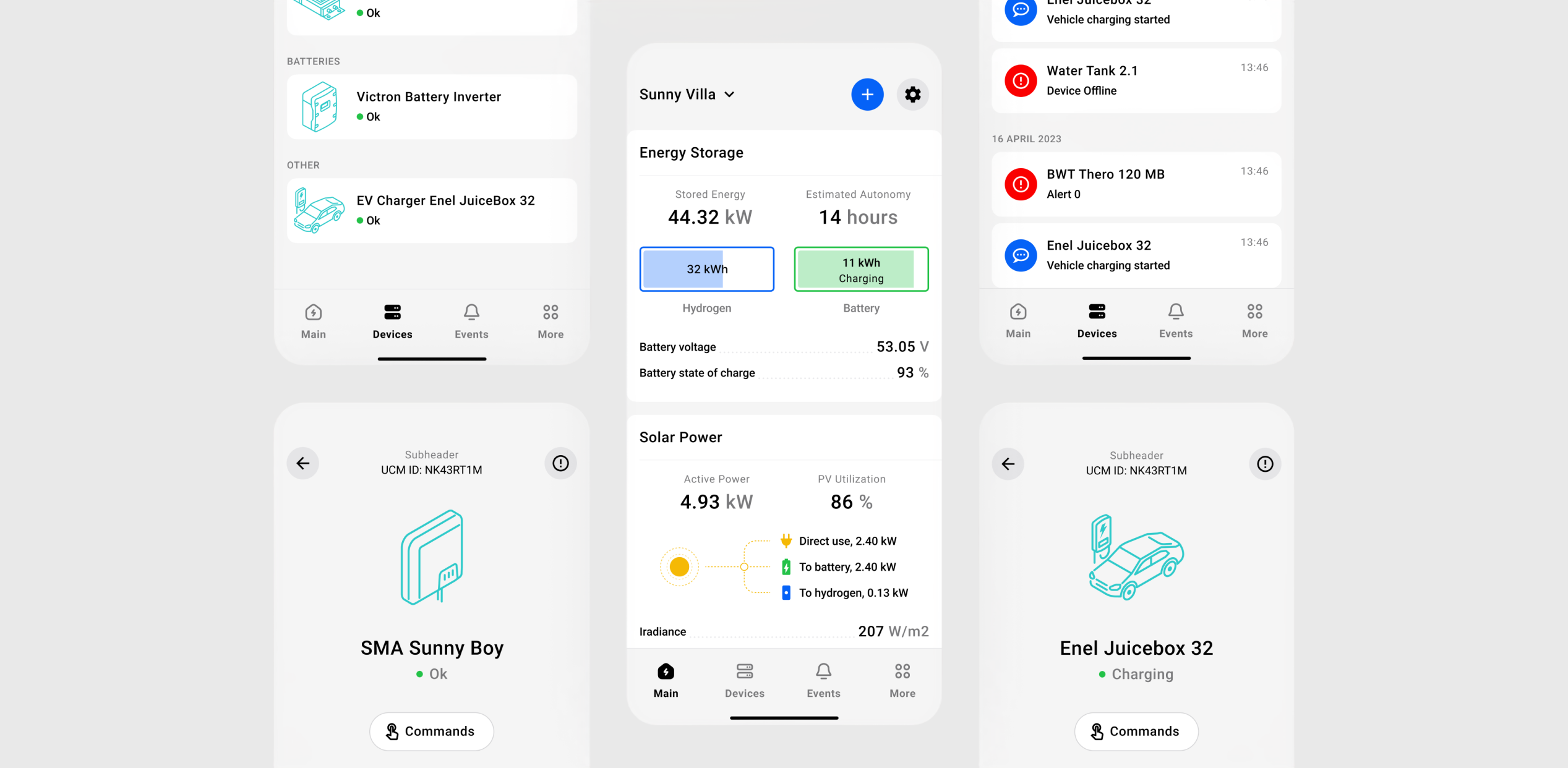

# 📱 User Interface: Mobile App

The Mobile App for convenient monitoring and control of devices through any network anywhere in the world. It supports Electrolysers, Fuel Cells, Battery Storage Systems, Solar Inverters, EV Chargers, and many other energy devices.

The App helps to calculate and estimate energy consumption and provides insights into your device operation as well as notifies you about any issues. The interactive Dashboards and Charts provide a real-time or historical overview of key parameters with one-second precision.

The Enapter Mobile App provides seamless installation of any energy system on your iOS or Android mobile devices.

For more information please check the Mobile App Documentation (opens new window).

Note

Using Mobile App and an internet connection you can perform refilling and draining of the EL 4.1. For more information please check Refilling and Draining Documentarion.

Mobile App

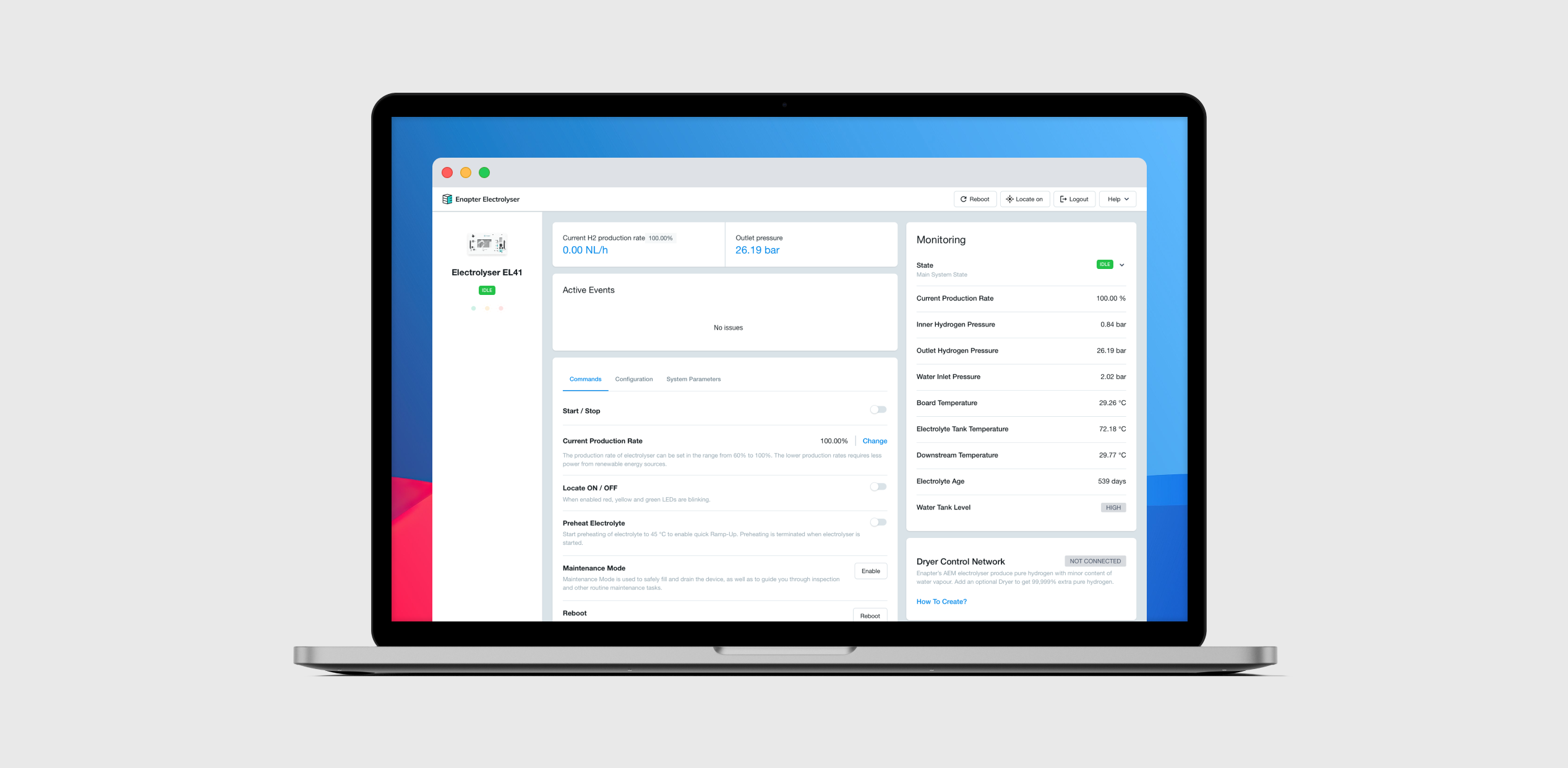

# 🖥️ User Interface: Web GUI

Enapter Electrolyser Web GUI (Graphical User Interface) made for local control and monitoring using a web browser.

For more information please check the Web GUI Documentation (opens new window).

Note

Using Web GUI you can perform refilling and draining of the EL 4.1 without internet connection. For more information please check Refilling and Draining Documentarion.

Web GUI Image

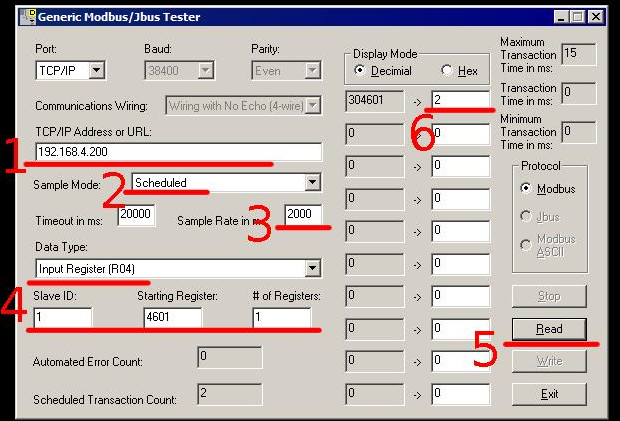

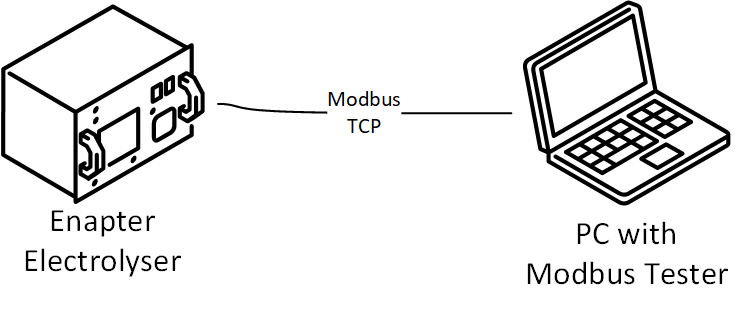

# 🔌 Communication Interface: Modbus TCP

In case you want to monitor and manage your device with the Modbus TCP interface check out the latest registers map guide and use cases:

Warning

Concurrent connections to Electrolyser EL 4.1 for Modbus TCP interface limited to two. In case if you are experiencing connection refuse issues with Modbus TCP, you need ensure that there are only two connections are used for communication.

Warning

Modbus TCP works over an insecure connection and was designed for usage in isolated Local Area Networks for Operation, Administration and Management. Please take into account that connection to public networks such as the Internet is not recommended for security reasons.

# Examples

The sample Modbus TCP Python scripts are available at our Github Page (opens new window) under Apache 2.0 License.

# 📄 Communication Interface: OPC UA

OPC UA (Open Platform Communication Unified Architecture) is a secure OT-IT communication standard mostly for industrial equipment. Known by some as “the global production language”, OPC UA enables improved data communication and interoperability between devices and systems in many industries.

You will need Enapter Gateway Software to use OPC UA.

For more information please check the Gateway Software Documentation.

# ☁️ Communication Interface: Cloud over Ethernet Beta

Warning

Cloud over Ethernet is in Beta.

Cloud over Ethernet is a cutting-edge feature for Enapter Web GUI that empowers Enapter electrolyser users to seamlessly connect their devices to cloud services using an Ethernet interface. This advanced connectivity solution opens up a realm of possibilities for remote monitoring, data logging, and control of the electrolyser through a secure and efficient cloud platform.

For more information please check the Cloud over Ethernet Documentation (opens new window).

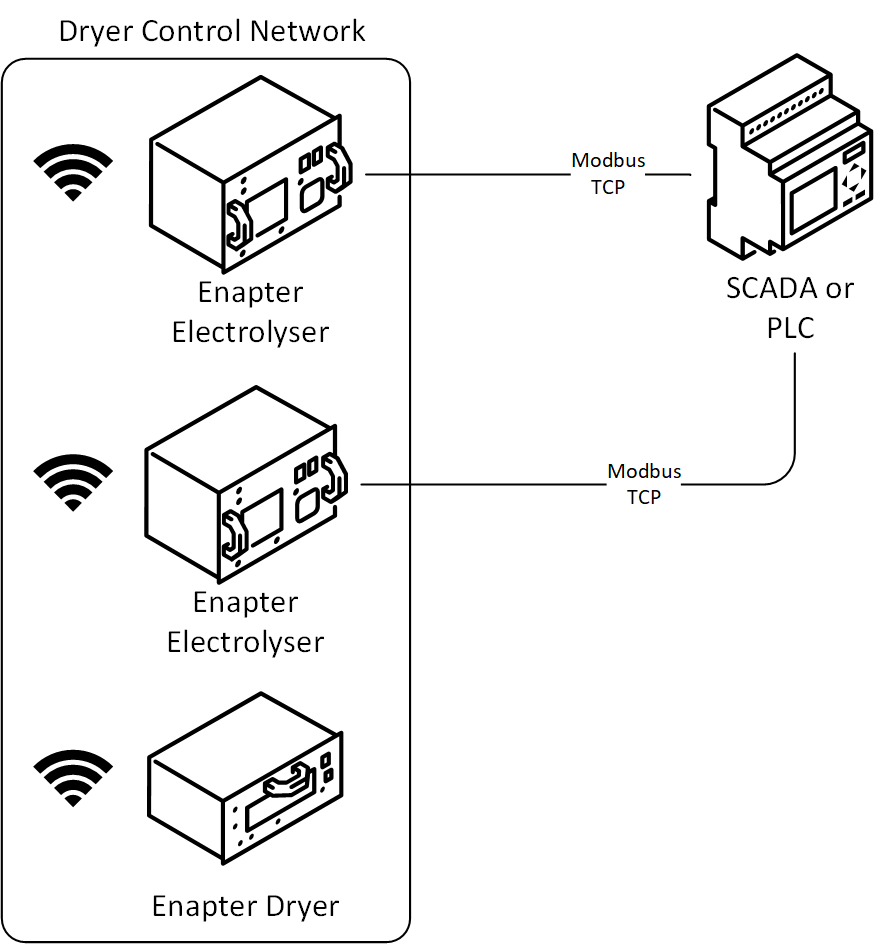

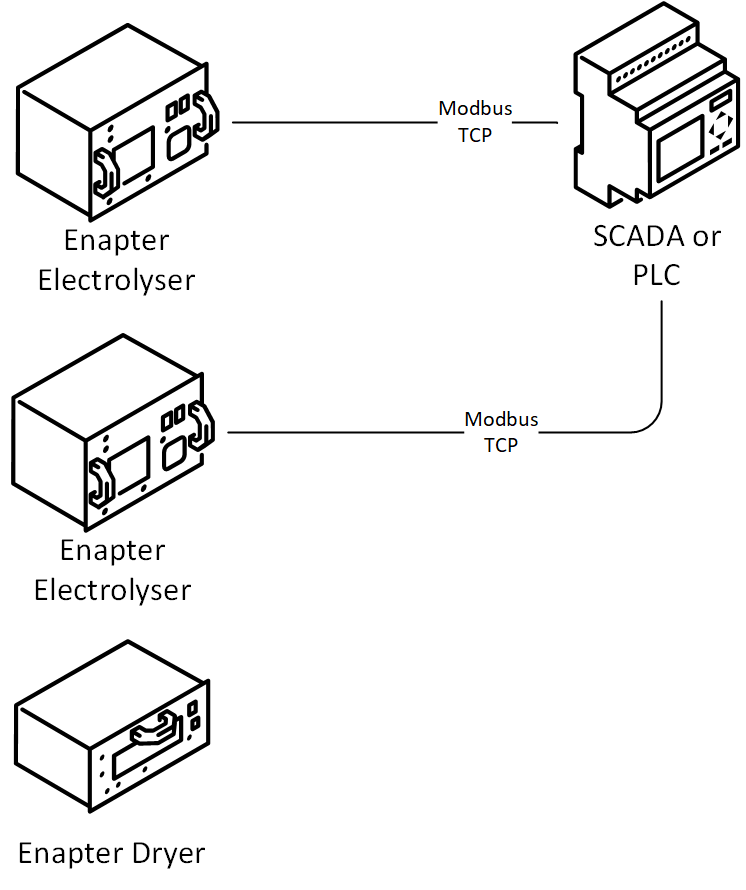

# 🕸️ Communication Interface: Dryer Control Network

The Dryer Control Network (DCN) function is Smart Control for Dryer and Water Tank (optional) using M2M (opens new window) communication between Electrolysers, Dryer and Water Tank via a wireless MESH network. This type of control allows to lower down energy consumption, reduce the possibility of operating errors and increase the safety.

For more information please check the Dryer Control Network Documentation (opens new window).

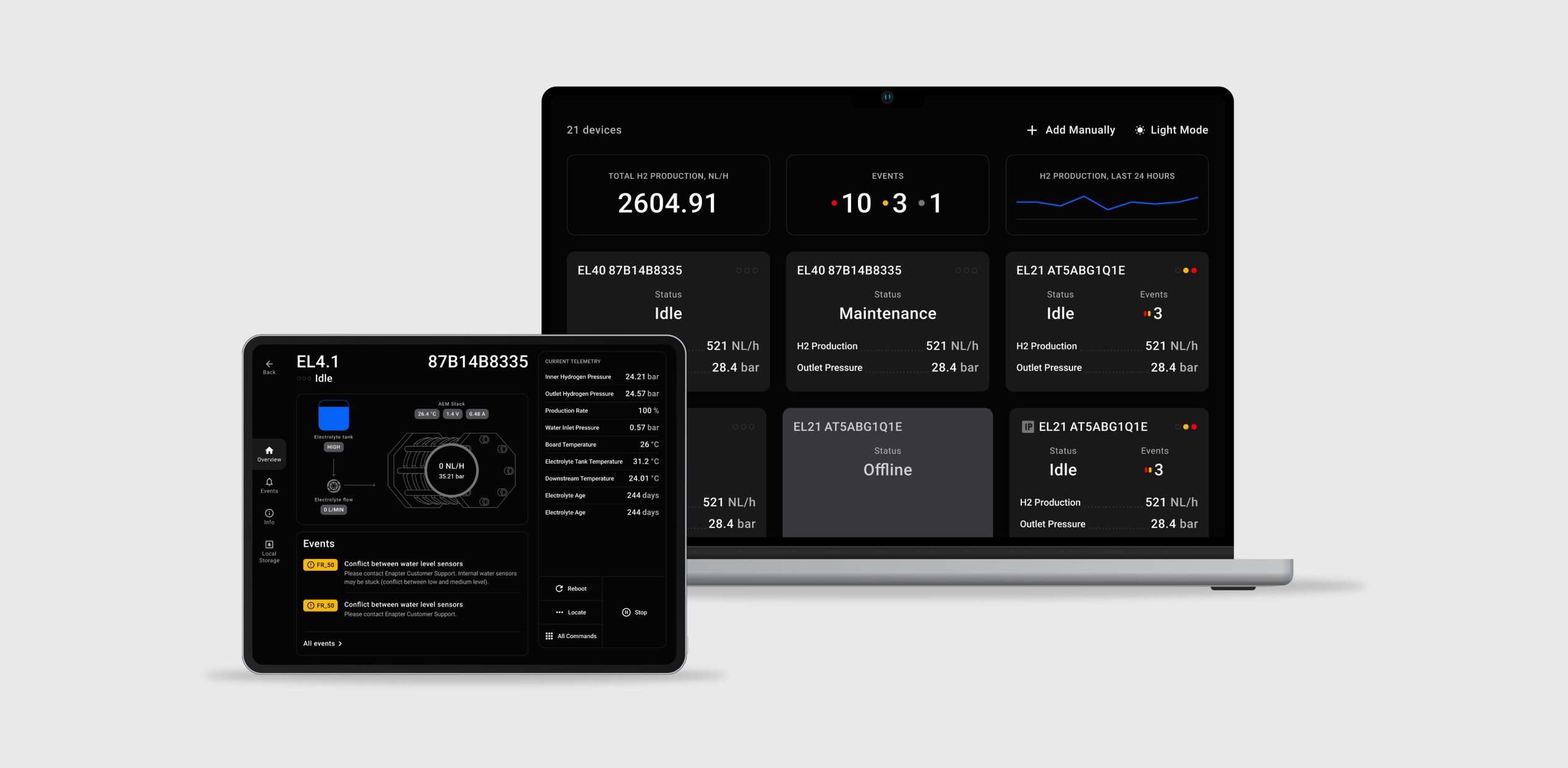

# 📟 Addition Interface: HMI

The Enapter HMI (Human Machine Interface) is an Android application for Tablets for convenient monitoring and control of Enapter’s AEM Electrolysers connected to the Local Area Network. It supports an unlimited number of electrolysers and requires no internet connection nor a Cloud account for operation. It is also helpful for medium and large-size setups such as the Enapter AEM Cluster.

For more information please check the HMI Documentation (opens new window).

Enapter HMI App Image

# 🚦 Status Indications

# LEDs Indications

Action Description LED
Power on The device will turn on as soon as the required input voltage is supplied to the EL 4.1 and perform a startup self-check. Red, yellow & green blink thrice
Maintenance Stand-by (Idle state) The device is idle, waiting for the start of production. Red, yellow & green are off
Stand-by (Max pressure state) The device reached maximum pressure (normally 35 bar) and will resume hydrogen production automatically when the restart output pressure setpoint is reached. Green blinking
Steady Steady The device in Steady state. Hydrogen production is in progress. Green steady
Button press When the start-stop button is pressed. Red, yellow & green blink once
Factory Settings Reset Simultaneously pressing the start-stop button and powering up the device will activate Factory Settings Reset. Running fire (each LED blinks after another)
Maintenance Maintenance mode The device is in maintenance mode. Yellow steady
Locate device When locate device is enabled via remote control. Red, yellow & green blinking
Warning Heads-up event which should be taken into account to avoid Error or Fatal Error. Yellow blinks
Error System Stopped. Recoverable error. Red blinks
Fatal Error System stopped. Unrecoverable error. Hardware repair required. Please contact Enapter support. Red and yellow blinks
Panic Hardware
Panic Software		 Panic System stopped. Unrecoverable error. Please contact Enapter support. Red steady with green steady (hardware problem) or yellow steady (software problem)
Wrong Firmware Firmware does not match the hardware information from eFuse. Please contact Enapter support. Red steady with green blinking
Software interception The system library signals an error. Please contact Enapter support. Red steady with green and yellow blinking

# Sound Indications

Safety Board has built in buzzer which helps to provide additional level of information for user.

Action Description Sound
Buzzer is broken or board is not operational. Silence on start
Successful Safety Board Start. Buzzer is functional. Short Beep
Successful Factory Settings Reset. Three Short Beeps
Safety Fatal Error FY_51 SIF1: Hydrogen stack overpressure Long Beep - Pause - Short Beep
Safety Fatal Error FY_53 SIF3: Water leakage detection Long Beep - Pause - Three Short Beeps
Safety Fatal Error FY_54 SIF4: Tank overpressure Long Beep - Pause - Four Short Beeps
Safety Fatal Error FY_55 SIF5: Dilution fan for hydrogen concentration Long Beep - Pause - Five Short Beeps
Safety Fatal Error FY_56 SIF6: Safety Electronic Board temperature Long Beep - Pause - Six Short Beeps
Safety Fatal Error FY_20 Dry contact Long Beep - Pause - Seven Short Beeps
Safety Fatal Error FY_21 Communication fail Long Beep - Pause - Eight Short Beeps
Safety Fatal Error FY_22 Safe State requested by Control Board Long Beep - Pause - Nine Short Beeps
Safety Fatal Error FY_23 Incompatible Control Board version Long Beep - Pause - Ten Short Beeps
Safety Fatal Error FY_24 Relay broken Long Beep - Pause - 11 Short Beeps
Safety Fatal Error FY_25 Proof-test can not be started Long Beep - Pause - 12 Short Beeps
Safety Fatal Error FY_26 Proof-test failed Long Beep - Pause - 13 Short Beeps
Safety Fatal Error FY_27 Inner pressure transmitter broken Long Beep - Pause - 14 Short Beeps
Safety Fatal Error FY_28 Wrong Control Board Long Beep - Pause - 16 Short Beeps
Safety Fatal Error FY_30 Tachometer or Fan broken Long Beep - Pause - 18 Short Beeps
Safety Fatal Error FY_31 Safety Board Temperature Sensor broken Long Beep - Pause - 19 Short Beeps
Safety Fatal Error FY_33 Brownout Long Beep - Pause - 20 Short Beeps
Dry Contact restored Normal operation restored Long Beep
Unexpected Error Used in cases when it is not possible to understand the root cause and ensure delivery of error code in communication packet. SOS: 3 Short Beeps - 3 Long Beeps - 3 Short Beeps
Safety Fatal Error FY_21 Indicates communication lost with Control Board.
NOTE: COMMUNICATION FAIL is normal when Control Board firmware updated. It loses communication and identifies the update process when you are not allowed to turn off the power.		 Consecutive Beeps

# ⚠️ Events

# Severity Levels

Code Severity Level LED Indication Description Comment
F Fatal Error Red and Yellow Blinks System stopped. Unrecoverable error. Hardware repair required. e.g. Pressure sensor is not connected or broken.
E Error Red Blinks System Stopped. Recoverable error. e.g. No input water pressure and internal water tank is empty.
W Warning Yellow Blinks Heads-up event which should be taken into account to avoid Error or Fatal Error. e.g. No input water pressure and internal water tank is full.

# Routines

Code Routine Comment
P Platform
C Electrolyte Circulation
D Stack Ramp Down
R Water Refilling
S Steady Hydrogen Production
T Temperature Management
U Stack Ramp Up
X Safety Check
F Anti-freezing
L Leakage Test
H Heartbeat
Z Polarization Curve
Y Safety Board
V Chassis Ventilation

# Warning, Error and Fatal Error Codes

Code Name Component Display Name Description
0x0FFF internal
Internal error Please contact Enapter Customer Support. System failed with an unexpected error.
0x360A WH_10
Severity W
/
Routine H
  • Ethernet
  • Modbus TCP
Lost Modbus safety heartbeat communication Modbus communication between the Electrolyser and the Modbus master device has been lost. Please check that the Ethernet cable is properly installed, the connection is established, and the Modbus master is operational.
0x360B WH_11
Severity W
/
Routine H
  • Wireless (Wi-Fi)
  • Enapter Gateway
Lost Enapter Gateway safety heartbeat communication Communication between the Electrolyser and the Enapter Gateway has been lost. Please check that the Wi-Fi connection is stable and ensure that the Gateway is operational.
0x360C WH_12
Severity W
/
Routine H
 UCM Lost UCM communication Lost communication between the Control Board and the UCM (Universal Communication Module). Please contact Enapter Customer Support.
0x358A WO_10
Severity W
/
Routine O
 PT101C Outer hydrogen pressure is too high for blowdown Please lower the outer hydrogen pressure below 25 bar in order to start the blowdown routine.
0x3594 WO_20
Severity W
/
Routine O
 Blowdown routine is active The blowdown procedure will start once hydrogen production starts. Please ensure that the Hydrogen Purge line is correctly connected and routed to a safe area.
0x159E FO_30
Severity F
/
Routine O
  • PT101A
  • CV101B
Hydrogen Purge line obstruction or blowdown failure The Hydrogen Purge line is obstructed or the adjustable check valve (CV101B) cracking pressure is set incorrectly. Please verify that the Hydrogen Purge line is unobstructed, enable Blowdown for the next hydrogen production cycle, and reset the system. Please contact Enapter Customer Support.
0x318A WR_10
Severity W
/
Routine R
 PT105 Water inlet pressure is too high Water inlet pressure has exceeded 4 barg. The automatic refilling will not work.
0x3194 WR_20
Severity W
/
Routine R
 PT105 Water inlet pressure is too low Insufficient water inlet pressure. The automatic refilling will not work.
0x3195 WR_21
Severity W
/
Routine R
 Refilling timeout Reboot the device and verify that the water inlet requirements are fulfilled.
0x330A WU_10
Severity W
/
Routine U
 PT101A Gas-side pressure is not atmospheric Hydrogen Vent (Hydrogen Purge) line pressure detected. Ramp-up is not possible. Please check that the Hydrogen Vent (Hydrogen Purge) line is not obstructed.
0x3215 WS_21
Severity W
/
Routine S
 PT101A Drift in inner hydrogen pressure sensor Please contact Enapter Customer Support. Inner hydrogen pressure mismatch has been detected.
0x3294 WT_20
Severity W
/
Routine T
 F103A Electrolyte cooling fan broken Please contact Enapter Customer Support. The electrolyte cooling fan must be checked.
0x3432 WX_50
Severity W
/
Routine X
 PT101A Inner hydrogen pressure check disabled Please contact Enapter Customer Support. Safety routine check for inner hydrogen pressure is disabled.
0x3433 WX_51
Severity W
/
Routine X
 WPS104 Water presence check disabled Please contact Enapter Customer Support. Safety routine check for water presence is disabled.
0x3434 WX_52
Severity W
/
Routine X
 48V PSU Power supply unit check is disabled Please contact Enapter Customer Support. Safety routine check for the power supply unit is disabled.
0x3435 WX_53
Severity W
/
Routine X
 HASS Stack current check disabled Please contact Enapter Customer Support. Safety routine check for the stack current is disabled.
0x3436 WX_54
Severity W
/
Routine X
 TSH106 Electrolyte backflow temperature check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte backflow temperature is disabled.
0x3437 WX_55
Severity W
/
Routine X
 TS108 Control board temperature check disabled Please contact Enapter Customer Support. Safety routine check for the control board temperature is disabled.
0x3438 WX_56
Severity W
/
Routine X
 PSH102 Electrolyte tank pressure check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte tank pressure is disabled.
0x3439 WX_57
Severity W
/
Routine X
 TSLL102B Low electrolyte temperature check disabled Please contact Enapter Customer Support. Safety routine check for the low electrolyte temperature is disabled.
0x343A WX_58
Severity W
/
Routine X
 PSHH102B Inner overpressure check disabled Please contact Enapter Customer Support. Safety routine check for high inner hydrogen pressure is disabled.
0x343B WX_59
Severity W
/
Routine X
 PT105 Water inlet pressure check disabled Please contact Enapter Customer Support. Safety routine check for the inlet pressure (PT105) is disabled.
0x343C WX_60
Severity W
/
Routine X
 TT102A Electrolyte tank temperature check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte tank temperature is disabled.
0x343D WX_61
Severity W
/
Routine X
 FM106 Electrolyte flow meter check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte flow meter (FM106) is disabled.
0x343E WX_62
Severity W
/
Routine X
 F103A Electrolyte cooling fan check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte cooling fan is disabled.
0x343F WX_63
Severity W
/
Routine X
 TT106 Electrolyte backflow temperature check disabled Please contact Enapter Customer Support. Safety routine check for the electrolyte backflow temperature is disabled.
0x3440 WX_64
Severity W
/
Routine X
 PT101C Outer hydrogen pressure check disabled Please contact Enapter Customer Support. Safety routine check for the outer hydrogen pressure is disabled.
0x3441 WX_65
Severity W
/
Routine X
 F104B Chassis circulation fan check disabled Please contact Enapter Customer Support. Safety routine check for the chassis circulation fan is disabled.
0x3442 WX_66
Severity W
/
Routine X
 F108C Electronic compartment cooling fan check disabled Please contact Enapter Customer Support. Safety routine check for the electronic compartment cooling fan is disabled.
0x3443 WX_67
Severity W
/
Routine X
 Dry contact Dry contact check disabled Please contact Enapter Customer Support. Safety routine check for the dry contact is disabled. External dry signal will be ignored.
0x3445 WX_69
Severity W
/
Routine X
 MCU Temperature Sensor Control Board temperature check disabled Please contact Enapter Customer Support. Safety routine check for the Control Board temperature is disabled.
0x228A ET_10
Severity E
/
Routine T
 TT102A Electrolyte temperature is too low Please make sure that the room temperature is at least 6°C. Keep the EL powered to ensure that the heating routine continues to protect the device internals.
0x108A FC_10
Severity F
/
Routine C
 P107 Pump broken Please contact Enapter Customer Support. The electrolyte pump may be broken.
0x128A FT_10
Severity F
/
Routine T
 TT106 Electrolyte temperature is too high Please make sure that the air ventilation is not obstructed or the liquid cooling loop is operating properly as well as the ambient temperature does not exceed the device specifications. If the error persists, please contact Enapter Customer Support.
0x118A FR_10
Severity F
/
Routine R
 LSHH102A Electrolyte level is too high Electrolyte level is too high. Please interrupt the water supply to the system and contact Enapter Customer Support.
0x1194 FR_20
Severity F
/
Routine R
 LSL102D Electrolyte level is too low Please switch the Electrolyser into maintenance mode, drain it fully, and then fill the electrolyte tank with fresh electrolyte solution.
0x11B2 FR_50
Severity F
/
Routine R
  • LSL102D
  • LSM102C
Conflict between water level sensors (low and medium) Please contact Enapter Customer Support. Internal water sensors may be stuck (conflict between low and medium levels).
0x11B3 FR_51
Severity F
/
Routine R
  • LSM102C
  • LSH102B
Conflict between water level sensors (medium and high) Please contact Enapter Customer Support. Internal water sensors may be stuck (conflict between medium and high levels).
0x11B4 FR_52
Severity F
/
Routine R
  • LSH102B
  • LSHH102A
Conflict between water level sensors (high and very high) Please contact Enapter Customer Support. Internal water sensors may be stuck (conflict between high and very high levels).
0x11A8 FR_40
Severity F
/
Routine R
 Refilling unsuccessful Please contact Enapter Customer Support. Refilling was unsuccessful.
0x1501 FL_01
Severity F
/
Routine L
 Inner hydrogen pressure reading is below the expected value Please contact Enapter Customer Support. Pressure readings are below nominal values. The device needs to be checked or repaired.
0x1114 FD_20
Severity F
/
Routine D
 PT101A Inner hydrogen pressure reading is below the expected value Please contact Enapter Customer Support. The inner hydrogen pressure transmitter detected a non-nominal pressure drop during the ramp down leakage test.
0x348A WF_10
Severity W
/
Routine F
 Electrolyte anti-freeze routine is disabled Electrolyte anti-freeze routine has been disabled due to its component failure.
0x148A FF_10
Severity F
/
Routine F
 Frozen pipes Please contact Enapter Customer Support. Electrolyte flow is outside pump control limits.
0x2401 EX_01
Severity E
/
Routine X
 PT101A Inner hydrogen pressure is too high Please contact Enapter Customer Support. The inner hydrogen pressure has exceeded 37 (or 9) barg (nominal, but high).
0x1402 FX_02
Severity F
/
Routine X
 WPS104 Water presence detected Please contact Enapter Customer Support. Water is leaking inside the Electrolyser. Please remove the water supply and power from the system and drain immediately.
0x1403 FX_03
Severity F
/
Routine X
 48V PSU PSU broken Please contact Enapter Customer Support. PSU failure detected. No voltage on stack.
0x1404 FX_04
Severity F
/
Routine X
 HASS Stack current is too high Please contact Enapter Customer Support. Stack overcurrent detected.
0x1405 FX_05
Severity F
/
Routine X
 TSH106 Backflow temperature is too high Please contact Enapter Customer Support. The stack outlet temperature is too high.
0x1407 FX_07
Severity F
/
Routine X
 TS108 Control board temperature is too high The control board temperature is too high. Please check and clean air ventilation holes. If the error persists, contact Enapter Customer Support.
0x1408 FX_08
Severity F
/
Routine X
 PSH102 Electrolyte tank pressure is too high Please make sure that the Oxygen Vent line is not blocked.
0x1409 FX_09
Severity F
/
Routine X
 TSLL102B Electrolyte temperature is too low Please make sure that the ambient temperature is at least 6°C. Keep the Electrolyser powered to ensure the heating routine continues to protect the device internals.
0x140A FX_10
Severity F
/
Routine X
  • PSHH101B for product codes ELE210535A2AXV04, ELE210508A2AXV04, ELE210535A2LSV01, ELE210508A2LXV01, ELE210535D4AXV01, ELE210508D4AXV01, ELE210535A2ASV05, ELE210508A2ASV05, ELE210535A2ASV06, ELE210508A2ASV06
  • PT101A
Hydrogen pressure is too high Please contact Enapter Customer Support. The pressure transmitter calibration needs to be verified.
0x140B FX_11
Severity F
/
Routine X
 MCU Temperature Sensor Control Board MCU temperature is too high Please make sure that the ambient temperature is below 45°C.
0x140C FX_12
Severity F
/
Routine X
 PT101C Outer hydrogen pressure is too high Please contact Enapter Customer Support. The calibration of the pressure transmitter needs to be verified.
0x141E FX_30
Severity F
/
Routine X
 PT105 Water inlet pressure transmitter broken Please contact Enapter Customer Support. The water inlet pressure cannot be measured.
0x141F FX_31
Severity F
/
Routine X
 TT102A Electrolyte tank temperature transmitter broken Please contact Enapter Customer Support. The temperature of the electrolyte tank cannot be measured.
0x1420 FX_32
Severity F
/
Routine X
 FM106 Electrolyte flow meter broken Please contact Enapter Customer Support. The electrolyte flow cannot be measured.
0x1421 FX_33
Severity F
/
Routine X
 TT106 Electrolyte backflow temperature transmitter broken Please contact Enapter Customer Support. The temperature of the electrolyte backflow cannot be measured.
0x1422 FX_34
Severity F
/
Routine X
 PT101A Inner hydrogen pressure transmitter broken Please contact Enapter Customer Support. The inner hydrogen pressure cannot be measured.
0x1423 FX_35
Severity F
/
Routine X
 PT101C Outer hydrogen pressure transmitter broken Please contact Enapter Customer Support. The outer hydrogen pressure cannot be measured.
0x1424 FX_36
Severity F
/
Routine X
 F108B Chassis circulation fan broken Please contact Enapter Customer Support. The chassis air circulation fan speed cannot be measured.
0x1425 FX_37
Severity F
/
Routine X
 F108C Electronic compartment cooling fan broken Please contact Enapter Customer Support. The speed of the electronic compartment cooling fan cannot be measured.
0x1426 FX_38
Severity F
/
Routine X
 TS108 Electronic board temperature transmitter broken Please contact Enapter Customer Support. The temperature of the electronic board cannot be measured.
0x1427 FX_39
Severity F
/
Routine X
 HASS Stack current sensor broken Please contact Enapter Customer Support. The stack current cannot be measured.
0x1428 FX_40
Severity F
/
Routine X
 External circuit or switch Dry contact triggered Dry contact triggered system stop. Please check your control system to understand what triggered the dry contact.
0x3F85 WP_05
Severity W
/
Routine P
 CR2032 battery on control board Low battery voltage Please contact Enapter Customer Support. Main board battery charge is too low.
0x1201 FS_01
Severity F
/
Routine S
 48V PSU Broken PSU Please contact Enapter Customer Support. PSU might be broken.
0x120A FS_10
Severity F
/
Routine S
  • 48V PSU
  • PT101A
Broken membrane Please contact Enapter Customer Support. Stack membrane might be broken.
0x31B5 WR_53
Severity W
/
Routine R
 LSHH102A Drain to high level Electrolyte level is above the high level (overfilling), please drain to the high level.
0x321E WS_30
Severity W
/
Routine S
 Replace electrolyte The electrolyte quality has dropped. Replace the electrolyte. If the error persists, contact Enapter Customer Support.
0x1F86 FP_06
Severity F
/
Routine P
 Control board MCU Insufficient resources for DCN/IDCN Please contact Enapter Customer Support. There are not enough hardware resources available to enable DCN/IDCN support.
0x178A FY_10
Severity F
/
Routine Y
 Safety Board INVALID COMMUNICATION PACKET Control Board received an invalid communication packet from the Safety Board. The system is now in the Safe State and cannot be operated. To remove the error, power cycle the device. If the error persists, contact Enapter Customer Support.
0x1794 FY_20
Severity F
/
Routine Y
 Safety Board DRY CONTACT Safety Board DRY CONTACT opened. The system is now in the Safe State and cannot be operated. Please check the DRY CONTACT safety loop circuit and fix it if necessary. The error will be resolved as soon as the DRY CONTACT is closed and the device is reset.
0x1795 FY_21
Severity F
/
Routine Y
 Safety Board COMMUNICATION FAILURE Safety Board experienced communication issues with the Control Board. The system is now in the Safe State and cannot be operated. Power cycle the device to remove the error. If the error persists, contact Enapter Customer Support.
0x1796 FY_22
Severity F
/
Routine Y
 Safety Board SAFE STATE REQUESTED BY CONTROL BOARD Control Board requested transition into Safe State. The system is now in the Safe State and cannot be operated. Power cycle the device to resolve the issue. If the error persists, contact Enapter Customer Support.
0x1797 FY_23
Severity F
/
Routine Y
 Safety Board INCOMPATIBLE CONTROL BOARD VERSION Please contact Enapter Customer Support. Safety Board hardware or software is incompatible with Control Board hardware or software. The system is now in the Safe State and cannot be operated.
0x1798 FY_24
Severity F
/
Routine Y
 Safety Board RELAY BROKEN Please contact Enapter Customer Support. Safety Board safety relay does not pass self-diagnostics. The system is now in the Safe State and cannot be operated.
0x1799 FY_25
Severity F
/
Routine Y
 Safety Board PROOF-TEST CANNOT BE STARTED The proof-test function was requested while the Electrolyser was not in Idle Mode. The system is now in the Safe State and cannot be operated. If the error persists, contact Enapter Customer Support.
0x179A FY_26
Severity F
/
Routine Y
 Safety Board PROOF-TEST FAILED The requested proof-test function failed. The system is now in the Safe State and cannot be operated. If the error persists, please contact Enapter Customer Support.
0x179B FY_27
Severity F
/
Routine Y
 Safety Board INNER HYDROGEN PRESSURE TRANSMITTER BROKEN Please contact Enapter Customer Support. Inner hydrogen pressure transmitter is broken. The system is now in the Safe State and cannot be operated.
0x179C FY_28
Severity F
/
Routine Y
 Safety Board INCORRECT CONTROL BOARD Please contact Enapter Customer Support. Safety Board is connected to the wrong Control Board. The system is now in the Safe State and cannot be operated.
0x179D FY_29
Severity F
/
Routine Y
 Safety Board RECOMBINER CHAMBER TEMPERATURE SENSOR BROKEN Please contact Enapter Customer Support. Recombiner chamber temperature sensor is broken. The system is now in the Safe State and cannot be operated.
0x179E FY_30
Severity F
/
Routine Y
 Safety Board TACHOMETER OR FAN BROKEN Please contact Enapter Customer Support. Tachometer and/or fan are broken. The system is now in the Safe State and cannot be operated.
0x179F FY_31
Severity F
/
Routine Y
 Safety Board SAFETY BOARD TEMPERATURE SENSOR BROKEN Please contact Enapter Customer Support. Safety Board temperature sensor is broken. The system is now in the Safe State and cannot be operated.
0x17A0 FY_32
Severity F
/
Routine Y
 Safety Board CONTROL BOARD AND SAFETY BOARD PAIRED Safety Board successfully paired with Control Board. If you see this error for the first time, power cycle the device to resolve it. If the error persists, contact Enapter R&D Team.
0x37B2 WY_50
Severity W
/
Routine Y
 Safety Board SIF-test has been started Electrolyser runs the SIF-test and the system transitions into corresponding error state
0x17B3 FY_51
Severity F
/
Routine Y
 Safety Board SIF1: HYDROGEN STACK OVERPRESSURE Safety Board detected overpressure in the hydrogen stack. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x17B4 FY_52
Severity F
/
Routine Y
 Safety Board SIF2: RECOMBINER CHAMBER OVERTEMPERATURE Safety Board detected overtemperature in the recombiner chamber. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x17B5 FY_53
Severity F
/
Routine Y
 Safety Board SIF3: WATER LEAKAGE DETECTION Safety Board detected water leakage inside the Electrolyser. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x17B6 FY_54
Severity F
/
Routine Y
 Safety Board SIF4: TANK OVERPRESSURE Safety Board detected an overpressure in the process electrolyte tank. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x17B7 FY_55
Severity F
/
Routine Y
 Safety Board SIF5: DILUTION FAN FOR HYDROGEN CONCENTRATION Safety Board detected a malfunction of the dilution fan. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x17B8 FY_56
Severity F
/
Routine Y
 Safety Board SIF6: SAFETY ELECTRONIC BOARD TEMPERATURE Safety Board detected overtemperature of the PCB. The system is now in the Safe State and cannot be operated. Please contact Enapter Customer Support.
0x3295 WT_21
Severity W
/
Routine T
 TT102A Slow electrolyte heating Electrolyte temperature is not increasing as expected. Please check the environmental conditions and contact Enapter Customer Support if the warning persists.
0x330B WU_11
Severity W
/
Routine U
 LSM102C Electrolyte level insufficient for start-up Heater cannot be started due to insufficient electrolyte level in the internal electrolyte tank. Refill the electrolyte, reset the system, and try again.
0x130C FU_12
Severity F
/
Routine U
  • Stack
  • PSU
Insufficient stack current Stack voltage limitation blocks reaching the specified current. Please contact Enapter Customer Support.
0x3314 WU_20
Severity W
/
Routine U
 PT101A Ramp-up leak check failed Inner hydrogen pressure decreased too quickly during ramp-up leak check. Please contact Enapter Customer Support.
0x2314 EU_20
Severity E
/
Routine U
 none Target current could not be reached. Please stop the hydrogen production immediately, switch the device into maintenance mode, drain the electrolyte and fill up the device with fresh electrolyte. Please check the water input quality fulfills the conductivity requirements and consider a change of purification cartridges.
0x120B FS_11
Severity F
/
Routine S
 PT101A Steady-state leak check failed Stack pressurization is too slow during steady-state leak check. Please contact Enapter Customer Support.
0x120C FS_12
Severity F
/
Routine S
  • Stack
  • PSU
Insufficient stack current Stack voltage limitation blocks reaching the specified current. Please contact Enapter Customer Support.
0x1F81 FP_01
Severity F
/
Routine P
 Brownout detected System detected a brownout. Please restore power and reset the system.
0x1F82 FP_02
Severity F
/
Routine P
 New configuration parameters added Please contact Enapter Customer Support to configure the new system parameters.
0x1F83 FP_03
Severity F
/
Routine P
 Broken periphery Please contact Enapter Customer Support. An unexpected error has occurred.
0x3F84 WP_04
Severity W
/
Routine P
 Stuck power button Power button was pressed for too long. Please release the button.
0x3196 WR_22
Severity W
/
Routine R
 Refilling failure Refilling has failed. Please check your water supply system.
0x3197 WR_23
Severity W
/
Routine R
 Draining timeout Please reboot the device and ensure that the water draining requirements are met.
0x31B3 WR_51
Severity W
/
Routine R
 Drain completely Electrolyte level is below the minimum. The Electrolyser is ready to be refilled.
0x31B4 WR_52
Severity W
/
Routine R
 Refill to high level Continue filling the electrolyte until it reaches the high level.
0x31B6 WR_54
Severity W
/
Routine R
 Refill to medium level Please keep refilling until electrolyte reaches the medium level.
0x3216 WS_22
Severity W
/
Routine S
 Refilling is not occurring Please check the water supply. If not fixed soon, hydrogen production will stop.
0x321F WS_31
Severity W
/
Routine S
 Derating due to temperature The current on the stack has been reduced to prevent the electrolyte from overheating. Please contact Enapter Customer Support.
0x3220 WS_32
Severity W
/
Routine S
 Derating due to voltage The current on the stack has been reduced to prevent the stack from over voltage. Please contact Enapter Customer Support.
0x140D FX_13
Severity F
/
Routine X
 High hydrogen presence detected High levels of hydrogen have been detected. Please contact Enapter Customer Support.
0x1429 FX_41
Severity F
/
Routine X
 Water level sensor broken Please contact Enapter Customer Support. The water level sensor is broken.
0x142A FX_42
Severity F
/
Routine X
 Common trip Please contact Enapter Customer Support. An error has been received from the Safety Board.
0x142B FX_43
Severity F
/
Routine X
 Insufficient electrolyte flow Pump broken or insufficient electrolyte flow during hydrogen production. Please check the electrolyte.
0x340E WX_14
Severity W
/
Routine X
 Hydrogen presence detected Hydrogen presence detected inside the Electrolyser. Please contact Enapter Customer Support.
0x340F WX_15
Severity W
/
Routine X
 Hydrogen sensor regeneration Please contact Enapter Customer Support.
0x3410 WX_16
Severity W
/
Routine X
  • TT106
  • TT102
Electrolyte large temperature discrepancy Electrolyte large temperature discrepancy between flow and backflow. If the error persists, please contact Enapter Customer Support.
0x3444 WX_68
Severity W
/
Routine X
 Water level check disabled Please contact Enapter Customer Support. Water level check is disabled.
0x3446 WX_70
Severity W
/
Routine X
 Hydrogen sensor check disabled Please contact Enapter Customer Support. Hydrogen sensor check is disabled.
0x3447 WX_71
Severity W
/
Routine X
 Electrolyte flow check disabled Please contact Enapter Customer Support. Electrolyte flow check is disabled.
0x3448 WX_72
Severity W
/
Routine X
 Electrolyte sensors discrepancy check disabled Please contact Enapter Customer Support. Electrolyte sensors discrepancy check is disabled.
0x350A WL_10
Severity W
/
Routine L
 Insufficient pressure drop The pressure drop across the Hydrogen Vent line from the Electrolyser is insufficient. Check that the line is not obstructed.
0x368A WZ_10
Severity W
/
Routine Z
 Polarization curve start failed Please contact Enapter Customer Support.
0x3701 WB_01
Severity W
/
Routine B
 Recombiner anti-freeze routine is disabled Recombiner anti-freeze routine has been disabled due to its component failure.
0x170A FB_10
Severity F
/
Routine B
 Recombiner undertemperature Recombiner temperature is below the normal operating limits. Please contact Enapter Customer Support.
0x170B FB_11
Severity F
/
Routine B
 Recombiner overtemperature Recombiner temperature is above the normal operating limits. Please contact Enapter Customer Support.
0x1714 FB_20
Severity F
/
Routine B
 Recombiner overcooling Recombiner cooling is happening too quickly. Please contact Enapter Customer Support.
0x1715 FB_21
Severity F
/
Routine B
 Recombiner underheating Recombiner heating is taking longer than expected. Please contact Enapter Customer Support.
0x171E FB_30
Severity F
/
Routine B
 Recombiner frozen Recombiner temperature is dangerously low. Risk of damage and hazardous conditions. Please contact Enapter Customer Support.
0x171F FB_31
Severity F
/
Routine B
 Recombiner heater malfunction Recombiner heater is not functioning correctly. This can result in damage and hazardous conditions. Please contact Enapter Customer Support.
0x17A1 FY_33
Severity F
/
Routine Y
 Safety Board brownout Safety Board detects low voltage (less than 22.5V) and stops operation until power is restored. Contact Enapter Customer Support.
0x3214 WS_20
Severity W
/
Routine S
 Standby mode Hydrogen tank maximum pressure has been reached, and the Electrolyser has entered standby mode.

# 📈 Remote Monitoring and Control

# Introduction

  • Electrolyser EL 4.1 comes with pre-installed UCM (Universal Communication Module) that allows users to monitor the device. Over-the-air updates ensure that the latest protocols and security fixes are supported.

  • Pre-installed UCM connects to the Enapter Gateway and sends performance and error data to the Enapter Cloud. Data is stored in a time series database which displays it in real-time on customizable dashboards.

  • Enapter’s Mobile Application ensures quick and easy installation of an energy system. Users can manage the EL 4.1 via the Mobile App and receive push notifications, warning of any energy system’s issues.

# Network Requirements

# WI-Fi Requirements

  • 802.11a/b/g/n (2.4 GHz only)

  • 802.12 WPA, WPA2 Personal (Pre-shared key)

  • Wi-Fi client isolation must be disabled

Note

No captive portal or WPA2 Enterprise supported.

General Wi-Fi Note

The Enapter Cloud connection is based on wireless communication, and therefore functionality can be affected by distance between devices, obstructions between the devices, and interference. The communication module inside your Electrolyser works in station mode and utilizes the Wi-Fi channel set in your infrastructure Wi-Fi router for using SSID. You are responsible for selecting the correct channel according to the local radio regulations.

# TCP/IP Network Requirements

Port Protocol Destination Host
(IP-Address / Range or Name)
80 TCP 193.9.249.0/24,
95.168.174.108,
95.168.174.212,
95.168.174.213
(api.enapter.com)
443 TCP 193.9.249.0/24,
95.168.174.108,
95.168.174.212,
95.168.174.213
(api.enapter.com)
123 UDP 193.9.249.0/24,
95.168.174.108,
95.168.174.212,
95.168.174.213
(ntp.enapter.com)
8883 TCP 193.9.249.0/24,
95.168.174.108,
95.168.174.212,
95.168.174.213
(mqtt.enapter.com)
1883 TCP 193.9.249.0/24,
95.168.174.108,
95.168.174.212,
95.168.174.213
(mqtt.enapter.com)

Note

Firewall must be stateful.

# Connecting your Electrolyser to Wi-Fi

To connect your Electrolyser EL 4.1 to a wireless network, follow steps in the iOS or Android Mobile Application guides below. Please note, the QR-code or preinstalled UCM’s ID and PIN are required when connecting to Wi-Fi as well as credentials for the 2,4 GHz Wi-Fi network.

# 🏭 Integration With SCADA

# How to Connect Electrolyser to SCADA?

SCADA is a control system architecture comprising of computers, networked data communications, and graphical user interfaces (GUI) for high-level process supervisory management.

The EL 4.1 Electrolyser can be integrated into SCADA system with Modbus TCP protocol. Alternatively MQTT interface can be used when Enapter Gateway (opens new window) is used.

# Modbus TCP SCADA / PLC Connection

# With Dryer Control Network (DCN)

SCADA or PLC connect with DCN In this case, a Dryer and Electrolyser or Electrolysers are connected over the Dryer Control Network (opens new window). The dryer can be monitored and controlled using the Modbus TCP of any Electrolyser in the Dryer Control Network.

# Standalone (Without The Dryer Control Network)

SCADA or PLC connect without DCN In this case, the Dryer will be fully automatic with no monitoring and control.

# MQTT Interface SCADA / PLC Connection

SCADA or PLC connect In this case the Dryer and Electrolyser or Electrolysers are connected over MQTT protocol using Enapter Gateway (opens new window). The dryer can be monitored and controlled. Also, the Enapter Rule Engine can be used to implement various rules to control and monitor the Dryer.

# Connection Testing

Schneider Electric Modbus Tester (opens new window) is a convenient way to test Modbus TCP connection on Windows PC.

Modbus Tester Connection

Note

The DHCP server or static IP address must be configured and enabled on the PC connected to the Electrolyser.

If you are using a router connected to the Electrolyser the DHCP mode must be enabled.

Warning

If the connected device does not have Auto MDI-X (auto crossover), use an Ethernet crossover cable to connect it to the Electrolyser EL 4.1.

# Example: Reading Heartbeat Register

Modbus Tester

  1. TCP/IP Address or URL - enter the IP address of Electrolyser.

  2. Sample mode:

    • Manual - manual reading.
    • Scheduled - rereading.

  3. Sample Rate in ms - Rereading period.

2000 ms = 2 s

  1. Data type - Holding or Input registers.

    The list of all Holding and Input registers can be found at Latest Modbus TCP Interface.

    Register number must be plus 1.

    Heartbeat ModBus Timeout - 4600 + 1 = 4601

  2. Read:

    • for Manual - single read.
    • for Scheduled - start of rereading.

  3. Read value.

Read value = 2 = 2000 ms.

# Syslog

Syslog is a Message Logging Standard by which almost any device or application can send data about status, events, diagnostics, and more.

Syslogging can be enabled:

  • Using Modbus register.
  • Using Web GUI of Electrolyser.

# Using Modbus Register

The following registers need to be configured to enable Syslog using Modbus:

  1. Holding Register 4042
  • Data type - Int32
  • Name - System logs
  • Severity:
    • 0 = disable logging (default)
    • 1 = only fatal errors
    • 2 = fatal errors and errors
    • 3 = warnings and more important
    • 4 = everything before and important messages
    • 5 = all messages, except internal debug ones
  1. Holding Register 4044
  • Data type - Uint32
  • Name - Syslog IP Address
  • Default value 255.255.255.255 (Broadcast)
  1. Holding Register 4046
  • Data type - Uint16
  • Name - Syslog Port
  • Default port 514

# Using Web GUI

System logs can be configured using the Electrolyser Web GUI (opens new window). Please check the Syslog Configuration paragraph of the Web GUI documentation.

# Receiving Syslogs

Tftpd64 (opens new window) can be handy to receive system logs on Windows PC.

Tftpd64

  • Enable system logging using Modbus Registers or Web GUI.
  • Tap on the Syslog server
  • You will receive system logs depending on chosen severity.

# 💧 Refilling and Draining

Note

To fill and drain the electrolyte described in this section, you need an internet connection and Enapter Mobile App. Filling and draining the electrolyte can also be done without internet connection using Enapter Web GUI.

# The First Refilling

Warning

Please check Material Safety Data Sheet (MSDS)(EN, DE) for Potassium Hydroxide Aqueous Solution < 2 wt. %.

Note

If you want to refill several electrolysers it is recommended to use Enapter HMI (opens new window).

Before Deionized water is added automatically, the electrolyser needs to be initially filled with electrolyte.

You will need:

  • Mobile phone with installed Enapter App (or access to Web GUI).
  • Safety glasses and nitrile gloves.
  • Prepared KOH solution in the electrolyte bag (2L, 1,54%).
  • Supplied refilling pipe.

Follow these steps to complete the first refilling of the electrolyte:

  • Step 1. Put on PPE. Minimum Equipment Requirements are safety goggles to protect from splash and nitrile gloves. Ensure your working area is clean to avoid chemical contamination and potential hazard exposure.
  • Step 2. Connect electrolyser to Enapter App and open it’s dashboard (or access electrolyser’s Web GUI).
  • Step 3. Electrolyser must be in Maintenance mode and the electrolyte tank must be empty.
  • Step 4. Get electrolyte bag valve through the perforated hole in the box. Connect refilling pipe to the electrolyte bag using special connector.
  • Step 5. Fully insert the refilling pipe into the FILL/DRAIN port.
  • Step 6. Carefully raise the bag with the filling solution above the device. Never lift electrolyte above your eye level. The solution will start filling the internal electrolyte tank immediately. If this does not happen, ensure the O2 VENT line is not obstructed.
  • Step 7. Pour out all electrolyte from the electrolyte bag until medium level is reached.
  • Step 8. Disconnect refilling pipe from the FILL/DRAIN port by pressing down on the button on the port.
  • Step 9. Confirm that refilling is finished by pressing the Exit button in the App or Web GUI.
  • Step 10. Electrolyser will be filled with required amount of water automatically.

# Electrolyte Draining

Warning

Thermal hazard! Avoid contact with the heated electrolyte solution.

The module must be drained for transport, installation, and before the routine changing of the electrolyte in Electrolyser to prolong system life.

You will need:

  • Mobile phone with installed Enapter App (or assess to Web GUI).
  • Safety glasses and nitrile gloves.
  • 2 clean 5L containers (for old electrolyte solution and flushing water).
  • Supplied draining pipe.

Follow these steps to drain Electrolyser:

  • Step 1. Put on PPE. Minimum Equipment Requirements are safety goggles to protect from splash and nitrile gloves. Ensure your working area is clean to avoid chemical contamination and potential hazard exposure.
  • Step 2. Connect electrolyser to Enapter App and open it’s dashboard (or access electrolyser’s Web GUI).
  • Step 3. Enable Maintenance mode using the Enapter App or Web GUI.
  • Step 4. Prepare the container to catch the drained liquid and insert the end of the draining pipe into it.
  • Step 5. Fully insert the draining pipe into the FILL/DRAIN port. The solution will start pouring out immediately.
  • Step 6. Drain until the App shows an empty tank and follow the steps provided by the Enapter App for flush electrolyser.
  • Step 7. Once the flushing is finished, prepare the second container to catch the drained liquid again and insert the end of the draining pipe into it.
  • Step 8. Fully insert the draining pipe into the FILL/DRAIN port. The solution will start pouring out immediately.
  • Step 9. Disconnect refilling pipe from the FILL/DRAIN port by pressing down the button on the port.
  • Step 10. Confirm finish of draining by pressing the Continue button in the App or Web GUI.
  • Step 11. Electrolyser now is ready for maintenance.

# ⚙️ Operation Functions

# Altitude Compensation

Our systems are installed in different places over the world but calibrated in Pisa and later will be calibrated in Saerbeck.

All places have different altitudes and this might affect the pressure reading values from the sensors.

This can be done using Web GUI (opens new window) or Modbus TCP Interface.

To set altitude using Modbus TCP Interface you need to use Modbus Holding register #4142.

# Preheat

Preheat allows you to prepare your Electrolyser to ramp up in a faster way.

It is usually takes about 20 minutes from 20 deg to 55 deg to reach a nominal production rate.

This can be done using Web GUI (opens new window), Enapter Cloud (opens new window) or Modbus TCP Interface.

To activate preheat using Modbus TCP Interface you need to use Modbus Holding register #1014.

# Stand-By Mode

When your Electrolyser in Stand-By we have two possible actions for the Start/Stop button:

  1. Long press of the Start/Stop button (more than two seconds) will enable the system to re-start to reach the Max Pressure.
  2. The short press of the Start/Stop button will turn the system off.

# Factory Settings Reset

Warning

Factory Settings Reset is available only when the Stack is depressurized. Inner Hydrogen Pressure measured from PT101A must be less 2 barg.

Warning

If UCM is switched OFF using the Wi-Fi Button Factory Settings Reset will reset only Electrolyser settings while UCM and DCN settings will remain unchanged.

Note

During Factory Setting Reset you will hear the buzzer. For more information please check Sound Indications Documentation.

After Safety Fatal Error event, the system shall only be restored through the Factory Settings Reset command.

To enable Factory Settings Reset:

  • Depressurise the Stack. Inner Hydrogen Pressure must be < 2 barg.
  • Turn off the device.
  • Press and hold the Start/Stop button and turn on the device.
  • Hold the button. LEDs start blinking one after another.
  • Release the button. All LEDs will blink once.
  • Factory Settings Reset started. Device will be automatically rebooted. All LEDs blink trice.

There will be a warning if the Start/Stop button has not been released: WARNING WP_04: STICKY BUTTON.

After the Factory Settings Reset your Electrolyser will move to Maintenance Mode if water level is low than the low level. If water level is higher than the low level the Electrolyser will remain in Operation Mode.

# Video Guide

Watch our video tutorial on performing a Factory Settings Reset. Follow easy steps to restore your device to original settings. For more details, click Show more.

Show more

# Derating and Uprating of Production Rate

If the ambient temperature is too high, the Electrolyser will automatically reduce its production rate by increments of 10% until internal temperatures return to normal. Once ambient conditions return to normal, the Electrolyser will automatically up-rate to the production rate that allows for its normal internal temperatures.

# Volatge Derating

The steady voltage derating process ensures voltage stability and protects against overcurrent conditions by systematically checking and adjusting stack voltage and current levels. If overvoltage is detected, the system reduces stack current and sends a warning to the Cloud. Average stack current is calculated and validated, triggering an error if it falls below the minimum required value.

# Wi-Fi Button

Using this button you can switch the UCM OFF/ON.

This can be needed if:

Warning

Be sure that UCM switched ON while you enabling or removing Dryer Control Network (opens new window).

# Default Production Rate

Default Production Rate can be set using Enapter Mobile App (opens new window), Enapter Cloud (opens new window), Enapter Web GUI (opens new window), Enapter HMI (opens new window) or using EL 4.1 Modbus TCP Interface.

Default Production Rate will be saved after reboot or power cycle of the electrolyser.

Warning

Minimum production rate is limited to 60%. More information can be found in Enapter Knowledge Base (opens new window).

# Configuraion Backups

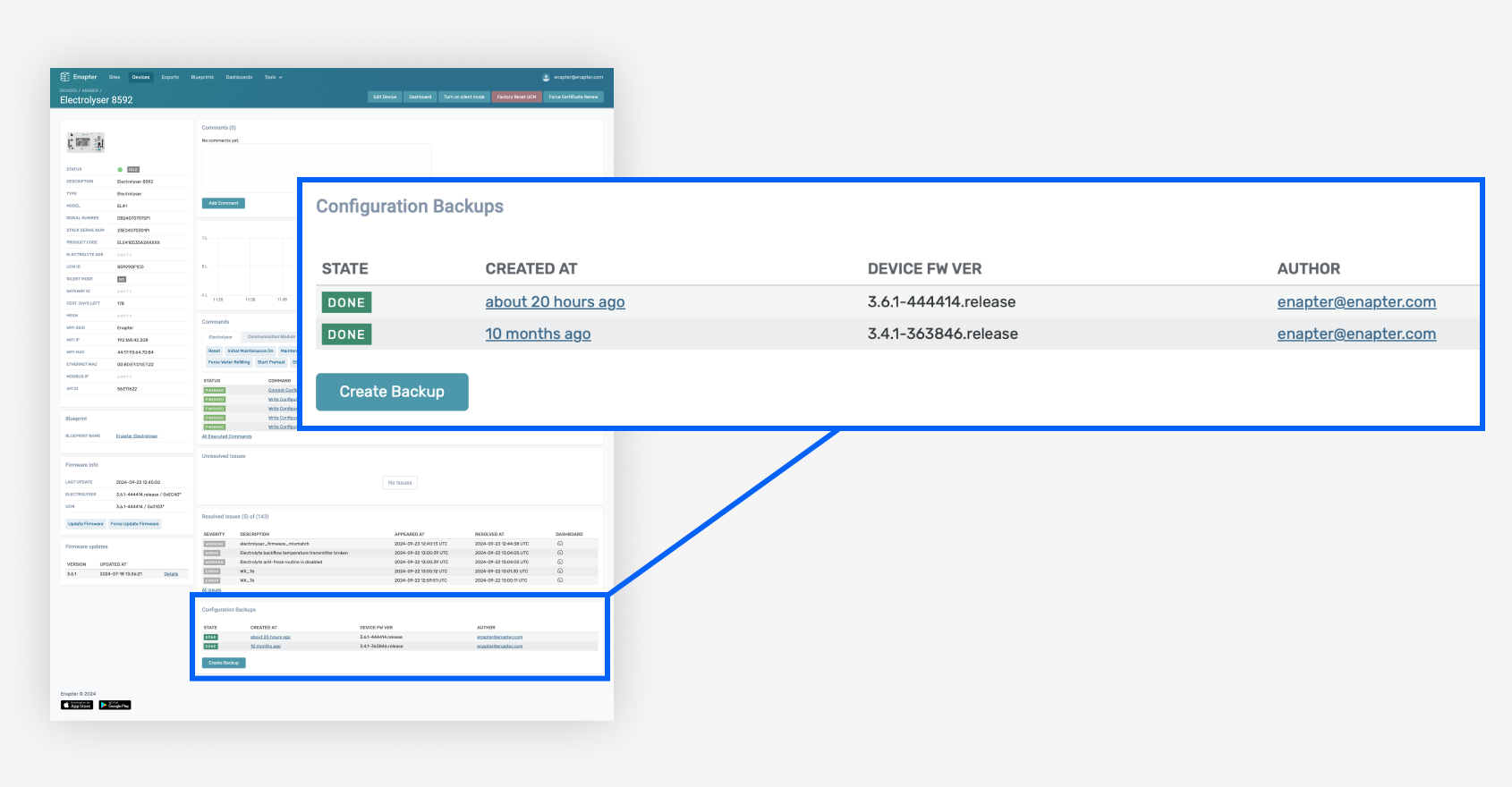

Configuraion Backups

This documentation provides an overview of the Configuration Backup feature, how to access it, and how to perform backup operations.

To access the Configuration Backups, navigate to the appropriate section on the Electrolyser's page in Enapter Cloud. Here, you will see a table summarizing the details of each configuration backup.

  • STATE: The current status of the backup.
  • CREATED AT: The timestamp indicating when the backup was created.
  • DEVICE FW VER: The firmware version of the device at the time of the backup.
  • AUTHOR: The email of the user who created the backup.

# Creating the Backup

  • Navigate to the appropriate section on the Electrolyser's page in Enapter Cloud.
  • Click the Create Backup button located below the table.
  • Wait for the process to finish to complete the backup.

# Configuration Restore

Note

Restoring a backup will overwrite the current configuration with the settings from the selected backup.

  • Navigate to the appropriate section on the Electrolyser's page in Enapter Cloud.
  • Click the timestamp under the CREATED AT column for the backup you wish to restore.
  • Click the Restore button on the top right of the screen.
  • Confirm the Restore.
  • Wait for the process to finish to restore from the backup.

# 🔧 Maintenance Functions

Electrolyser EL 4.1 is designed to provide many hours of service with minimal maintenance. Proper care and maintenance by qualified personnel help to maximize the operating hours of the unit. The Mobile Application, Enapter Cloud and Web GUI help to execute the refilling process.

Action Period Instruction
Inspect Physical Deterioration Once per year The unit should be inspected for obvious signs of physical damages.
Leakage Testing Once per year All hydrogen connections must be tested for leakages. Enapter recommends to use one of the techniques listed in Appendix I in Owner’s manual.
Electrolyte Replacement Once per year
(check the note below)		 For maintaining the device after commissioning, the internal tank must be emptied and new electrolyte must be filled into the device. For more information, please refer to the Electrolyte Draining section, and then follow the instructions for the The First Refilling of the electrolyte.
Cleaning Once per year When performing the routine maintenance processes and checks, the machine should be inspected and cleaned. Start by carefully using a vacuum cleaner (not included) to clean out the ventilation openings/grills. Afterward, use a damp cloth (no acids, aggressive or abrasive substances) to clean the outside of the unit.

Note

Depending on the frequency of use it is possible that the internal tank needs to be emptied and refilled more than once a year. By connecting your device to the Enapter Cloud (opens new window), it is possible to receive alerts when the stack’s voltage starts to increase – this typically means an electrolyte change is needed. The electrolyte change will help the electrolytic stack to return to a lower voltage, decreasing the power consumption of the device and increasing its lifetime.

# 🦺 Safety Functions

# Safety Heartbeat

This functionality increases safety in cases of loss of control by Enapter Gateway or any 3rd party Modbus master device.

Safety Heartbeat is a periodic signal generated by Enapter Gateway or any Modbus master device (i.e PLC) to indicate continuous connection with Electrolyser.

If Electrolyser does not receive the heartbeat in a time (heartbeat period) — the machine will shut down normally. Loss of the signal may happen when Gateway or PLC is powered off, or when there is connection issue.

# EL 4.1 Heartbeat

To activate Heartbeat on the EL 4.1 you need to change Heartbeat parameters. To do it use Modbus Holding Register #4600 (for Modbus master) or #4602 (for Enapter Gateway) and #4604 (for UCM).

Parameters:

Heartbeat_ucmtimeout_s - timeout for UCM Heartbeat in seconds. Default value = 0 (disabled).

Heartbeat_gatewaytimeout_s - timeout for Gateway Heartbeat in seconds. Default value = 0 (disabled).

Heartbeat_modbustimeout_s - timeout for Modbus Heartbeat in seconds. Default value = 0 (disabled).

These parameters can also be changed using Web GUI (opens new window). Navigate to Configuration bar and set Heartbeat timeouts.

# UCM Heartbeat

Warning

If you set UCM Heartbeat do not switch OFF the UCM using Wi-Fi Button.

# Gateway Heartbeat

How to activate Safety Heartbeat on the Gateway: please check Gateway Software Documentation.

# Modbus Heartbeat

How to activate Safety Heartbeat using Modbus protocol - please check the example of Writing Heartbeat Modbus Timeout.

# Safety Proof-Tests

SIF (safety integrated function) tests are needed to check that the device operates correctly.

You can run proof tests using Web GUI (opens new window), Enapter Mobile Application (opens new window), Enapter Cloud (opens new window) and Modbus TCP.

Warning

All SIF Proof-Tests can be executed only in IDLE or Maintenance states except SIF 5.

Running the SIF tests will result in a fatal error

If the test passes, turning the switch off and back on will remove the fatal error.

The list of SIF tests:

SIF test Description
SIF 1 Hydrogen Stack overpressure
SIF 3 Water leakage detection
SIF 4 Tank overpressure
SIF 5 Dilution Fan for hydrogen concentration
SIF 6 Safety Electronic Board temperature

# 💻 Firmware

# Firmware 3.7.0

# Previous Versions

Show more

# Firmware 3.6.1

# Firmware 3.6.0

# Firmware 3.5.0

# Firmware 3.4.2

# Firmware 3.4.1

# Firmware 3.4.0

# How to Update the Firmware?

Warning

Do not power off the device during the firmware update.

Note

During firmware update you will hear the buzzer. For more information please check Sound Indications Documentation.

# Updating the Firmware Using Enapter Cloud

  1. Make sure you have physical access to the device before starting the update process.
  2. Remove Dryer Control Network (opens new window) before updating the firmware.
  3. If the Site has the Enapter Gateway, it needs to be updated to version 1.8.9 or higher.
  4. Login into Enapter Cloud (opens new window).
  5. Open your Site and navigate to the Electrolyser page you want to update.
  6. At the left sidebar click on the Update Firmware button at the Firmware Info section.
  7. In opened window click on the Check for updates button.
  8. If you have the latest firmware version you will see You have the latest version.
  9. If update is available you will see Change Log.
  10. Click the Update button to update the firmware.
  11. Wait until the update is complete. This can take a while.

# Updating the Firmware Using Enapter Mobile App

  1. Make sure you have physical access to the device before starting the update process.
  2. Remove Dryer Control Network (opens new window) before updating the firmware.
  3. If the Site has the Enapter Gateway, it needs to be updated to version 1.8.9 or higher.
  4. Login into Enapter Mobile App.
  5. Open your Site and navigate to Electrolyser’s page you want to update.
  6. Navigate to the About tab (ℹ️) and click on the Firmware button.
  7. In opened tab click on the Check for Updates button.
  8. If you have the latest firmware version you will see You have the latest version.
  9. If update is available you will see Change Log.
  10. Click the Update button to update the firmware.
  11. Wait until the update complete. This can take a while.

# Updating the Firmware Using Electrolyser Web GUI

For more information please check Enapter Web GUI Documentation (opens new window).

# 🐞 Known Issues

# Known Hardware Bugs

No Bugs

# Known Software Bug

No Bugs

AEM Nexus
