Enapter's dryer is a hybrid temperature/pressure swing adsorption system increasing hydrogen purity to 99,999%. The dryer is rack-mountable in a standard 19” cabinet.

📖 Resources

	Datasheets	Owner's Manuals	Simplified PID	Quick Start Guides	Battery Limits	CAD Drawings	Dimensions	Certification
DRY 2.1	EN / CN / RU	EN / RU	PNG	EN	EN	3D STP	PDF	CE Certificate

📸 Images

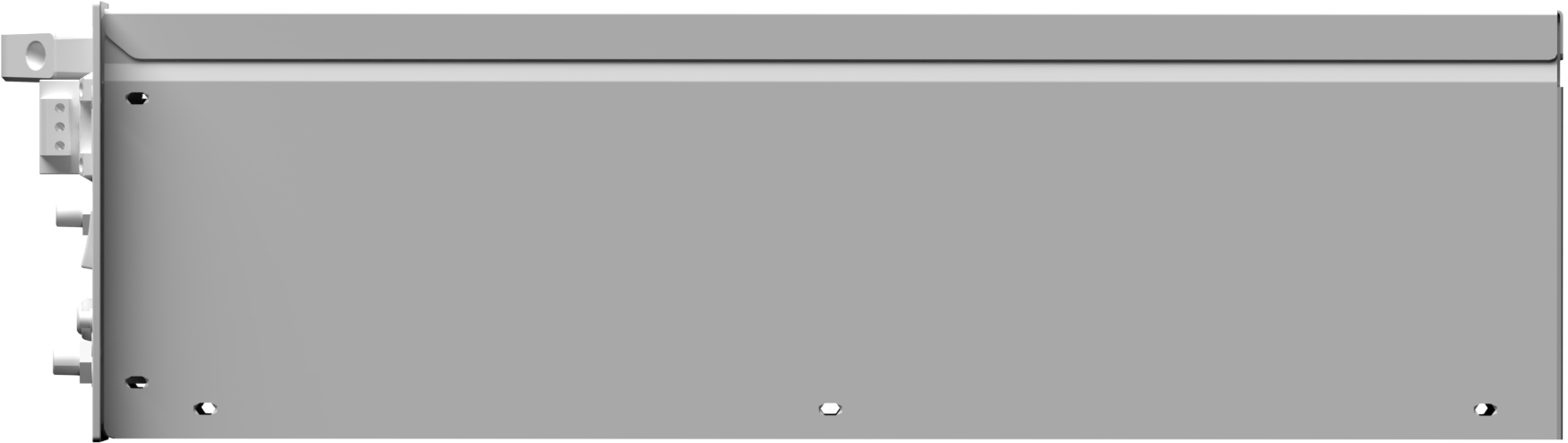

	Front	Back	Right Side	Isometric
DRY 2.1	Download	Download	Download	Download

🚦 Status LEDs Indications

Action	Description	LED
Power on	The device will turn on as soon as the required input voltage is supplied to the Dryer 2.1 and perform a startup self-check.	Red, yellow & green blink thrice
Stopped	The machine is not drying hydrogen, waiting for action.	Green off
Stand-by (Max pressure state)	The device is waiting for inlet pressure and will resume hydrogen drying automatically when the restart input pressure setpoint is reached.	Green blinking
Button press	When the start-stop button is pressed.	Red, yellow & green blink once
Factory Settings Reset	Simultaneously pressing the start-stop button and power up the device will activate Factory Settings Reset.	Running fire (each LED blinks after another)
Maintenance mode	The device is in maintenance mode (can only be enabled by Enapter technicians).	Yellow steady
Locate device	When locate device is enabled via remote control.	Red, yellow & green blinking
Warning	The system will continue to work The warning can be reported using remote monitoring and resolved automatically by the system.	Yellow blinks
Error	The system stops. Errors will be reported using remote monitoring. Some errors can be solved remotely.	Red blinks

Logic States

While operating the Dryer can be in the various logic states. CODE field is a numeric representation of the state available on the EL2.1 Modbus Interface. NAME field is a string representation of the state displayed in the Enapter Cloud and in the Enapter Web GUI interface. DESCRIPTION is the human-readable description of the state.

CODE	NAME	DESCRIPTION
257	WAITING FOR POWER	The dryer is waiting to be powered on
263	WAITING FOR PRESSURE	The dryer is waiting for a sufficient amount of inlet pressure
259	STOPPED BY USER	The dryer is not drying hydrogen because it has been stopped by the user. It is waiting for the next command desired by the user
260	STARTING	The dryer is starting up and checking which state to be in next
262	STANDBY	The dryer is waiting for the output pressure to decrease below the allowable threshold value
265	IDLE	The dryer is automatically stopped by DCN/IDCN, will be automatically started when at least 1 EL2.1 will become steady
513	DRYING 0	Block 0 is drying the hydrogen, while block 1 is being heated and regenerated
514	COOLING 0	Block 0 is drying the hydrogen, while block 1 is being cooled down after its regeneration
515	SWITCHING 0	Block 0 is drying the hydrogen while slowly pressurizing block 1, to prepare block 1 for the next drying cycle
516	PRESSURIZING 0	Both blocks dry the hydrogen to smoothly transition into the drying cycle of block 1
517	FINALIZING 0	Block 1 dries the hydrogen and block 0 prepares to be regenerated
769	DRYING 1	Block 1 is drying the hydrogen, while block 0 is being heated and regenerated
770	COOLING 1	Block 1 is drying the hydrogen, while block 0 is being cooled down after its regeneration
771	SWITCHING 1	Block 1 is drying the hydrogen while slowly pressurizing block 0, to prepare block 0 for the next drying cycle
772	PRESSURIZING 1	Both blocks dry the hydrogen to smoothly transition into the drying cycle of block 0
773	FINALIZING 1	Block 0 dries the hydrogen and block 1 prepares to be regenerated
1281	ERROR	The dryer has stopped due to an error. Errors will be reported using remote monitoring. Some errors can be solved remotely
1537	BYPASS	The dryer is manually disabled (usually due to a problem) and hydrogen gas can pass through both blocks
1793	BYPASS 1	The dryer is manually disabled (usually due to a problem) and hydrogen gas can pass through block 0
2049	BYPASS 2	The dryer is manually disabled (usually due to a problem) and hydrogen gas can pass through block 1
2305	MAINTENANCE	The device is in maintenance mode (can only be enabled by Enapter technicians)
2561	EXPERT	The dryer is in a special mode used to change dryer configurations (should only be enabled by Enapter technicians)
2817	FSR WAIT BEGIN	Factory Settings Reset was requested, waiting when LEDs will start blinking one after another
2818	FSR WAIT CONFIRM	Factory Settings Reset was requested, waiting when the button will be released
2819	FSR WAIT END	Factory Settings Reset was requested, waiting when the Factory settings Reset will be performed for each device, Dryer and UCM
2820	FSR DECLINED	Factory Settings Reset is declined for some reason
3073	IDCN WAIT START	IDCN creation was requested, waiting when LEDs will start blinking one after another
3074	IDCN WAIT CONFIRM	IDCN creation was requested, waiting when the button will be released
3075	IDCN BEGIN	IDCN creation was requested, waiting when the UCM module will start the pairing process
3076	IDCN COMMIT	IDCN creation was requested, waiting when the pairing process will be finalized by pressing the Start/Stop Dryer's button
3077	IDCN COMMIT ACK	IDCN creation was requested, waiting when the UCM module will finalize the pairing process
3078	IDCN WAIT SYNCED	IDCN creation was requested, waiting when the pairing process will be finished for each EL2.1 connected to the IDCN
3079	IDCN SYNCED	IDCN creation was requested, the pairing process is finished
3080	IDCN DECLINED	IDCN creation was requested, the pairing process is declined for some reason
3081	IDCN CANCEL	IDCN creation was requested, the pairing process is canceled for some reason, already connected devices will be disconnected
3328	OTA	FW update is in progress

⚙️ Factory Settings Reset

Factory Settings Reset (Hard Reset) allows to reset device to factory settings.

To enable Factory Settings Reset:

• Turn off the device.
• Press and hold the Start/Stop button and turn on the device.
• Hold the button. LEDs start blinking one after another.
• Release the button. All LEDs will blink once.
• Factory Settings Reset started. Device will be automatically rebooted. All LEDs blink trice.

If the Start/Stop button have not been released Dryer will be in Stand-by.

📈 Remote Monitoring and Control

Introduction

Dryer 2.1 comes with pre-installed UCM (Universal Communication Module) that allows users to monitor the device. Over-the-air updates ensure that the latest protocols and security fixes are supported.

Pre-installed UCM connects to the Enapter Gateway and send performance and error data to the Enapter Cloud. The data is stored in a time series database which displays it real-time on customizable dashboards.

Enapter's mobile application ensures quick and easy installation of any energy system. Users can manage the dryer via the mobile app and will receive push notifications to warn of energy system issues.

Network Requirements

WI-Fi Requirements

• 802.11a/b/g/n (2.4 GHz only)

• 802.12 WEP, WPA, WPA2 Personal (Pre-shared key)

• Wi-Fi client isolation must be disabled

Note

No captive portal or WPA2 Enterprise supported.

General Wi-Fi Note

The Enapter Cloud connection based on wireless communication and therefore the functionality can be affected with distance in between devices, obstructions between the devices and interference. Communication module inside the dryer works in station mode and utilizes Wi-Fi channel set in your infrastructure Wi-Fi router for used SSID. You are responsible to select the correct channel according to the local radio regulations.

Connecting your Dryer 2.1 to Wi-Fi

To connect the dryer to wireless networks, follow the steps in the iOS or Android Mobile Application guides below. Please note, the QR-code or preinstalled UCM's ID and PIN are required when connecting to Wi-Fi as well as credentials for the 2,4 GHz Wi-Fi network.

📗 Enapter iOS Mobile Application Guide

📗 Enapter Android Mobile Application Guide

During connection to Wi-Fi network the QR-code or preinstalled UCM's ID and PIN needed. The location for both of them is shown on pictures below.

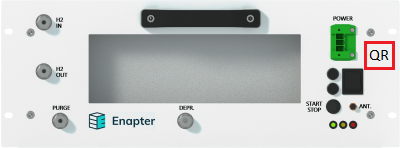

Front view:

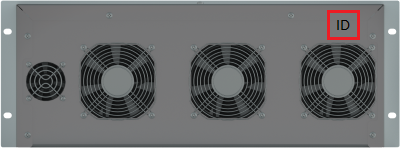

Rear view:

🕸️ Dryer Control Network

For more information please check Dryer Control Network (opens new window) Documentation.

⚠️ Events

Name	Condition	Component	Description	Troubleshooting
ERROR TT00	The sensor is broken or -18 °C > TT00 > 185 °C	TT00	Temperature of heater of cartridge 0 on drying block 0 has invalid value	Please contact Enapter Customer Support. The temperature cannot be measured.
ERROR TT01	The sensor is broken or -18 °C > TT01 > 185 °C	TT01	Temperature of heater of cartridge 1 on drying block 1 has invalid value	Please contact Enapter Customer Support. The temperature cannot be measured.
ERROR H100	TT00 is not increasing by 4 °C within 600 seconds when heating is enabled	H100	Temperature of heater of cartridge 0 on drying block 0 does not increase with required speed	Please contact Enapter Customer Support. The heater might be broken.
ERROR H101	TT01 is not increasing by 4 °C within 600 seconds when heating is enabled	H101	Temperature of heater of cartridge 1 on drying block 1 does not increase with required speed	Please contact Enapter Customer Support. The heater might be broken.
ERROR PS00	PS00 activated for 180 seconds during any Stand-by state PS00 deactivated for 600 seconds during Drying Block 0 or Cooling Block 0 PS00 activated for 600 seconds during Drying Block 1 or Cooling Block 1 PS00 deactivated for 60 seconds when there is less than 300 seconds until end of Switching Block 0 or Switching Block 1	PS00	Pressure switch on drying block 0 is activated	Please contact Enapter Customer Support. Regeneration line can be broken
ERROR PS01	PS01 activated for 180 seconds during any Stand-by state PS01 activated for 600 seconds during Drying Block 0 or Cooling Block 0 PS01 deactivated for 600 seconds during Drying Block 1 or Cooling Block 1 PS01 deactivated for 60 seconds when there is less than 300 seconds until end of Switching Block 0 or Switching Block 1	PS01	Pressure switch on drying block 1 is activated	Please contact Enapter Customer Support. Regeneration line can be broken
ERROR F100	Fan F100 RMP < 10 for more than 5 seconds	F100	Central ventilation fan does not work with required RPM	Fan F100 doesn't rotate with a required speed.
ERROR F101	Fan F101 RMP < 10 for more than 5 seconds	F101	Fan on drying block 0 does not work with required RPM	Fan F101 doesn't rotate with a required speed.
ERROR F102	Fan F102 RMP < 10 for more than 5 seconds	F102	Fan on drying block 1 does not work with required RPM	Fan F102 doesn't rotate with a required speed.
ERROR PT00	Voltage < 0.085 V	PT00	Input pressure has invalid value	Please contact Enapter Customer Support.
ERROR PT01	Voltage < 0.085 V	PT01	Output pressure has invalid value	Please contact Enapter Customer Support.
WARNING FW MISMATCH			UCM firmware and Dryer firmware have different versions	Please contact Enapter Customer Support.

Severity Levels

Code	Severity Level
F	Fatal Error
W	Warning

Routines

Code	Routine	Comment
P	Platform
H	Heartbeat

Error Codes

Note

Code and Name marked in bold are introduced in the current release of firmware.

CODE	SEVERITY	DISPLAY NAME	DESCRIPTION	Troubleshooting
FP_01	F	Invalid Configuration	Control Board configuration is invalid.	Please contact Enapter Customer Support.
WP_02	W	Sticky Button	The Start/Stop button is pushed. Please release power button.	Power button is pushed. Please release power button.
WH_01	W	Serial Connection Lost	Connection between UCM and Dryer was lost. Check serial connection between UCM and Dryer. Check Efuses were flashed (factory).	Please contact Enapter Customer Support.

💻 Firmware

Latest Version

• Firmware 3.8.0

Previous Versions

• Firmware 3.7.0
• Firmware 3.6.0
• Firmware 3.5.1
• Firmware 3.5.0
• Firmware 3.4.1
• Firmware 3.4.0
• Firmware 3.3.2
• Firmware 3.3.1
• Firmware 3.3.0
• Firmware 3.2.1
• Firmware 3.2.0
• Firmware 3.1.1
• Firmware 3.1.0
• Firmware 3.0.6
• Firmware 3.0.5
• Firmware 3.0.4
• Firmware 3.0.3
• Firmware 3.0.2
• Firmware 3.0.1
• Firmware 3.0.0

How to Update the Firmware?

Note

If Site has Enapter Gateway it needs to be updated to version 1.8.9 or higher.

Note

Make sure you have physical access to the device before starting the update process.

Warning

Do not power off the device during the firmware update.

Warning

Remove Dryer Control Network before updating the firmware.

To update the firmware the dryer must be connect to the Enapter Cloud (opens new window). How to do it please check this instruction.

Updating the Firmware Using Enapter Cloud

1. Login into Enapter Cloud (opens new window).
2. Open your Site navigate to the dryer's page you want to update.
3. At the left sidebar click on the Update Firmware button at the Firmware Info section.
4. In opened window click on the Check for updates button.
5. If you have the latest firmware version you will see You have the latest version.
6. If update is available you will see Change Log.
7. Click the Update button to update the firmware.
8. Wait until the update complete. This can take a while.

Updating the Firmware Using Enapter Mobile App

1. Login into Enapter Mobile App.
2. Open your Site and navigate to the dryer's page you want to update.
3. Navigate to the About tab (ℹ️) and click on the Firmware button.
4. In opened tab click on the Check for Updates button.
5. If you have the latest firmware version you will see You have the latest version.
6. If update is available you will see Change Log.
7. Click the Update button to update the firmware.
8. Wait until the update complete. This can take a while.

Updating the Firmware Using Electrolyser Web GUI

Note

To update the dryer's firmware using Electrolyser Web GUI (opens new window) the Electrolyser EL 2.1 must be updated to firmware 1.9.0 or above.

Important

Never upload firmware files received from untrusted source. Enapter is not responsible for any misbehavior or harm caused by untrusted firmware usage or violating update instructions. Contact Enapter Customer Support with any questions and to ensure that correct firmware files are used.

It is always recommended to update the dryer's firmware using Enapter Cloud and Mobile Application. However these types of update require stable internet connection. In cases when it is not possible to have your dryer connected to Enapter Cloud it is possible to update the dryer's firmware using Electrolyser Web GUI.

To perform update:

1. Save and unzip the received firmware package to local hard drive of your computer the way you have two files named fw_ucm_DRYER_X.X.X.ena and fw_cbd_DRYER_X.X.X.ena next to each other.
2. Open Web GUI (opens new window) of your electrolyser.
3. Navigate to Dryer Control Network tab.
4. Navigate to Device Details.
5. Click Update link. The Upload Firmware screen will appear.


6. Drag and drop or Select file with UCM firmware named fw_ucm_DRYER_X.X.X.ena from your local hard drive.
7. On the screen you will see the confirmation that firmware file is recognized by showing up the UCM Firmware version.
8. Press Upload button and wait the process to finish with Upload and Installation steps. It will take up to 10 minutes. Don't turn the electrolyser and the dryer off and don't close the browser.
9. Press Done after receiving the message UCM firmware was updated successfully.
10. Drag and drop or Select file with UCM firmware named fw_cbd_DRYER_X.X.X.ena.
11. On the screen you will see the confirmation that firmware file recognized by showing up the Control Board Firmware version.
12. Press Upload button and wait the process to finish with Upload and Installation steps. It will take up to 10 minutes. Don't turn the electrolyser and the dryer off and don't close the browser.
13. Press Done after you will receive the message Control Board was updated successfully.
14. To check the update was done successfully navigate to Dryer Control Network tab in the EL 2.1 Web GUI and check device details.

🆘 Self Service Troubleshooting Flowcharts

Enapter Dryer is modern hardware / software device. Embedded software monitors wide range of digital and analog sensors and control different actuators inside to ensure correct behavior and prevent failures. In case your Dryer trigger any kind of event you can try to troubleshoot them using our Self Service Troubleshooting Flowcharts.
